Repair Procedures: Removal
- Turn the ignition switch OFF, and then disconnecting the battery negative (-) terminal.
- Remove the front bumper assembly.
(Refer to FRONT BUMPER COVER ")

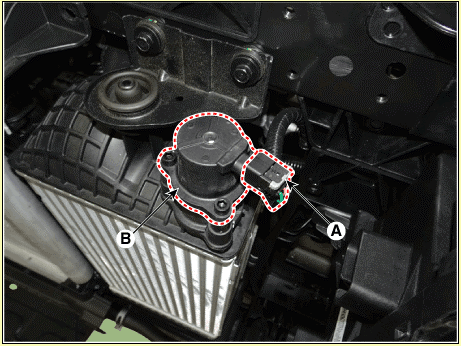

- Disconnect the RCV control solenoid valve connector (A).
- Remove the RCV control solenoid valve (B) after loosening the mounting bolt.
Tightening Torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
