Components And Components Location: Components

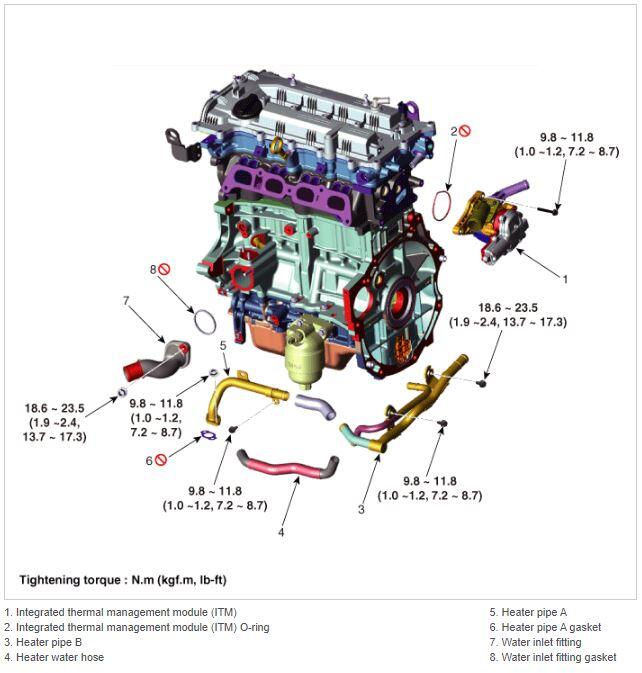

Fig 1: Thermal Management Module Motor Components Location With Torque Specifications
G16120100Courtesy of HYUNDAI MOTOR AMERICA
