Components And Components Location: Components

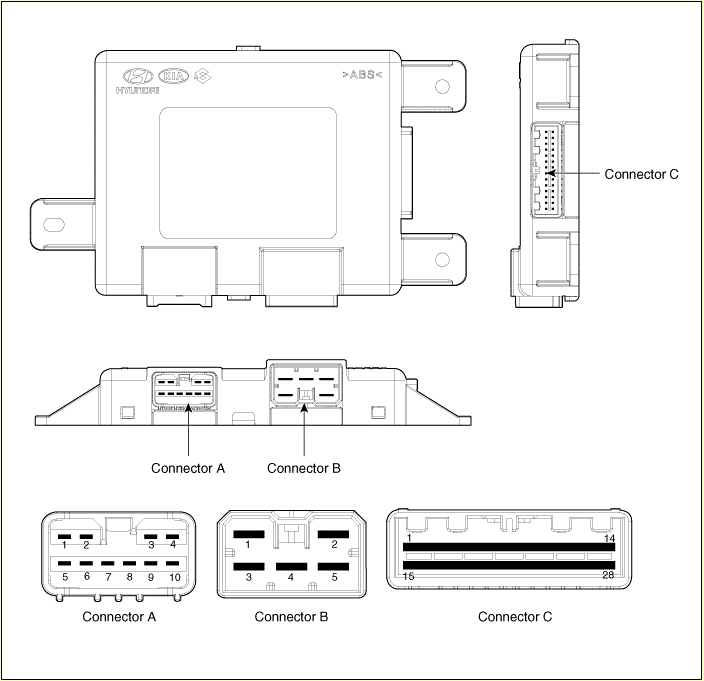

IMS INPUT AND OUTPUT PIN INFORMATION
| Pin | Connector A | Connector B | Connector C |
|---|---|---|---|
| 1 | - | B+ (Power) | Seat slide motor switch (Forward) |
| 2 | Seat recline motor (Forward) | Ground (Power) | Seat recline switch (Forward) |
| 3 | Seat height motor (Up) | B+ (Power) | Seat tilt switch (Up) |
| 4 | Seat slide motor (Forward) | - | Seat height switch (Up) |
| 5 | - | Ground (Power) | - |
| 6 | Seat recline motor (Backward) | B_CAN (High) | |
| 7 | Seat tilt motor (Up) | B_CAN (Low) | |
| 8 | Seat tilt motor (Down) | - | |
| 9 | Seat height motor (Down) | Lumbar support motor Def input | |
| 10 | Seat slide motor (Backward) | Seat slide sensor | |
| 11 | Seat tilt sensor | ||
| 12 | - | ||
| 13 | Seat position sensor power | ||
| 14 | IGN 1 | ||
| 15 | Seat slide switch (Backward) | ||
| 16 | Seat recline switch (Backward) | ||
| 17 | Seat tilt switch (Down) | ||
| 18 | Seat height switch (Down) | ||
| 19 | - | ||
| 20 | Ground | ||
| 21 | - | ||
| 22 | IMS switch position information input | ||
| 23 | Lumbar support motor Def input | ||
| 24 | Seat recline sensor | ||
| 25 | Seat height sensor | ||
| 26 | - | ||
| 27 | - | ||
| 28 | Battery (+) |
