Repair Procedures: Removal
Information
WARNING:
- Be sure to read and follow the "General Safety Information And Caution " before doing any work related with the high voltage system. Failure to follow the safety instructions may result in serious electrical injuries.
- Be sure to read and follow the "High Voltage Shut-Off Procedures " before doing any work related with the high voltage system. Failure to follow the safety instructions may result in serious electrical injuries.
CAUTION:
- Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
(Refer to General Information - "LIFT AND SUPPORT POINTS ")
- Shut off the high voltage circuit.
(Refer to Automatic Transaxle System - " HIGH VOLTAGE SHUT-OFF PROCEDURES ")
- Remove the engine room under cover.
(Refer to Engine Mechanical System - " ENGINE ROOM UNDER COVER ")
- Drain the engine coolant.
(Refer to Engine Mechanical System - " ENGINE COOLANT ")
- Drain the coolant of hybrid motor cooling system.
(Refer to Hybrid Motor System - " COOLANT ")
- Remove the Hybrid Power Control Unit (HPCU) assembly and tray.
(Refer to Hybrid Control System - " HPCU (HYBRID POWER CONTROL UNIT) ")
- Disconnect the electronic shift actuator connector (A).

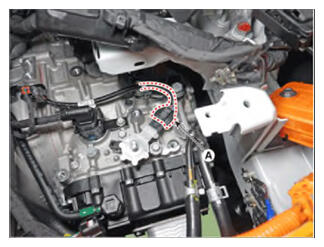

- Disconnect the wiring clip (A).

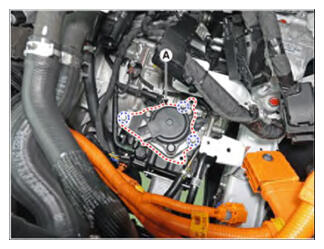

- Loosen the bolts and then remove the electronic shift actuator (A).

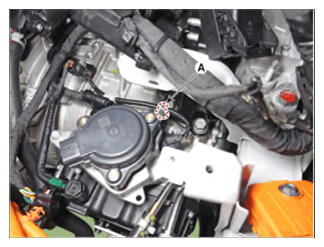

- Disconnect the position sensor connector (A).

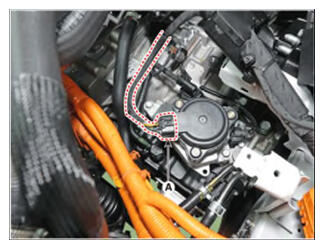

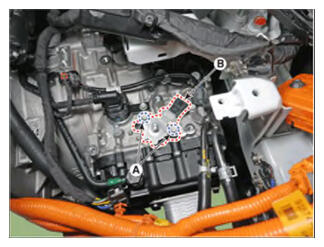

- Loosen the bolts and then remove the position sensor (A).
