Repair Procedures: Removal
- Turn ignition switch OFF and disconnect the battery negative (-) terminal.

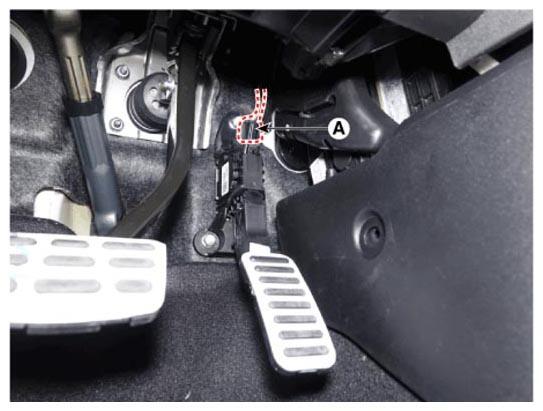

- Disconnect the accelerator position sensor connector (A).
 Courtesy of HYUNDAI MOTOR AMERICA
|

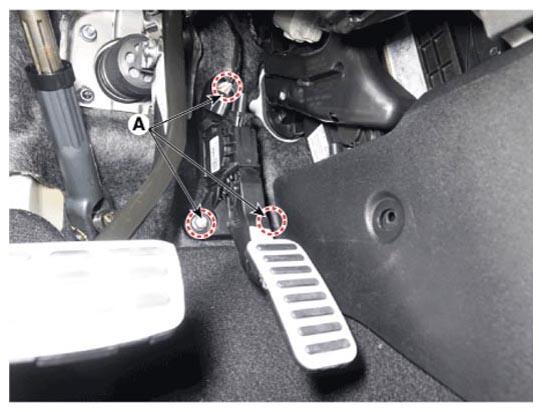

- Remove the accelerator pedal module after loosening the nut (A).
 Courtesy of HYUNDAI MOTOR AMERICA
|
