Repair Procedures: Removal
- Turn ignition switch OFF and disconnect the battery negative (-) terminal.

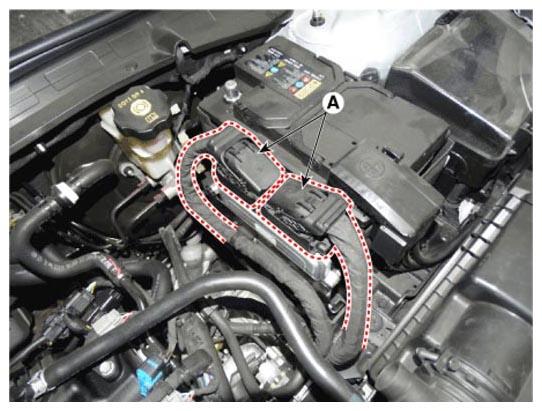

- Disconnect the ECM Connector (A).
 Courtesy of HYUNDAI MOTOR AMERICA
|

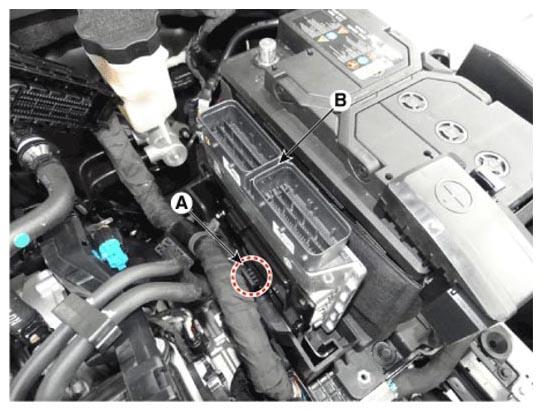

- Remove the ECM (B) after releasing the fixing hooks (A).
 Courtesy of HYUNDAI MOTOR AMERICA
|

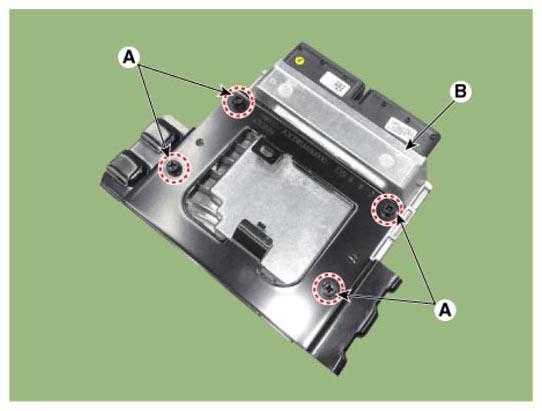

- Remove the ECM (B) after loosening the mounting bolts (A).
ECM Mounting bolt:
6.7 - 8.3 N.m (0.7 - 0.85 kgf.m, 5.1 - 6.1 lb-ft)
 Courtesy of HYUNDAI MOTOR AMERICA
|
