Repair Procedures: Installation
- Install in the reverse order of removal.
NOTE:
- Do not reuse the injector fixing clip.
- Do not reuse the mounting bolt.

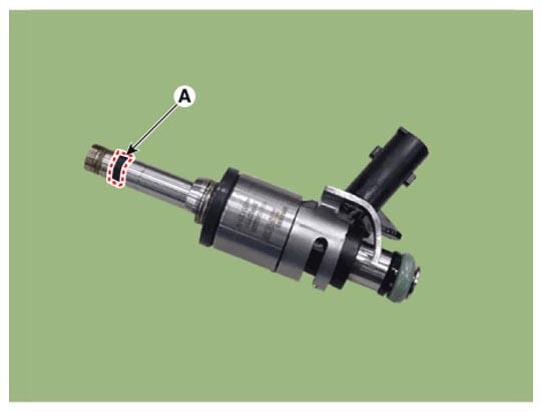

- Do not reuse the combustion seal (A).
 Courtesy of HYUNDAI MOTOR AMERICA
|
- Be careful not to apply oil to the combustion seal.

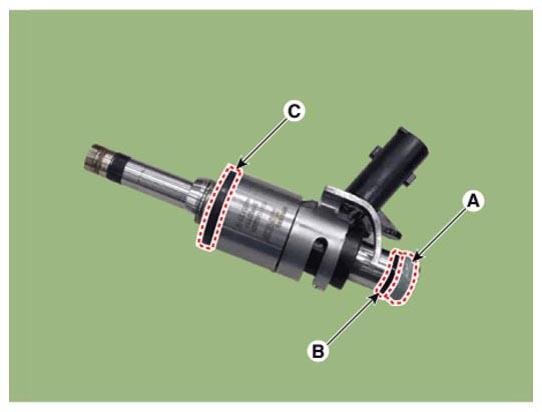

- Do not reuse the O-ring (A), support disc (B), rubber washer (C).
- When replacing the rubber washer, the steal plate part should be faced the cylinder installation part and the rubber plate part should be faced the injector body part.
 Courtesy of HYUNDAI MOTOR AMERICA
|
- Apply engine oil to the injector O-ring.
- When inserting the injector, be careful not to damage the injector tip
- Do not reuse the high fuel pipe.
