Hyundai
>>
2025
>>
Elantra N Line
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System - 1.6L (Except HEV)
>>
Integrated Thermal Management Module (ITM)
>>
Schematic Diagrams
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

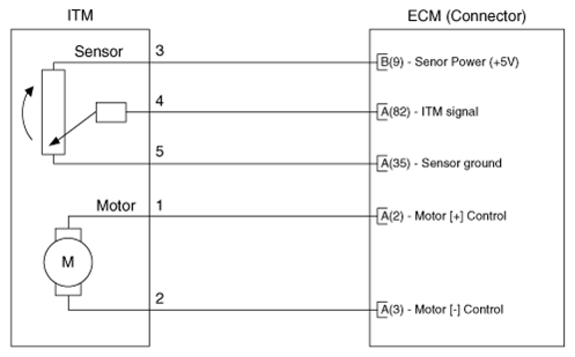

Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA

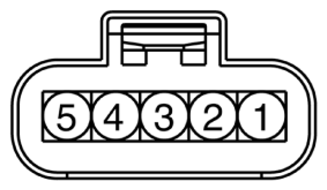

Harness Connector
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
