Components Location

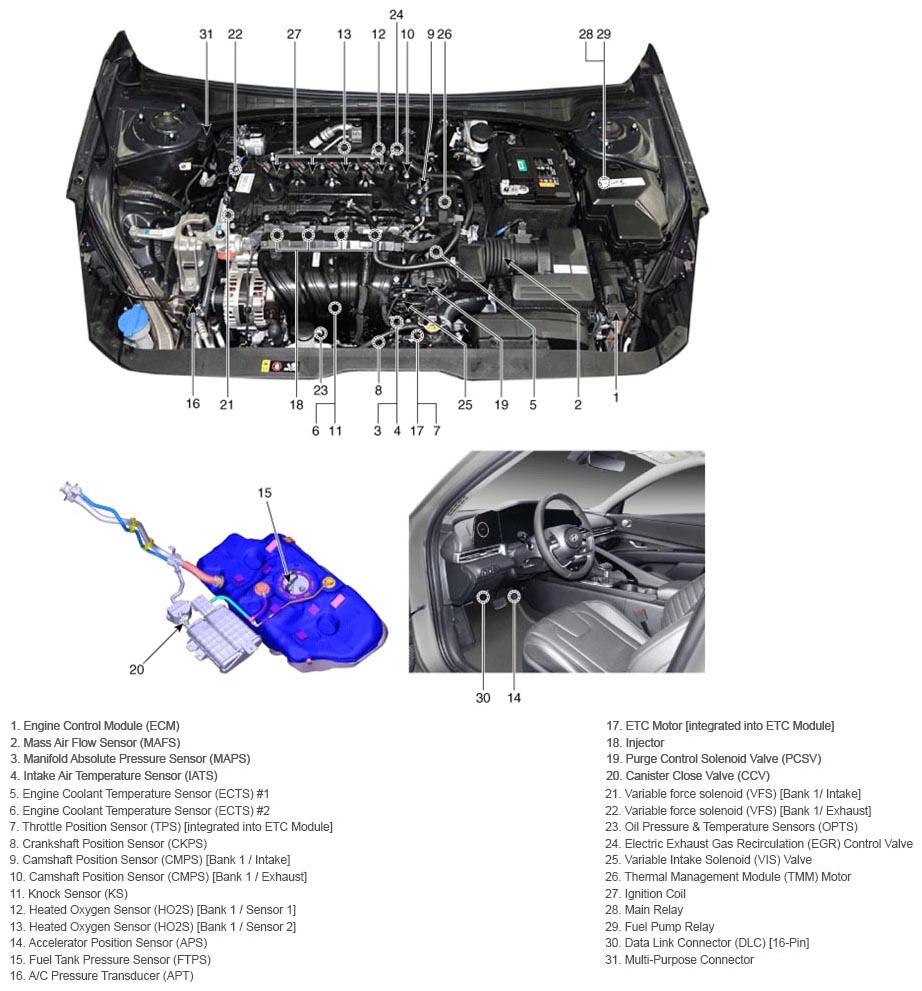

G16698679Courtesy of HYUNDAI MOTOR AMERICA

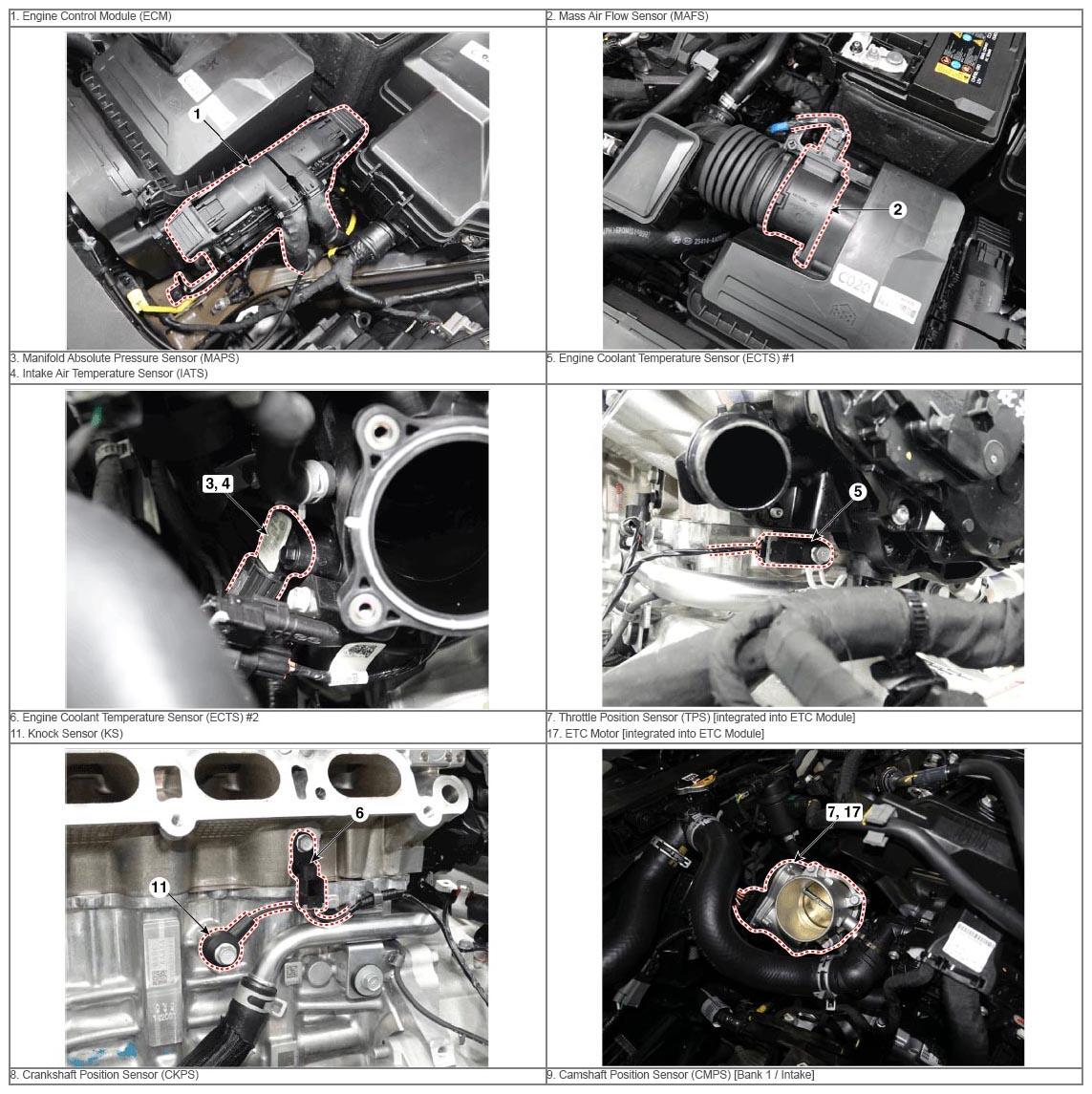

G16698680Courtesy of HYUNDAI MOTOR AMERICA

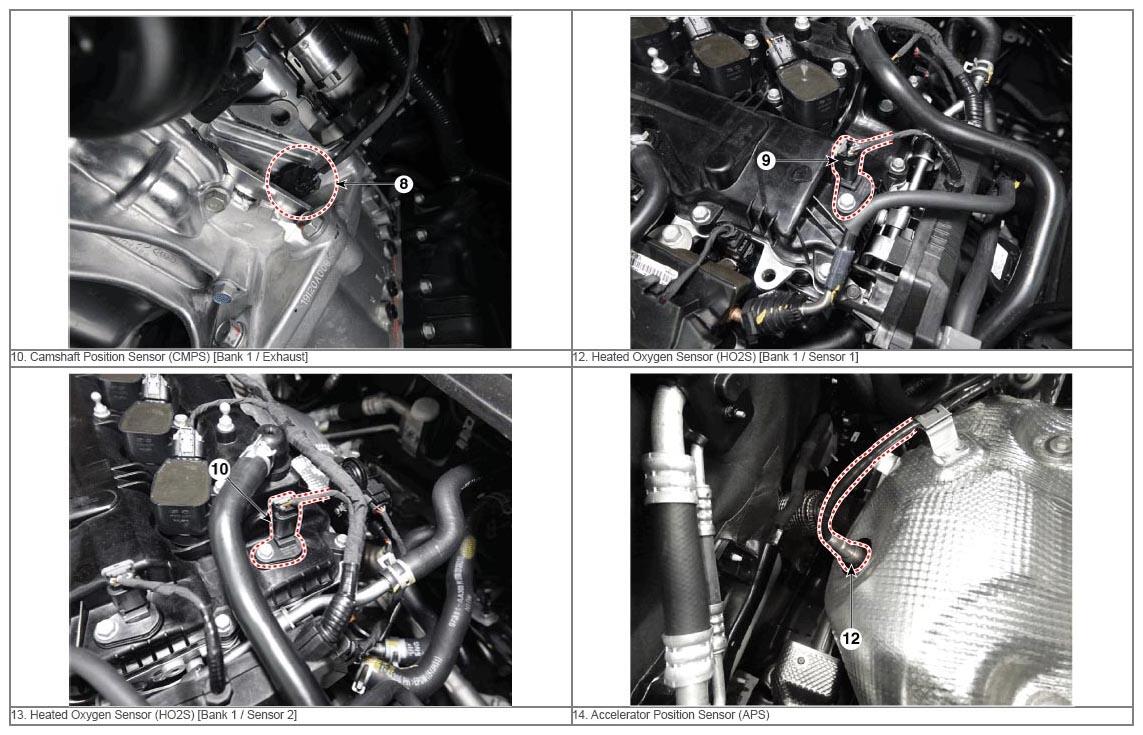

G16698681Courtesy of HYUNDAI MOTOR AMERICA

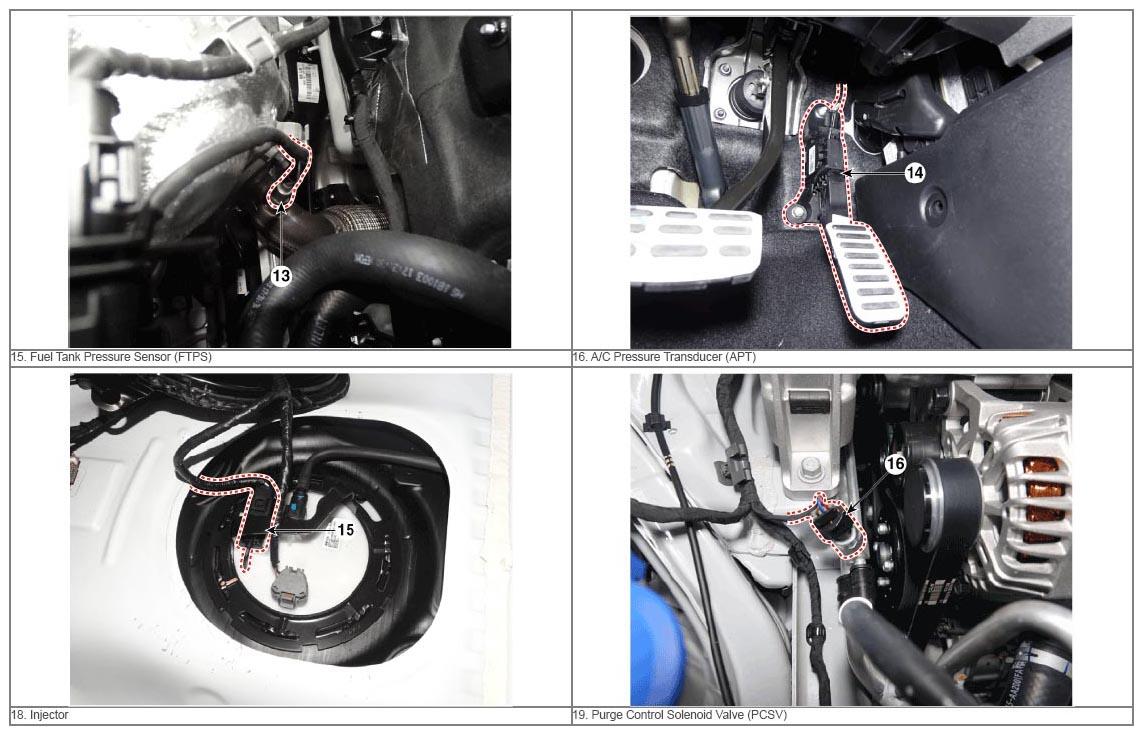

G16698682Courtesy of HYUNDAI MOTOR AMERICA

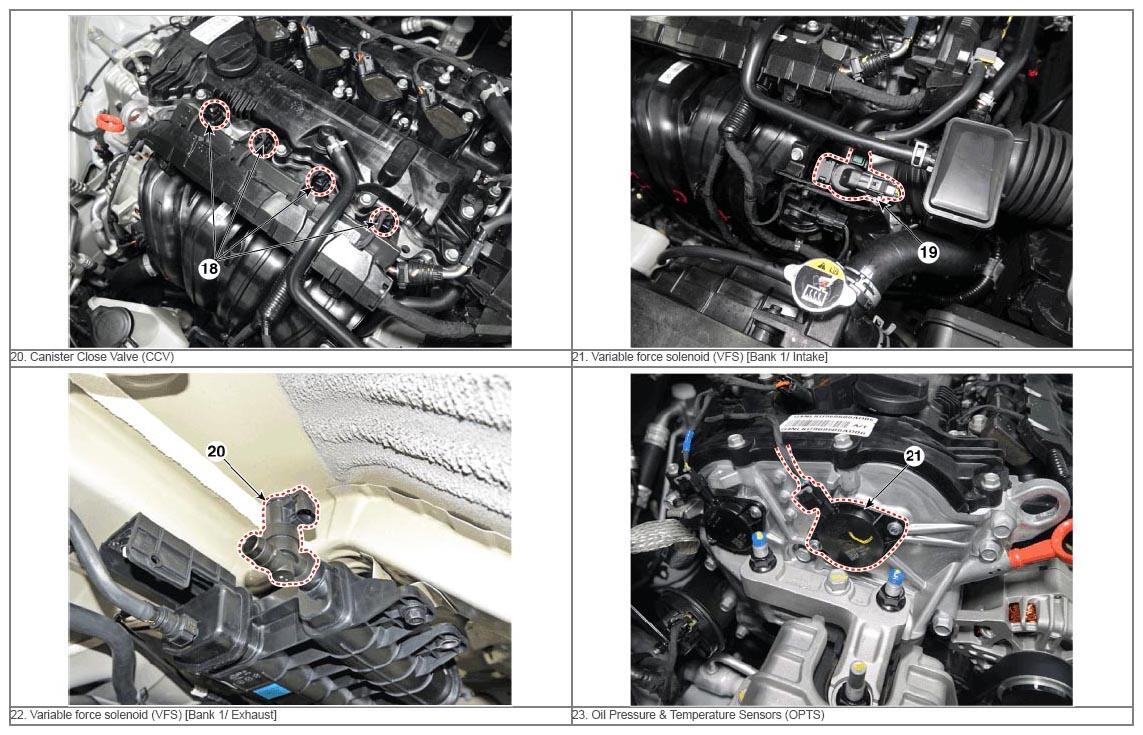

G16698683Courtesy of HYUNDAI MOTOR AMERICA

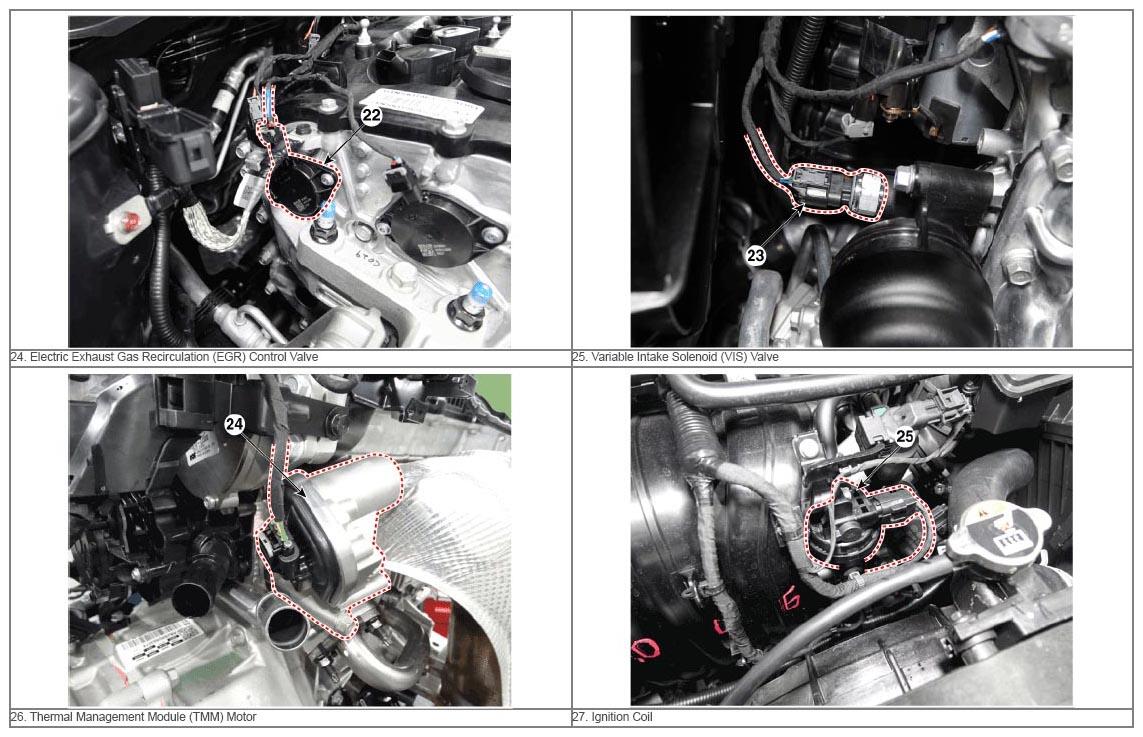

G16698684Courtesy of HYUNDAI MOTOR AMERICA

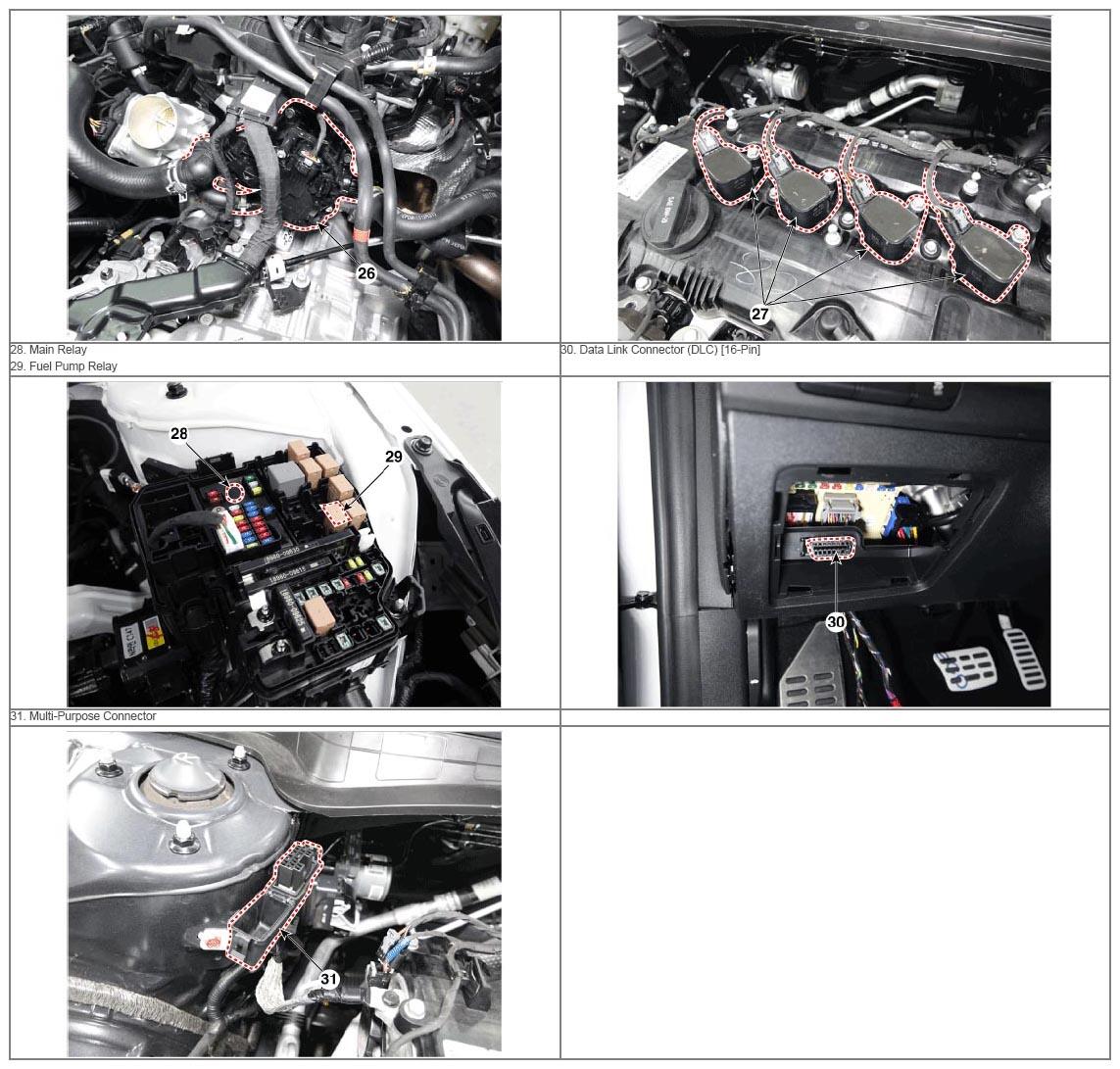

G16698685Courtesy of HYUNDAI MOTOR AMERICA
