Removal And Installation
- Disconnect the battery negative (-) terminal.
- Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")

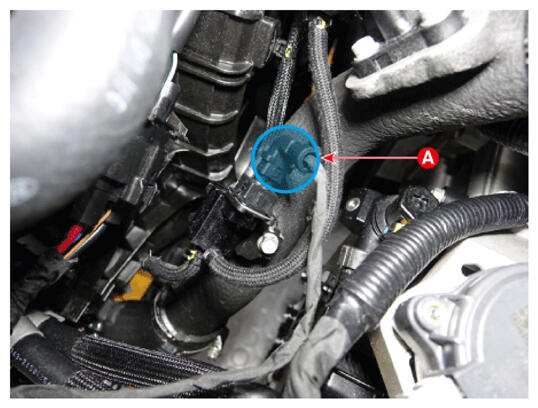

- Disconnect the RCV control solenoid valve connector (A).

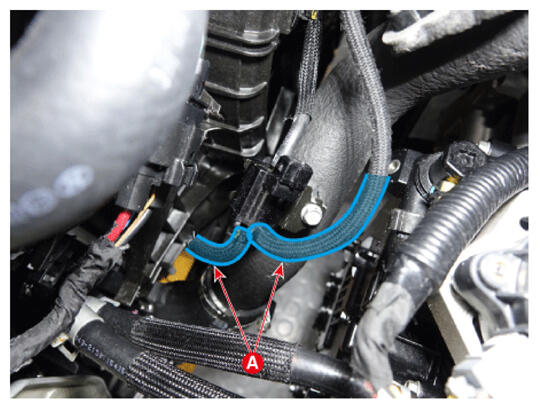

- Separate the vacuum hose (A) by releasing the clamp.

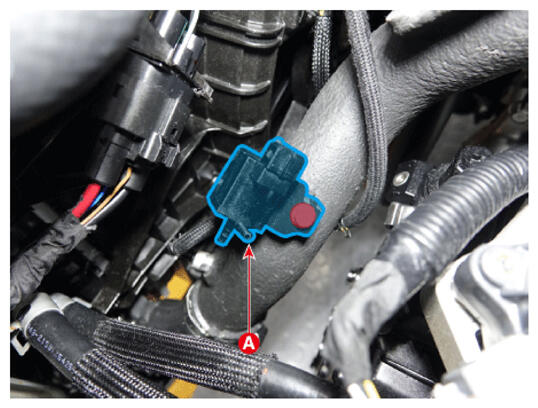

- Remove the RCV control solenoid valve (A) after removing the bolt.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 Ib-ft)
- Install in the reverse order of removal.
