Rail Pressure Sensor (RPS): Removal
- Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
NOTE:- When removing the fuel pump relay, a Diagnostic Trouble Code (DTC) may occur. Delete the code with the diagnostic tool after completion of "Release Residual Pressure in Fuel Line" work.
- Disconnect the battery negative (-) terminal.
- Remove the intake manifold.
(Refer to Engine Mechanical System - "INTAKE MANIFOLD ")

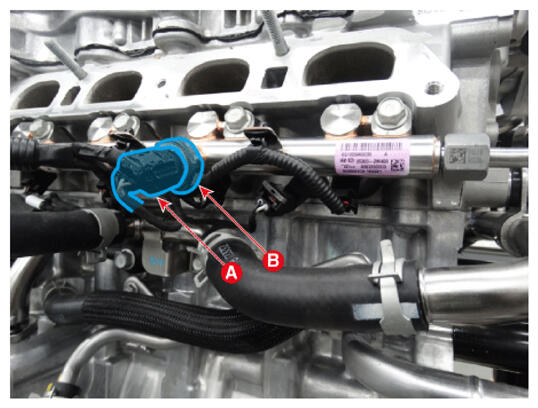

- Disconnect the Rail Pressure Sensor (RPS) connector (A).
- Remove the Rail Pressure Sensor (RPS) (B).
Tightening torque:
30.4 - 34.3 N.m (3.1 - 3.5 kgf.m, 22.4 - 25.3 Ib-ft)
