Removal And Installation

WARNING: This page is about a different car, the 2024 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Put on gloves to prevent hand injuries.
NOTE:
  • When removing using a remover, be careful not to damage the parts.
  • Take care not to bend or scratch the trim and panels.
  1. Disconnect the battery (-) terminal.
  2. Remove the center fascia panel.

    (Refer to Crash Pad - "CENTER FASCIA PANEL ")

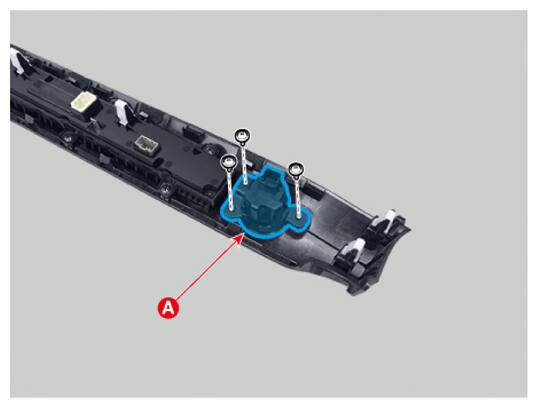

  3. Remove the SSB button (A), after removing the screws.
    G16548572Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.
