IAU-IBU Learning Method

WARNING: This page is about a different car, the 2024 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

If either one of the IAU unit, IBU unit is exchanged, both "IAU-IBU learning" of the additional features must be performed.

NOTE:

"IAU-IBU learning" learning" is executed in order.

CAUTION:

After maintenance, make sure to deliver the following to the customer:
- When "IAU-IBU Learning" is performed, information on existing smartphone keys and NFC card keys stored in the vehicle is deleted.
  (However the smart key information still remains. Use the smart key to start the engine.)
- Be sure to inform the customer that the smartphone key and NFC card key re-registration is required.
- To re-register the smart phone key, the driver needs to perform "Digital Key Reset" from his/her smart phone.
- Only reset the smart phone key for the vehicle you would like to re-register.
- NFC card key also needs re-registration. Use the card key you have previously used. (New card key is also available for registration.)

Turn the power switch "OFF" and connect the diagnostic tool.
Turn the power switch "ON" and the motor "OFF".

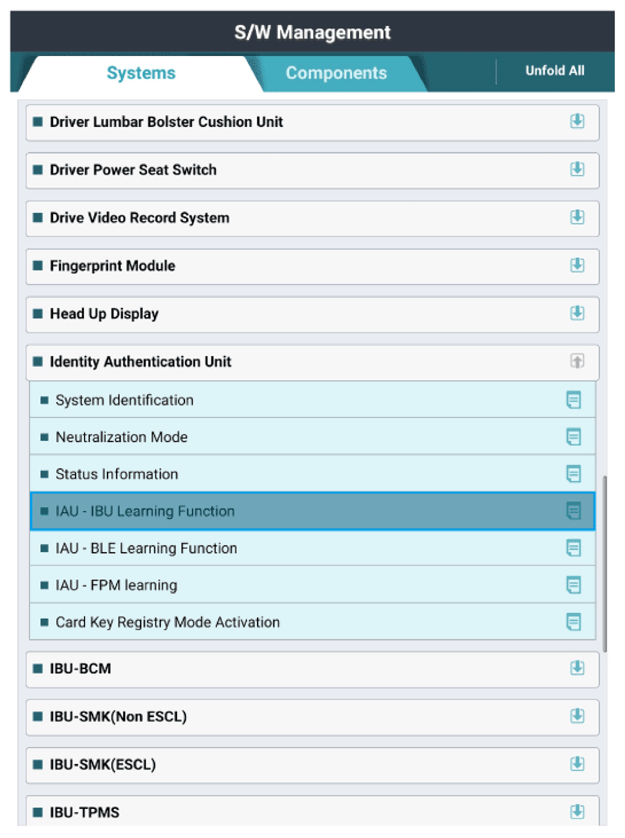

Select the 'S/W Management' and 'IAU-IBU Learning Function'

Courtesy of HYUNDAI MOTOR AMERICA
Select IAU-IBU learning and perform the procedure according to the required conditions.
