Removal And Installation
WARNING: This page is about a different car, the 2024 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- When removing using a remover, be careful not to damage the parts.
- Take care not to bend or scratch the trim and panels.
- Disconnect the battery (-) terminal.
- Remove the crash pad lower panel.
(Refer to Crash Pad - "CRASH PAD LOWER PANEL ")

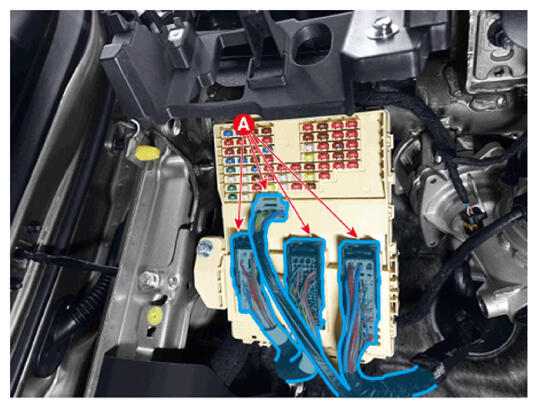

- Disconnect the powernet domain controller connector (A).

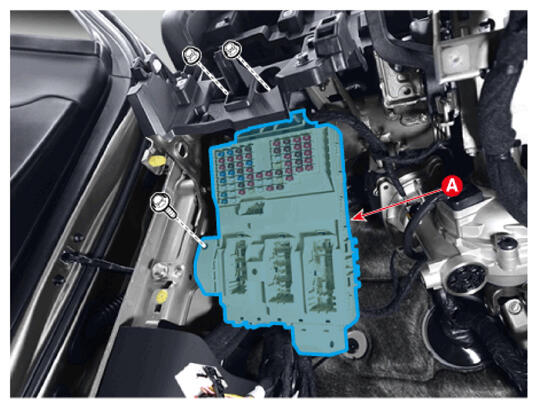

- Remove the powernet domain controller (A), after removing the nuts.

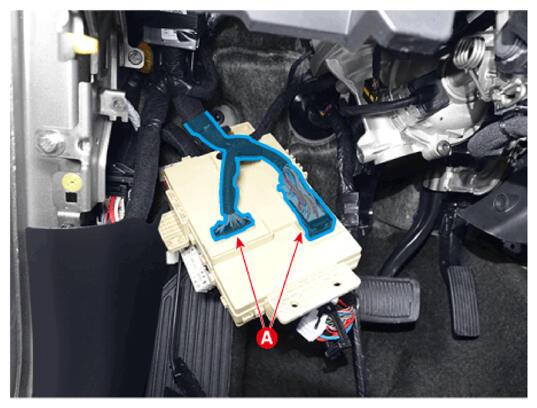

- Disconnect the powernet domain controller connector (A).

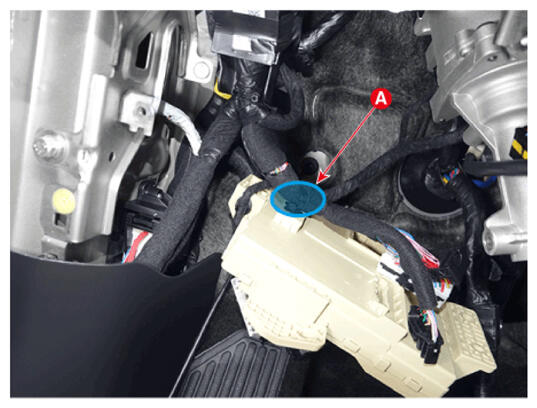

- Remove the wiring clip (A)
- Install in the reverse order of removal.NOTE:
- When replacing OTA controller, use the diagnostic device to update S/W. (If the S/W update is not complete, OTA update is not possible.)
(Refer to Security & Vehicle Ignition System - "OVER THE AIR (OTA) ")
- When replacing OTA controller, use the diagnostic device to update S/W. (If the S/W update is not complete, OTA update is not possible.)
