Diagnosis With Diagnostic Tool
WARNING: This page is about a different car, the 2024 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic tool. (Refer to DTC INDEX
)
- Each vehicle may have different diagnosis result.
- Self diagnosis: Checking failure and Diagnosis Trouble Code (DTC).
- Current data: Checking the system input/output data state.
- Actuation test: Checking the system operating condition.
- Software Management: Controlling other features including system option setting and Zero-Adjustment.
- Each vehicle may have different diagnosis result.
- If diagnose the vehicle by diagnostic tool, select "DTC Analysis" and "Vehicle".NOTE:
- Vehicle should be at "ACC ON" to properly operate diagnostic tool. (To prevent system errors)
- Be careful of the discharge of the battery when operating the diagnostic tool.

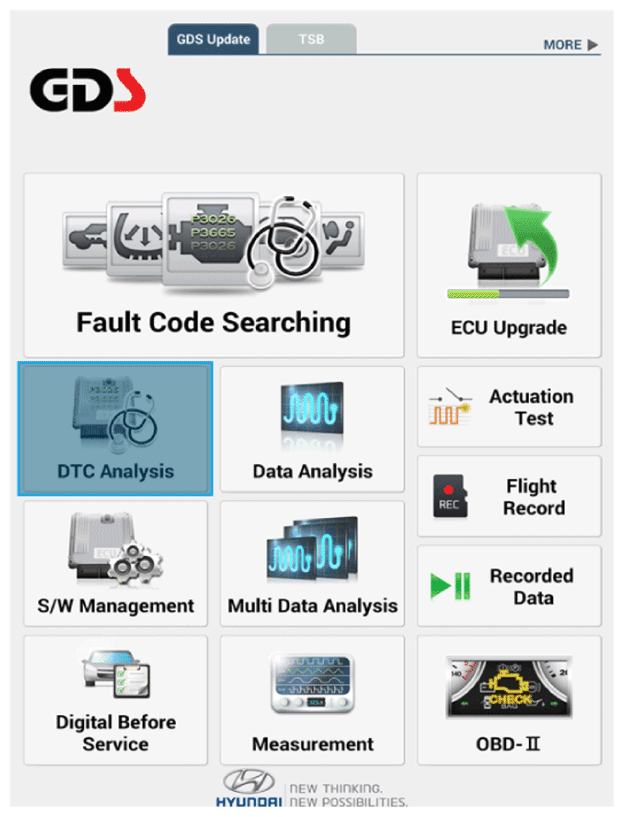

- Select the system that requires inspection from the "DTC Analysis" menu.
Information
- Follow the instruction from the diagnostic tool for additional procedure.

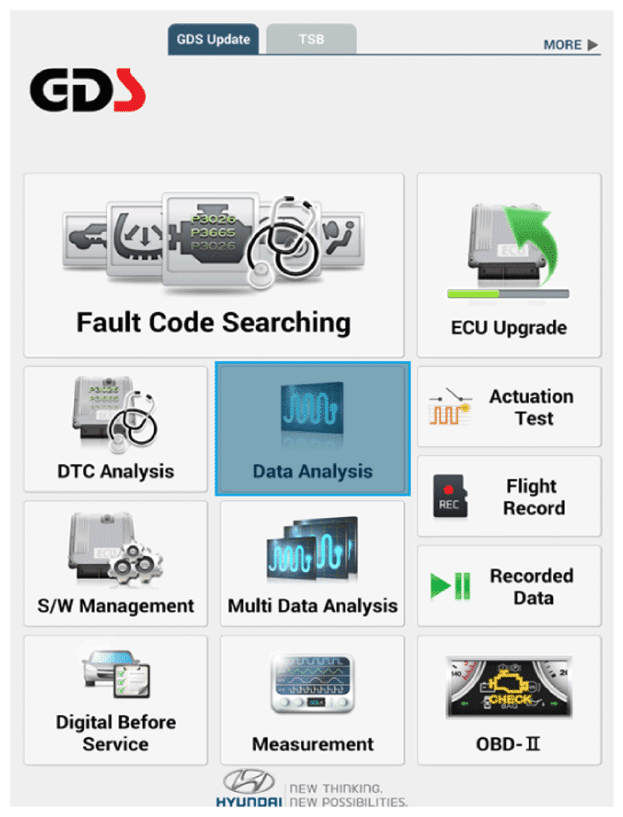

- Select desired system from "Data Analysis" to check the current status of input and output data.
- It allows to check the input and output value of the selected module.
Information
- Follow the diagnostic tool for additional direction
