Position Sensor: Installation
- Check that the shaft (A) is in the "N" position.

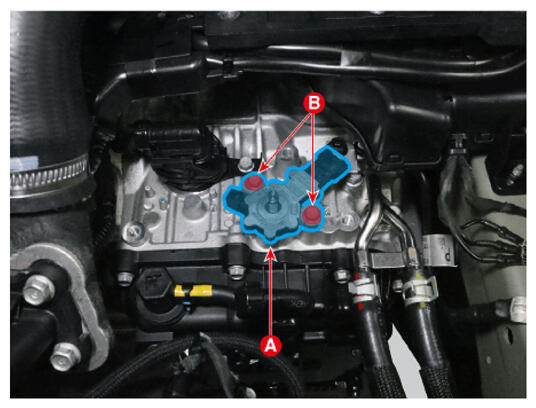

- Lightly tighten the bolts (B) after installing the position sensor (A).

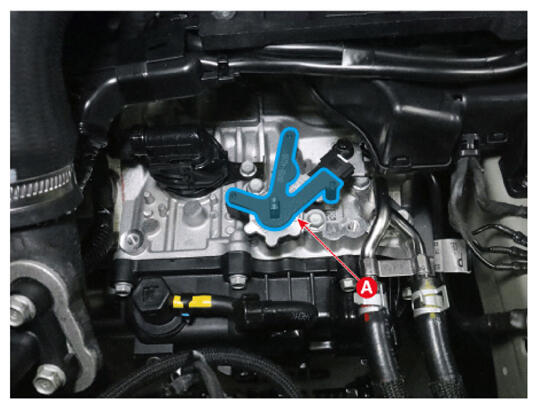

- Install the service special tool (09459-4G200) (A) from position sensor.

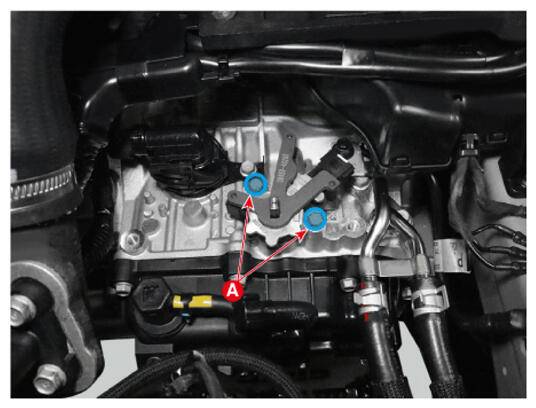

- Tighten the position sensor mounting bolts (A) with specified torque.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 28.9 - 33.9 lb-ft)
- Remove the service special tool (09459-4G200) (A).

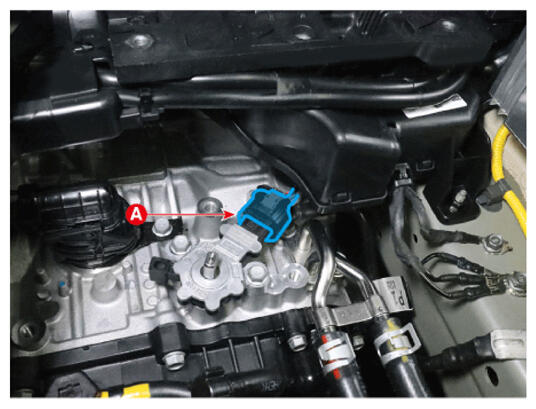

- Connect the position sensor connector (A).
- Install the electric shift actuator.
(Refer to Automatic Transaxle Control System - "ELECTRONIC SHIFT ACTUATOR ")
- Install the battery and battery tray.
(Refer to Engine Electrical System - "12V BATTERY ")
- Install the air duct and the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Check operation at each range of the position switch corresponding to each position (P, R, N, D) of SBW lever.
