Position Sensor: Removal

Information

• Keep the vehicle in a neutral parked state. (Perform the procedure below.)
  1. IG ON
  2. EPB OFF
  3. Auto hold OFF
  4. IG OFF
  5. Stay in the "D" position for more than 1 second.
     1. Disconnect the battery (-) terminal.
     2. Remove the electronic shift actuator.

        (Refer to Automatic Transaxle Control System - "ELECTRONIC SHIFT ACTUATOR ")

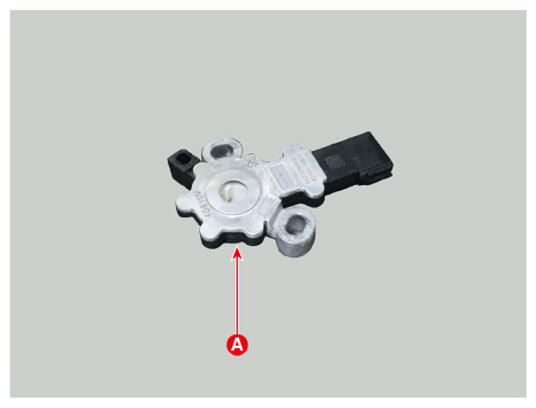

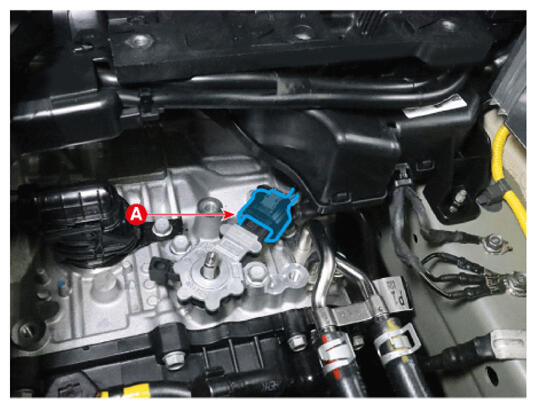

     3. Disconnect the position sensor connector (A).

        Courtesy of HYUNDAI MOTOR AMERICA

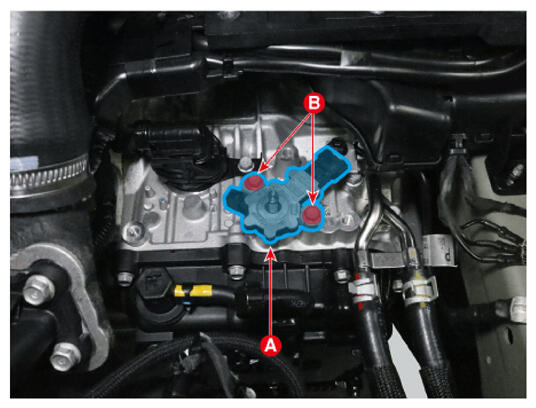

     4. Remove the position sensor (A) after removing the bolts (B).
