Transaxle Control Module (TCM): Installation
- Install in the reverse order of removal.

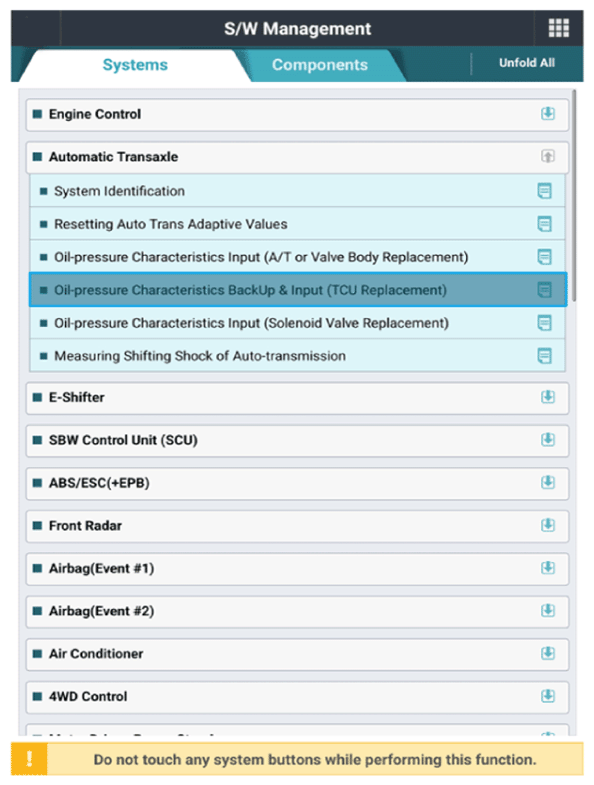

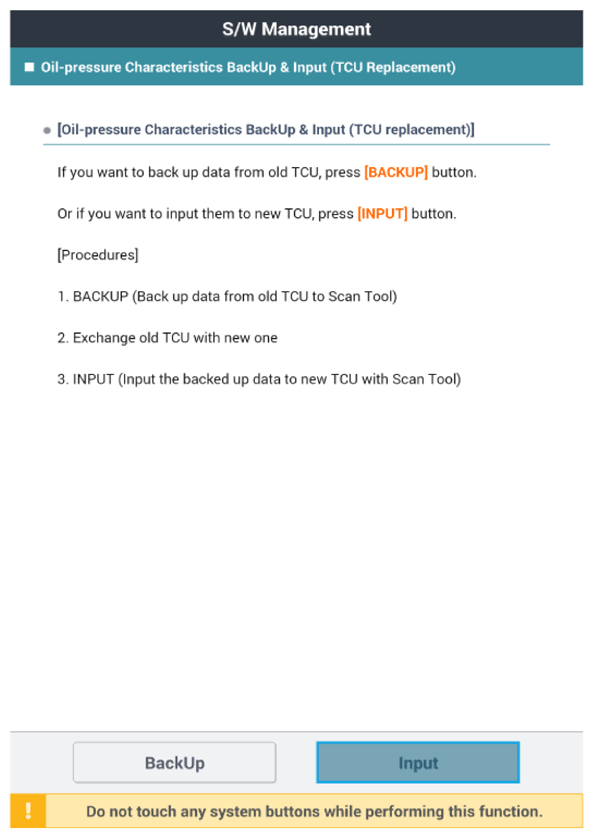

- Perform the oil pressure characteristics input procedure using the diagnostic tool when replacing with a new TCM.
NOTE:
- Perform TCM learning after replacing the transaxle to prevent slow transaxle response, jerky acceleration and jerky startup.
(Refer to Automatic Transaxle Control System - "ADJUSTMENT ")
