Transaxle Control Module (TCM): Removal

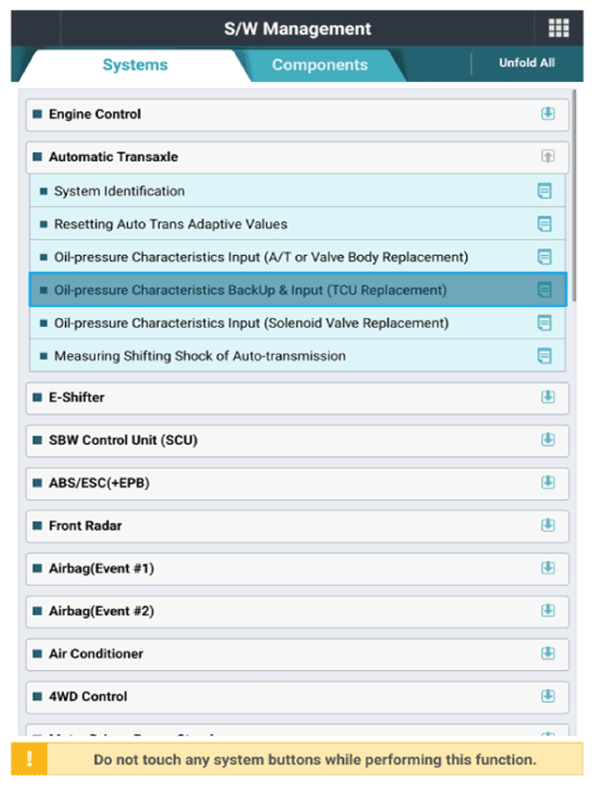

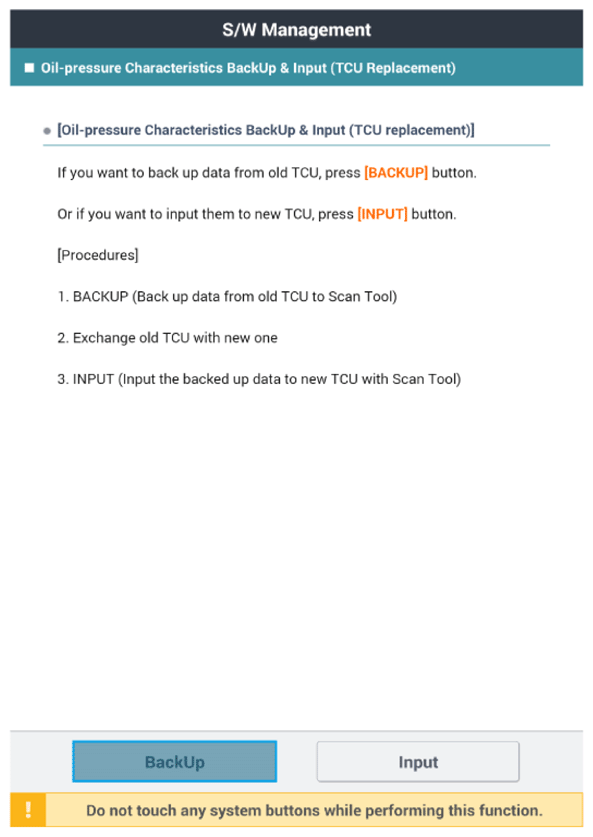

- Perform the oil pressure characteristics backup procedure using the diagnostic tool when replacing with a new TCM
- Disconnect the battery (-) terminal.
- Remove the front wheel guard [LH]
(Refer to Body (Interior/Exterior/Electrical) - "WHEEL GUARD ")

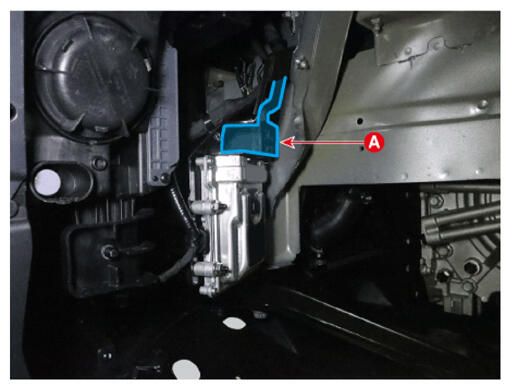

- Disconnect the TCM connector (A).

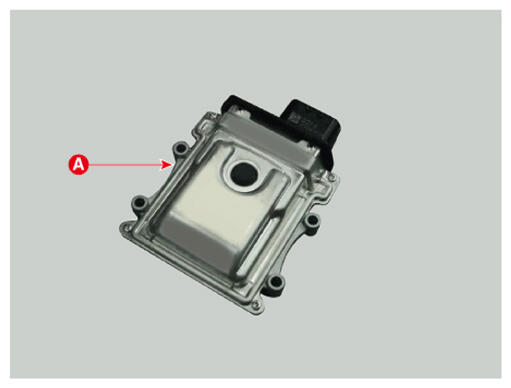

- Removing the TCM (A) after removing the nuts.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
