Control Units

CONTROL UNITS LOCATION

Component Location
ABS Control Unit Behind right side kick panel.
A/T Shift Lock Control Unit Behind left side of kick panel.
Automatic Seat Belt Control Unit Behind center console.
ECCS Control Unit Behind center console.

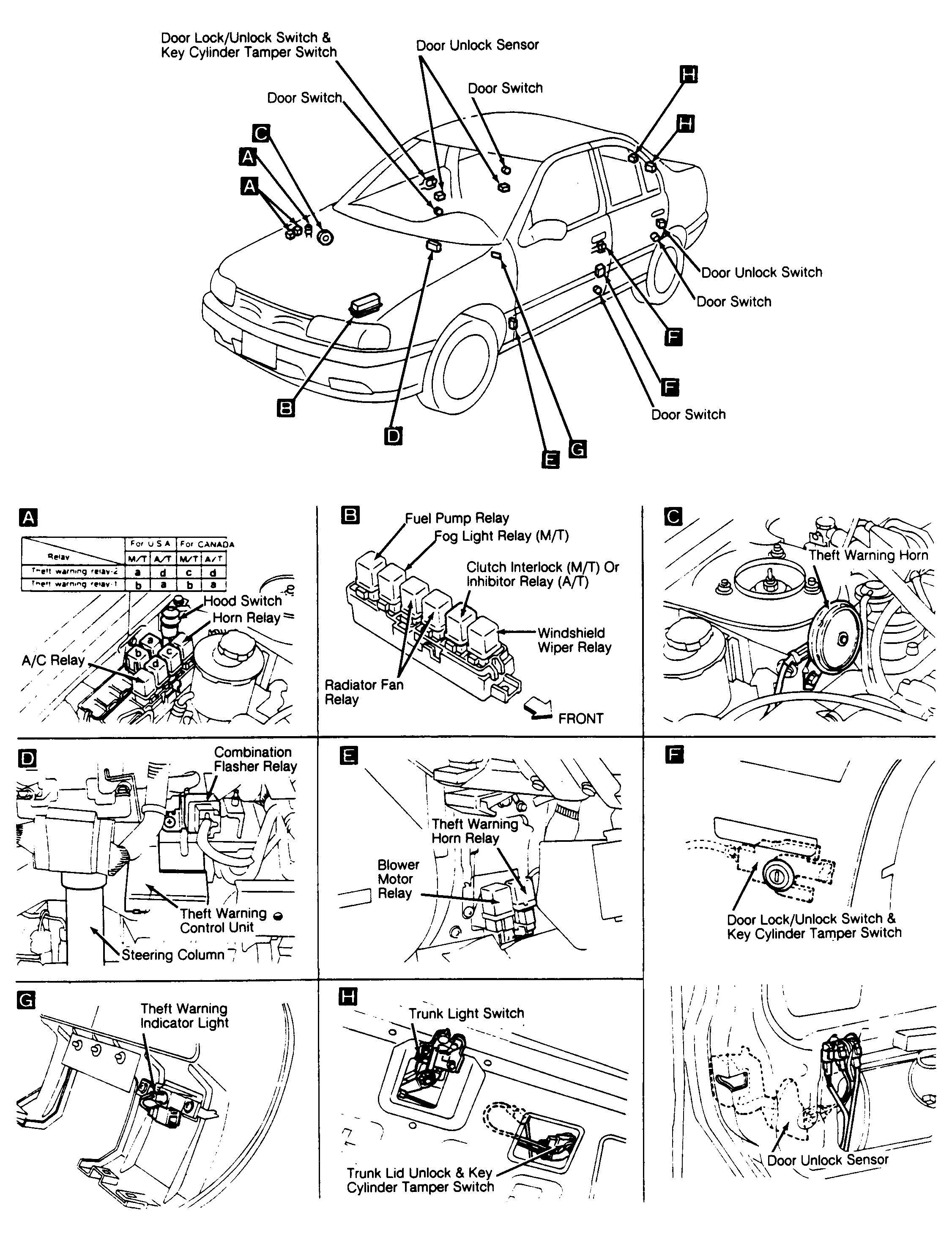

Theft Warning Control Unit Behind left side of dash, above steering column. See Figure .
