Throttle Motor

CAUTION: To prevent accidental operation of secondary throttle valve and possible injury, disconnect throttle valve motor connector before touching throttle valve.

Do not loosen or tighten painted screws. For removal and installation of throttle motor, see Fig 1 and Fig 2 .

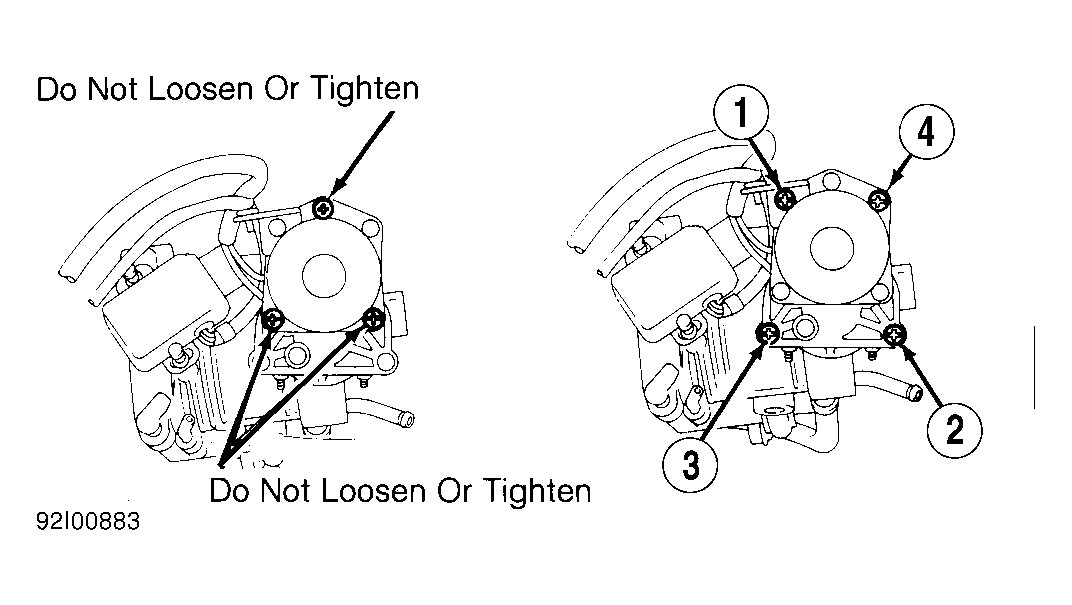

Fig 1: Throttle Motor Mounting Screws & Tightening Sequence

Courtesy of NISSAN MOTOR CO., U.S.A.

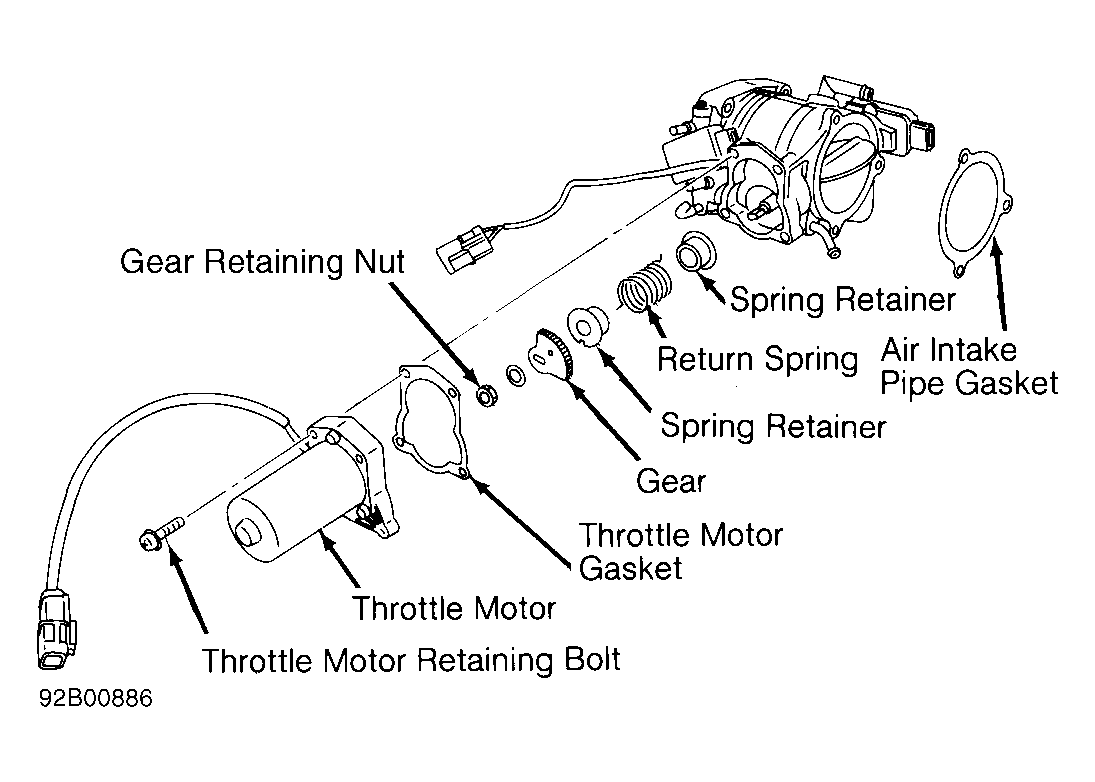

Fig 2: Exploded View Of Throttle Motor Assembly

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Before starting Traction Control System diagnostic checks, road test vehicle and confirm customer complaint.
