Code 35: Exhaust Gas Temperature Sensor

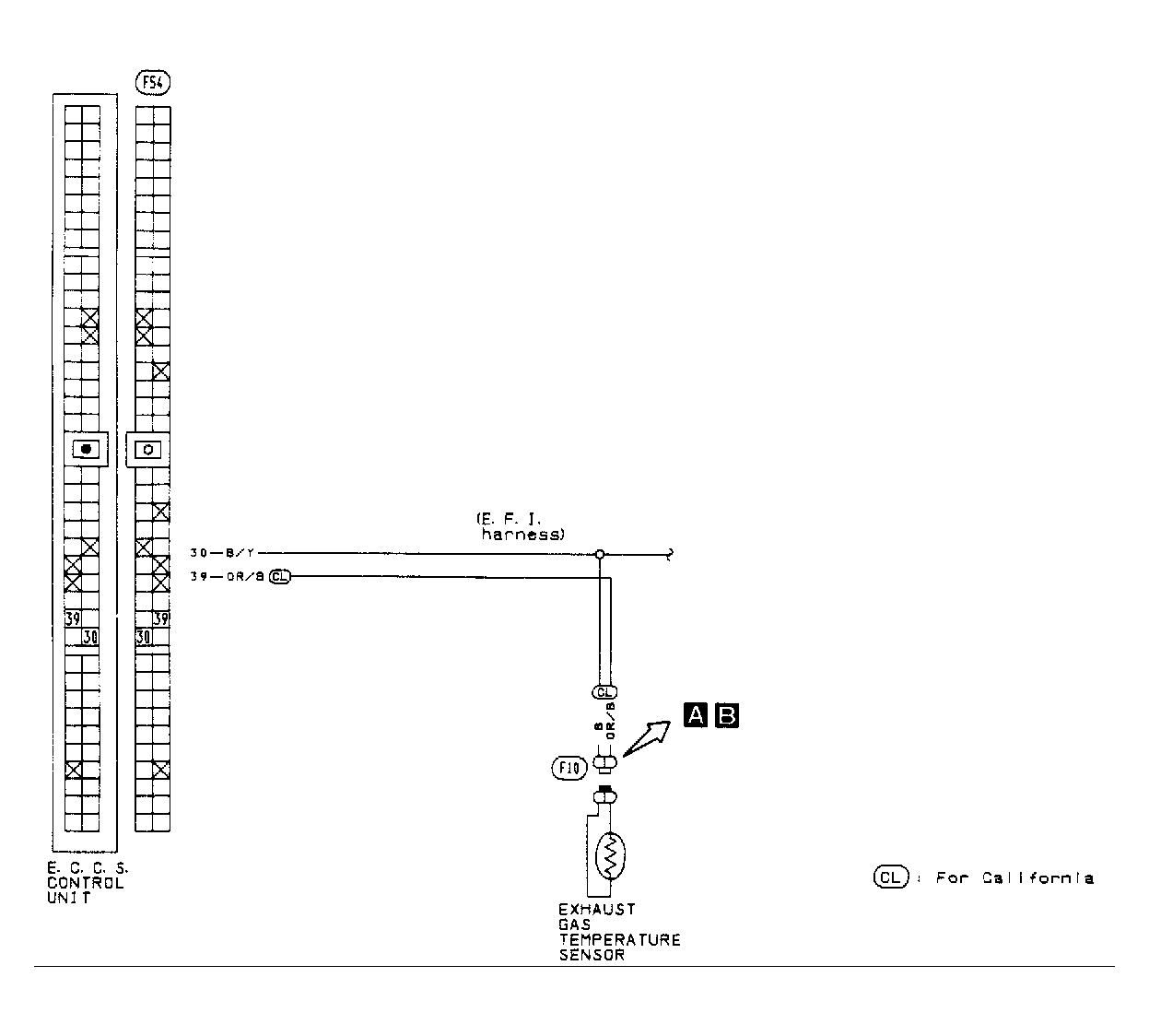

Fig 1: Code 35: Exhaust Gas Temp. Sensor Circuit Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

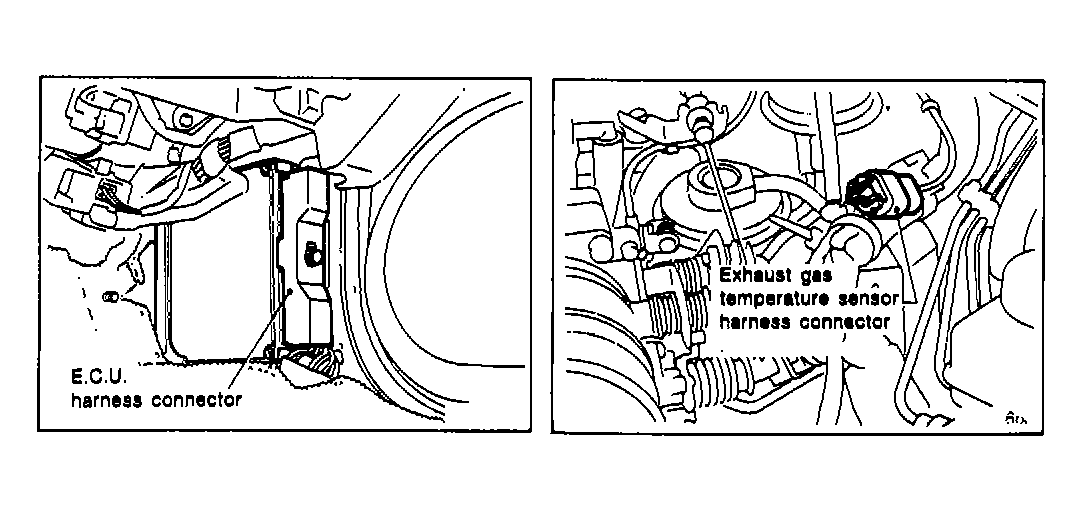

Fig 2: Code 35: Exhaust Gas Temp. Sensor & ECU Harness Location
Courtesy of NISSAN MOTOR CO., U.S.A.

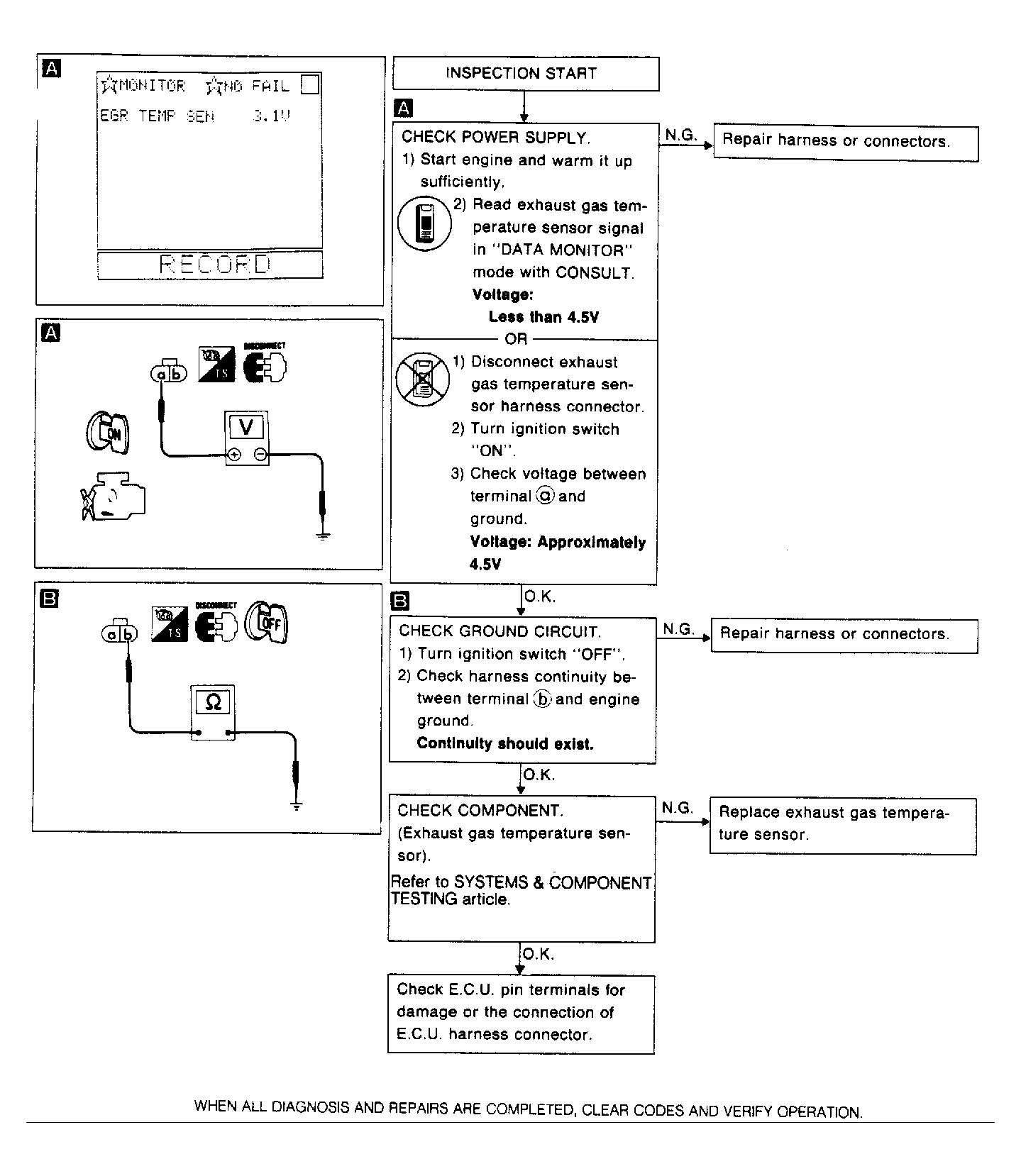

Fig 3: Code 35: Exhaust Gas Temp. Sensor Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
