Code 54: Automatic Transmission Signal
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Code 54: Automatic Transmission Signal

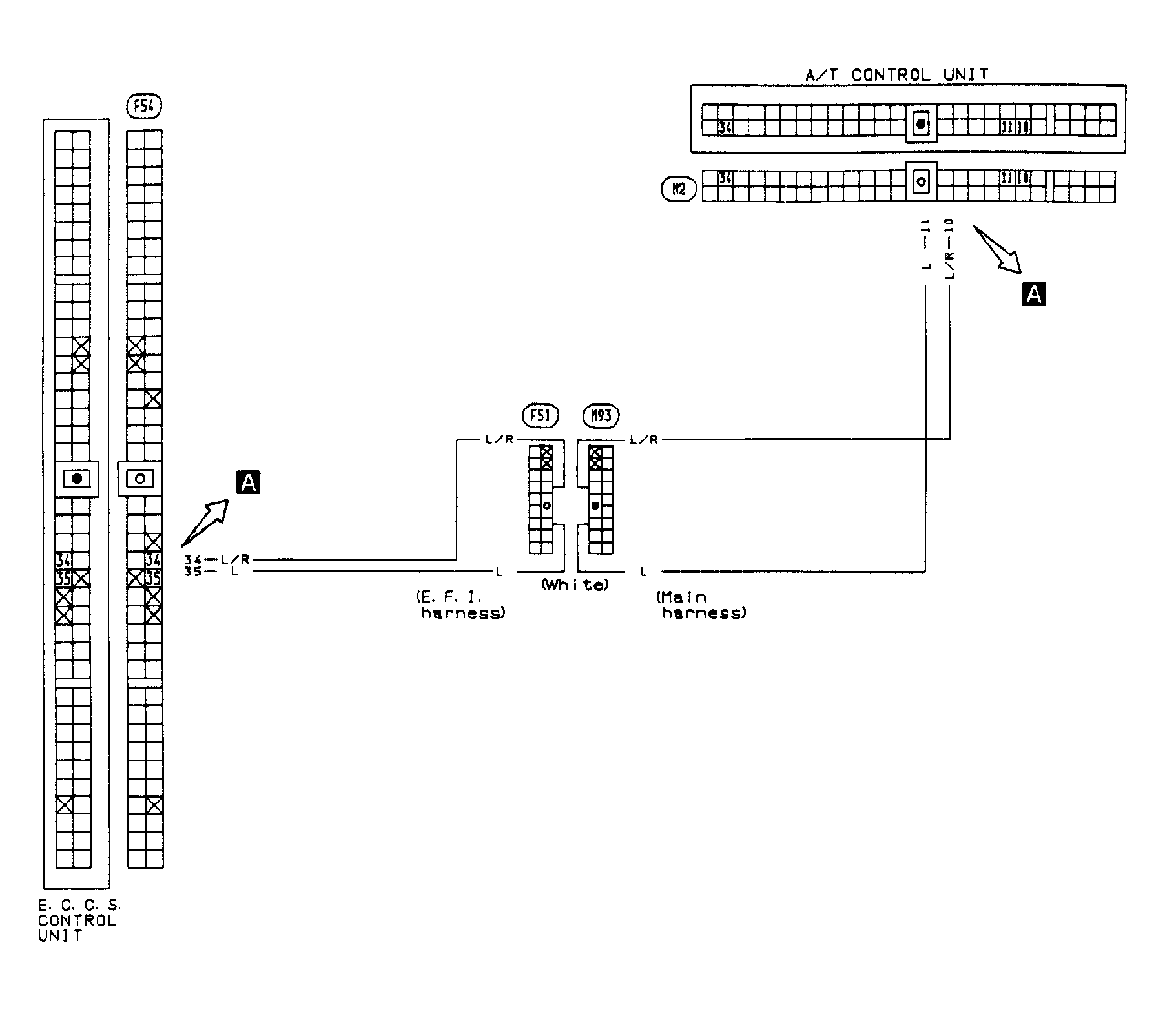

Fig 1: Code 54: Auto Trans. Signal Circuit Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

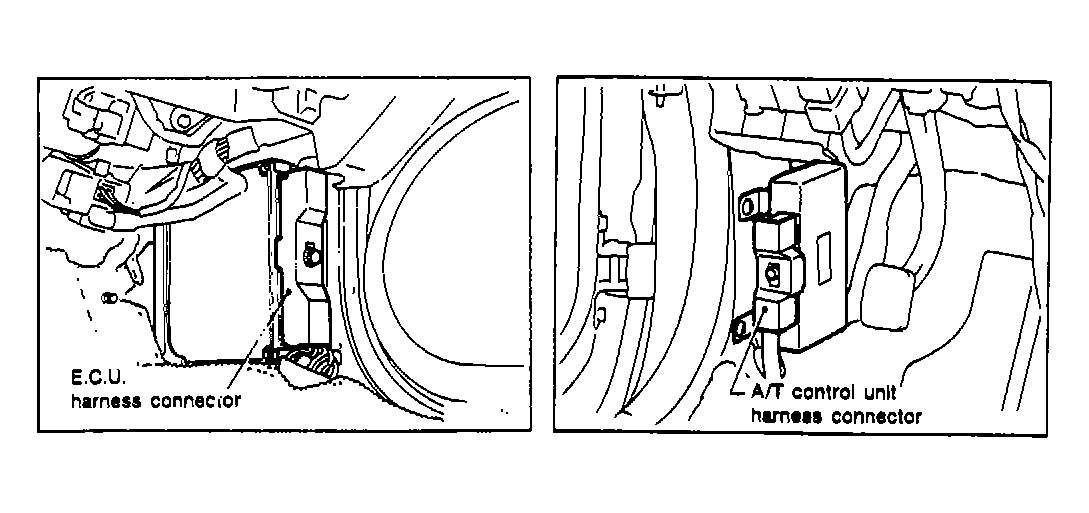

Fig 2: Code 54: Auto Trans. Signal & ECU Harness Location
Courtesy of NISSAN MOTOR CO., U.S.A.

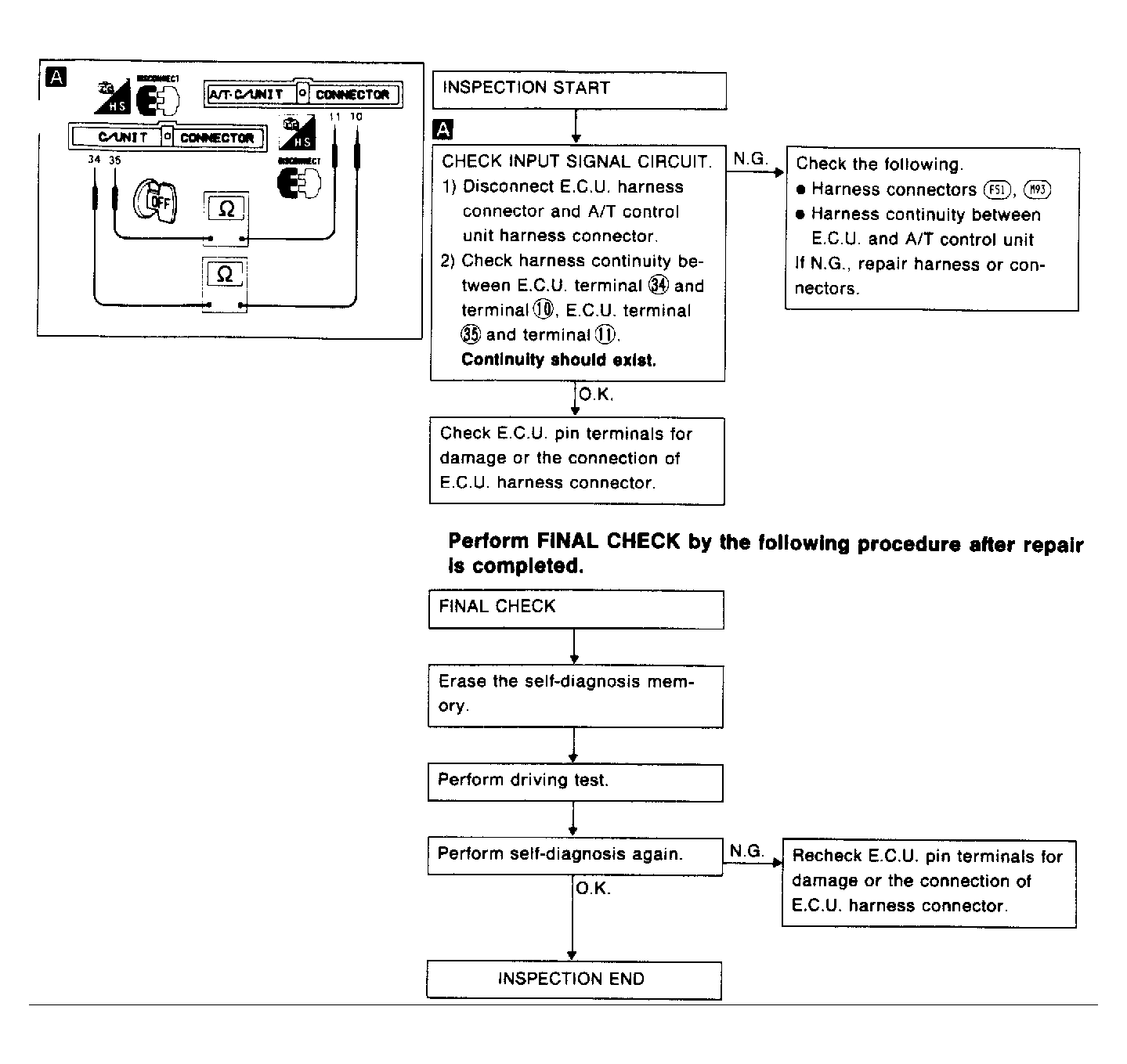

Fig 3: Code 54: Auto Trans. Signal Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
