DTC 11 - Crank Angle Sensor

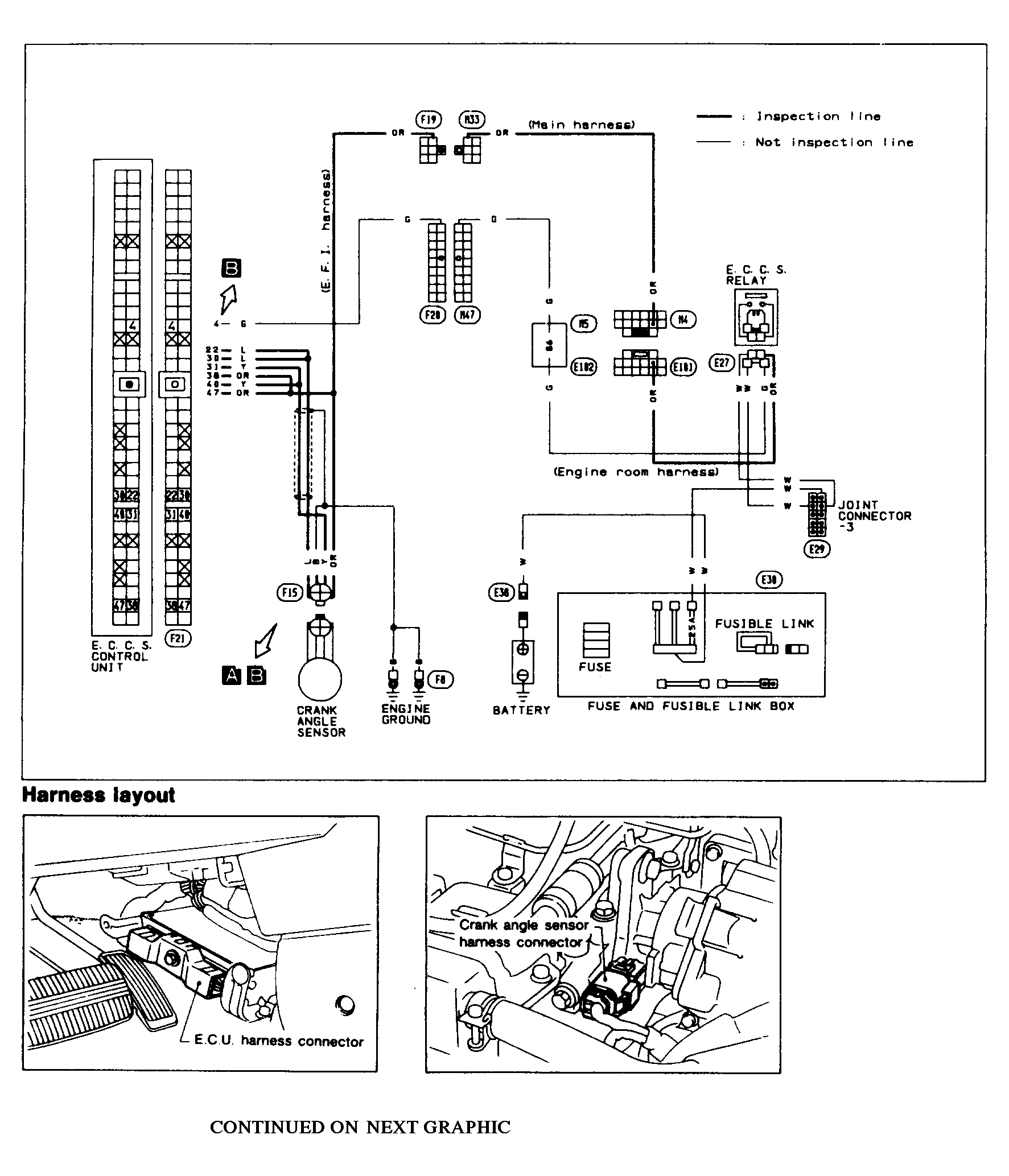

Fig 1: Code 11 Schematic - Crank Angle Sensor
Courtesy of NISSAN MOTOR CO., U.S.A.

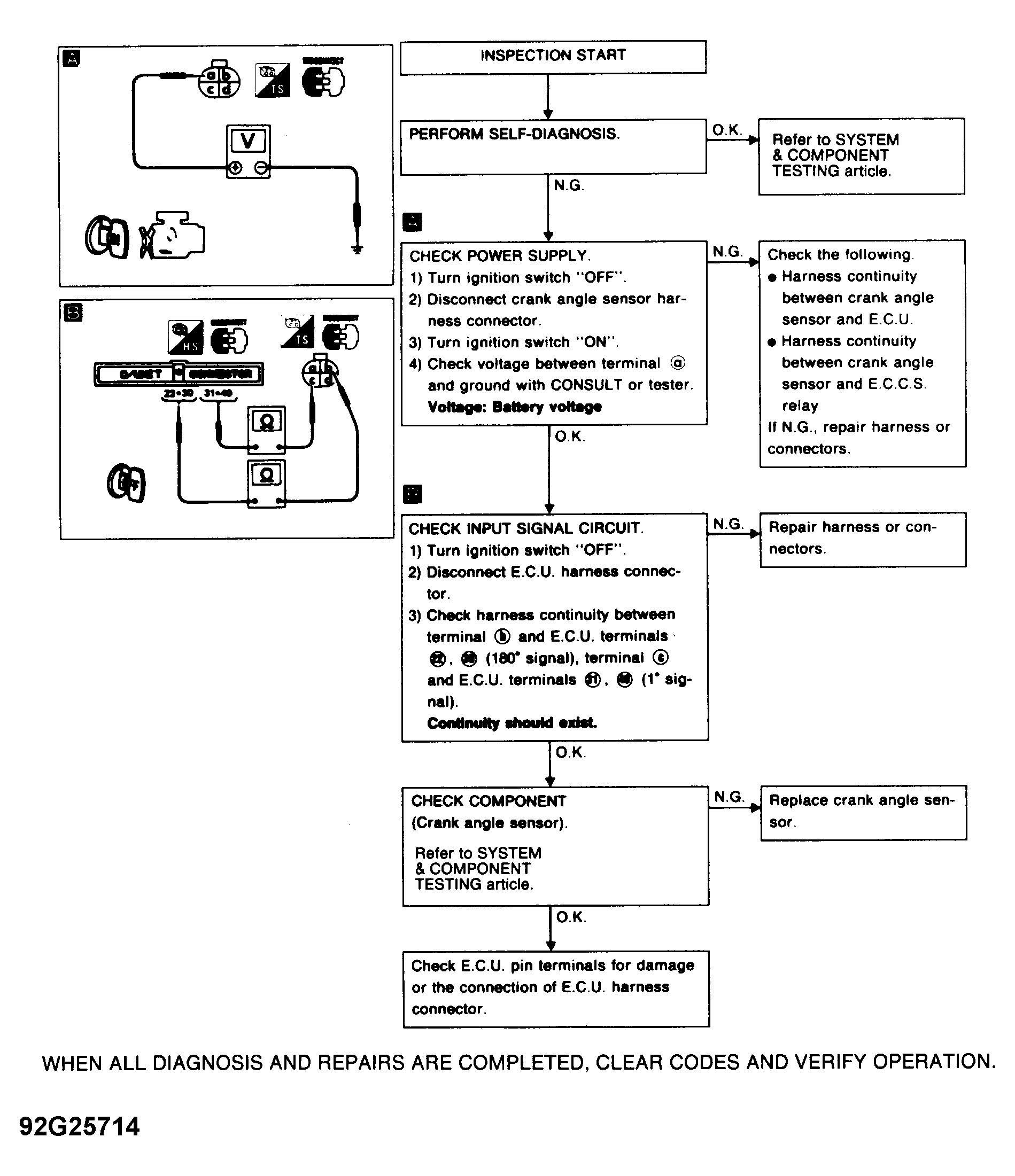

Fig 2: Code 11 Chart - Crank Angle Sensor
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
