DTC 12 - Airflow Meter

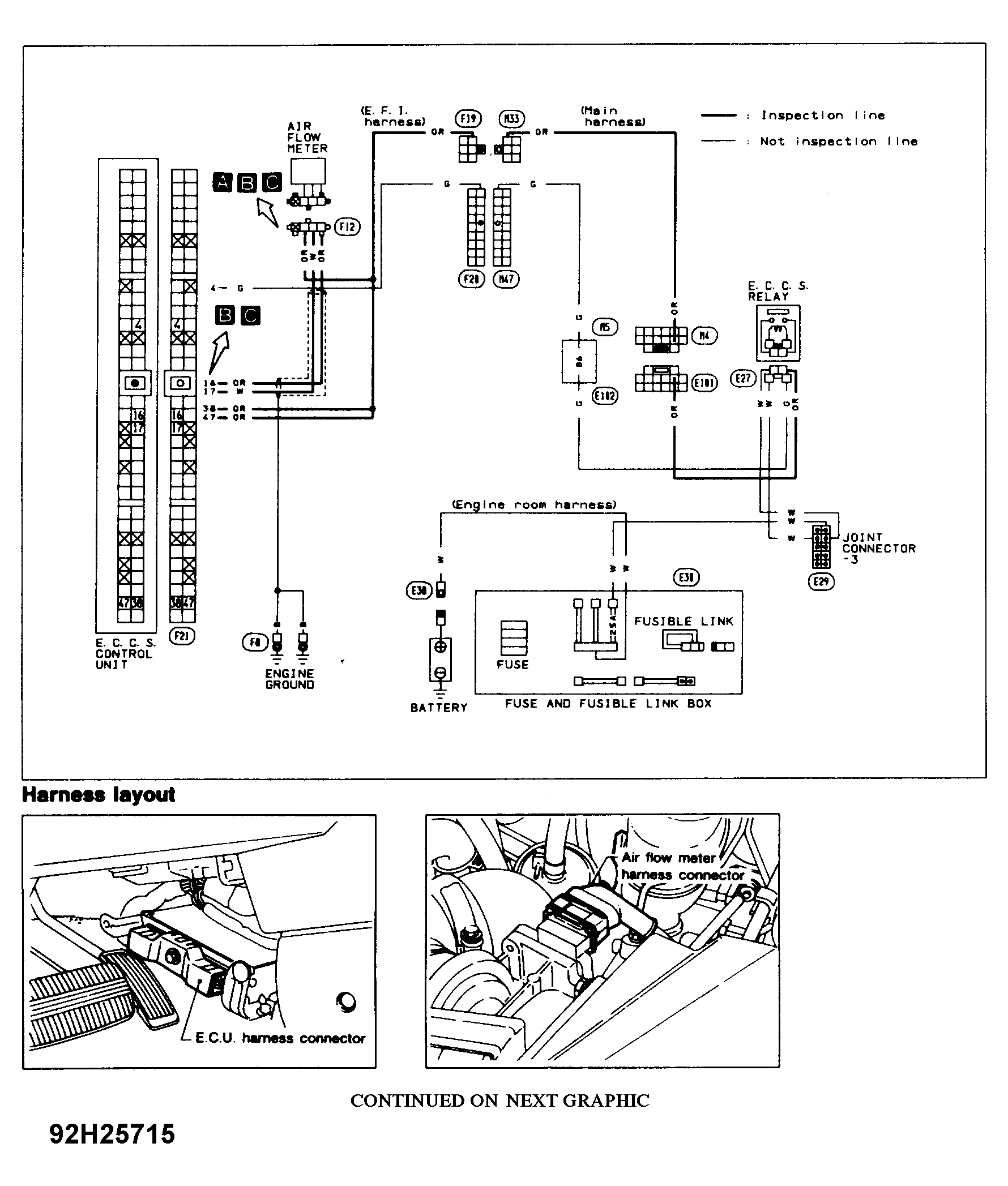

Fig 1: Code 12 Schematic - Airflow Meter
G92H25715Courtesy of NISSAN MOTOR CO., U.S.A.

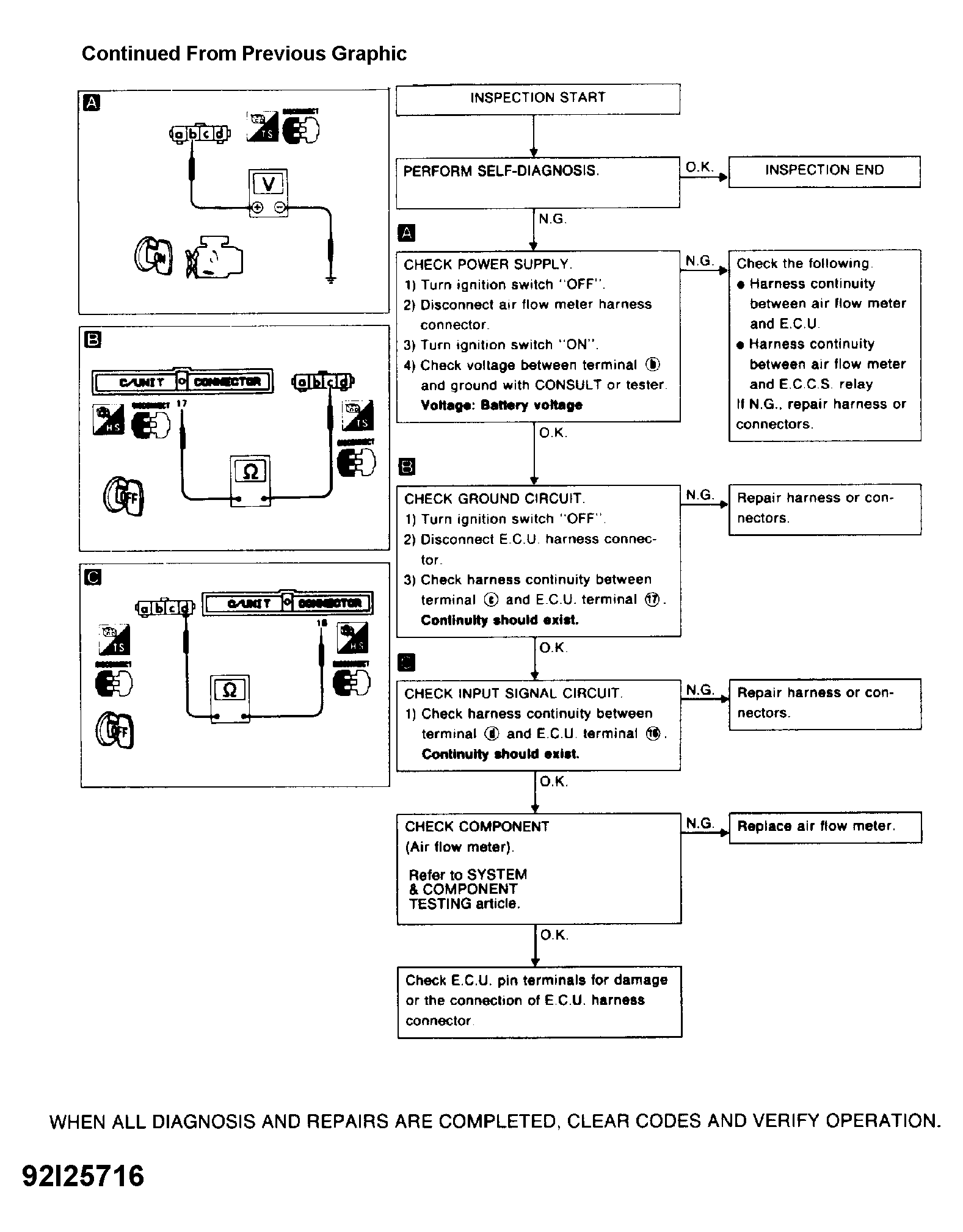

Fig 2: Code 12 Chart - Airflow Meter
G92I25716Courtesy of NISSAN MOTOR CO., U.S.A.
