DTC 33 - Oxygen Sensor

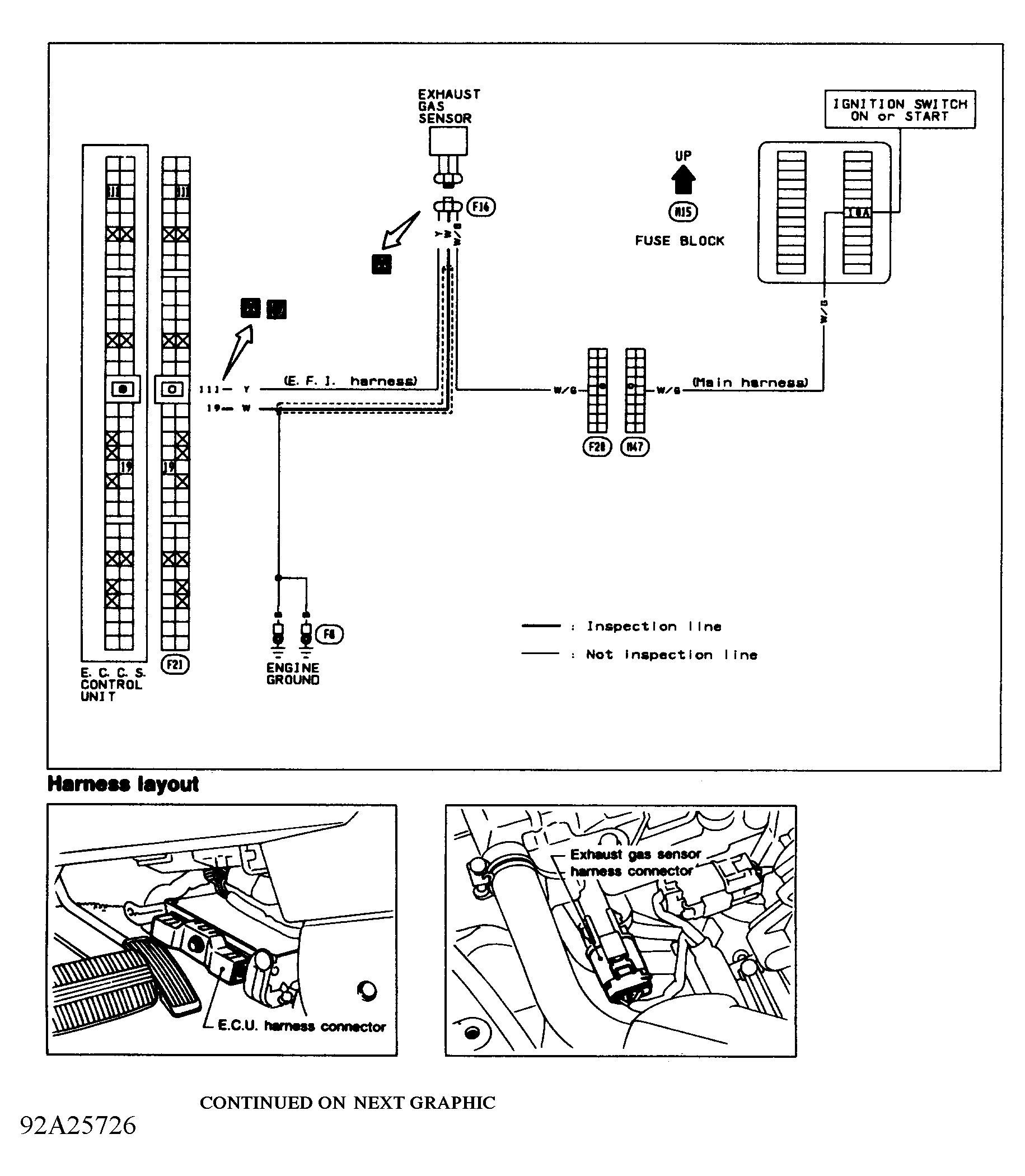

Fig 1: Code 33 Schematic - Oxygen Sensor
G92A25726Courtesy of NISSAN MOTOR CO., U.S.A.

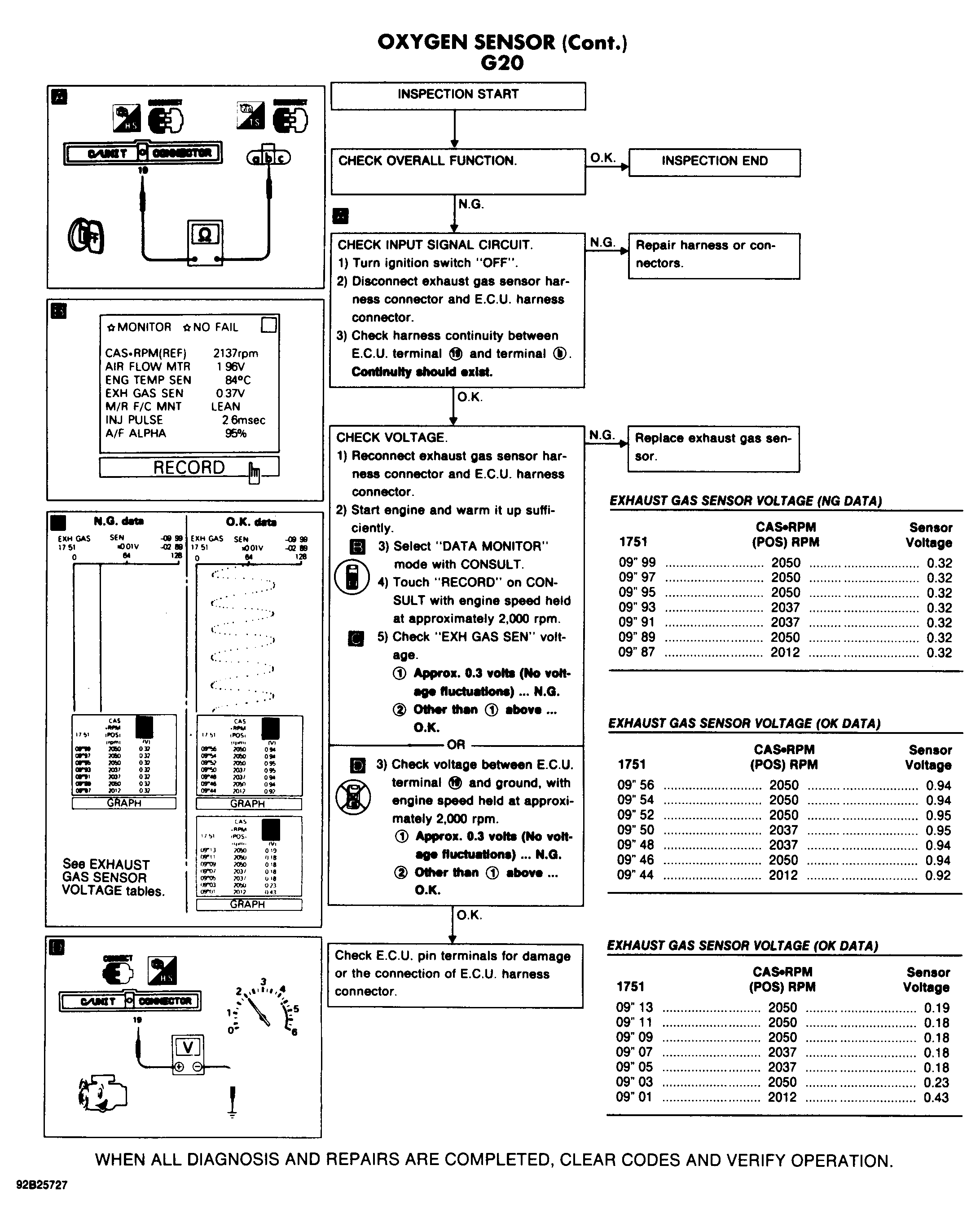

Fig 2: Code 33 Chart - Oxygen Sensor
G92B25727Courtesy of NISSAN MOTOR CO., U.S.A.
