DTC 14 - Vehicle Speed Sensor

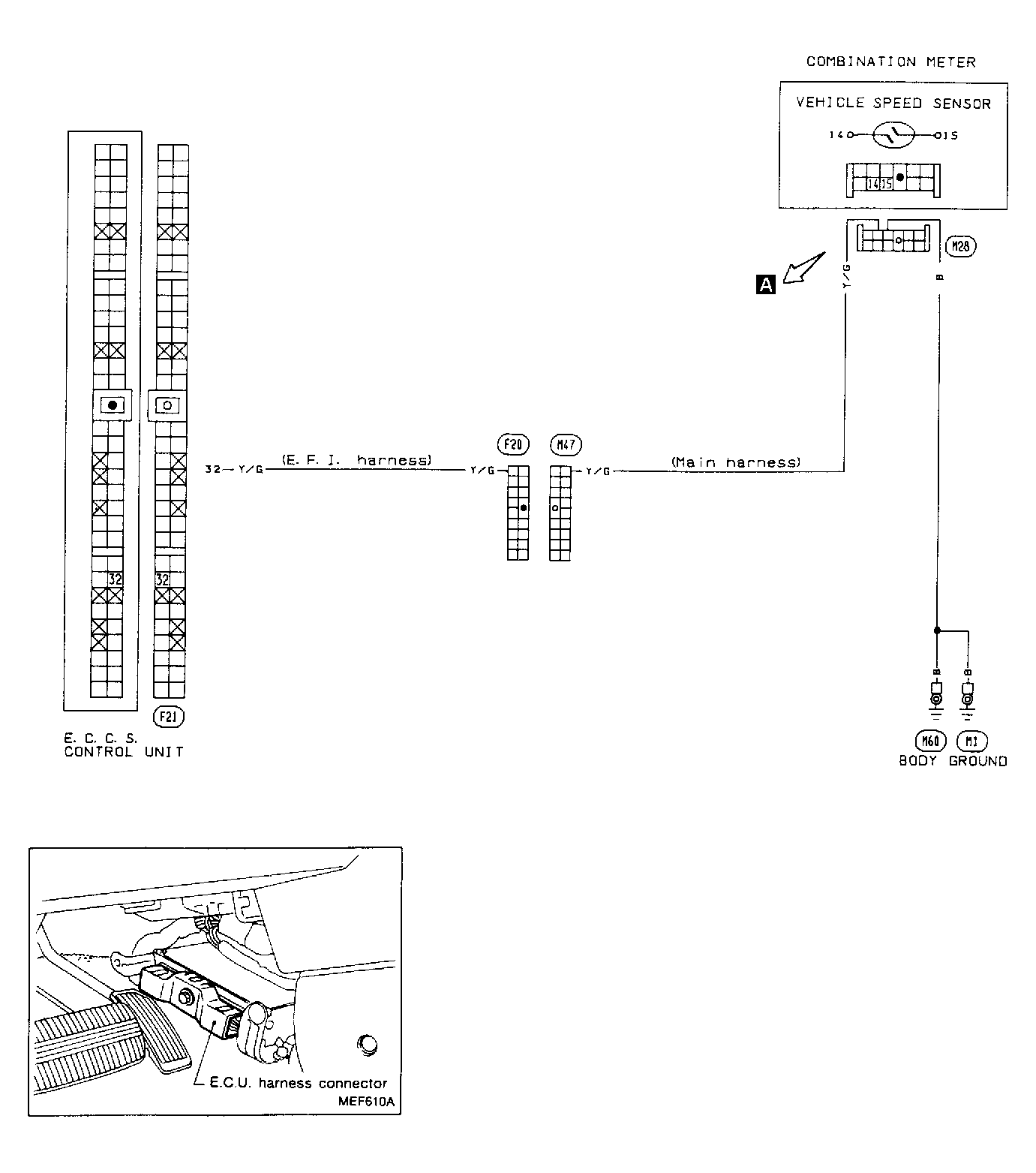

Fig 1: Code 14 Schematic - Vehicle Speed Sensor
Courtesy of NISSAN MOTOR CO., U.S.A.

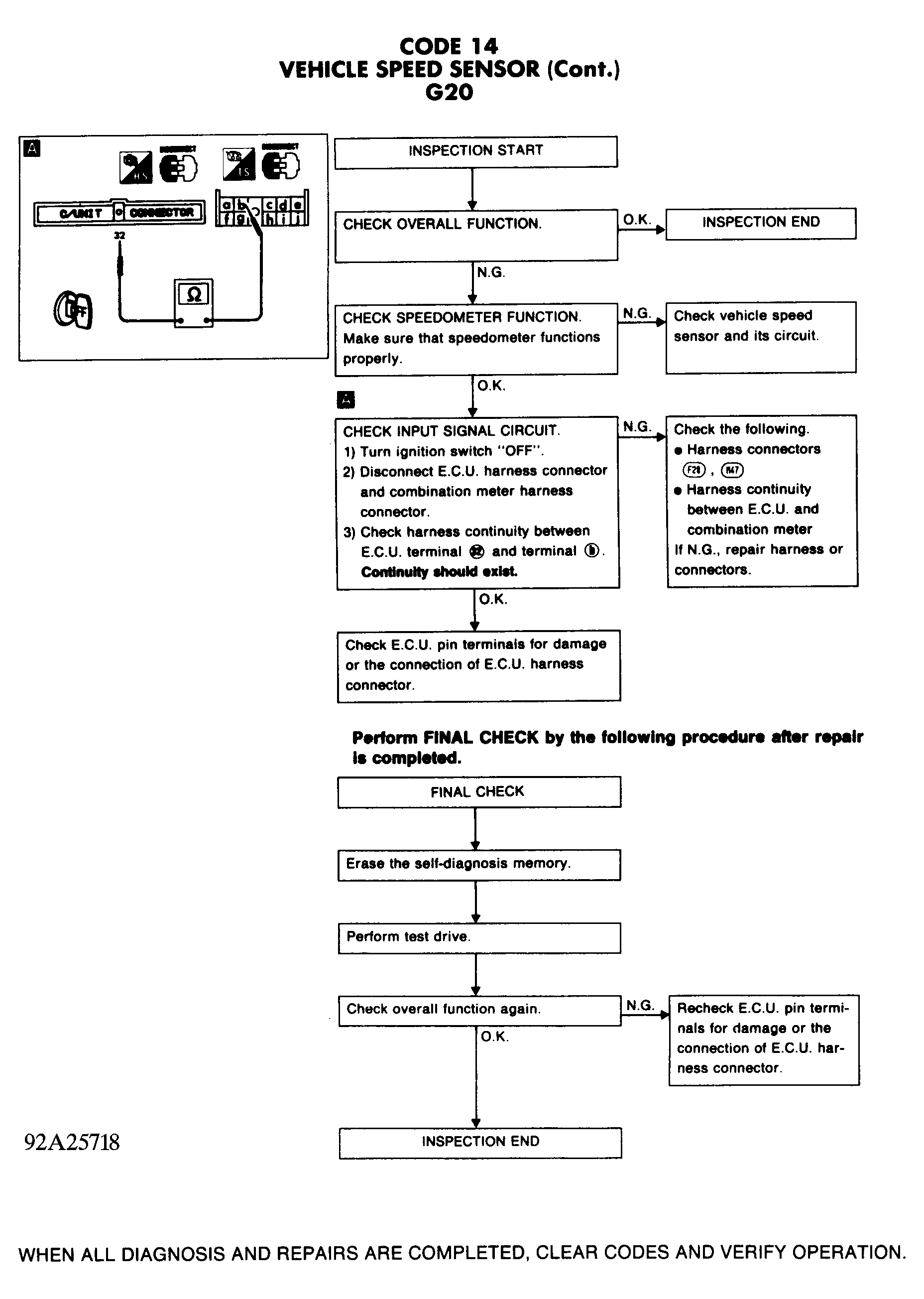

Fig 2: Code 14 Chart - Vehicle Speed Sensor
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
