Torque Specifications

TORQUE SPECIFICATIONS

Application Ft. Lbs. (N.m)
Clutch Cover Retaining Bolt 16-21 (22-29)
Exhaust Pipe-To-Manifold Nut 30-35 (41-48)
Transaxle-To-Engine Bolts (1)
Wheel Bearing Lock Nut 173-232 (235-314)
Wheel Lug Nut 72-87 (98-118)

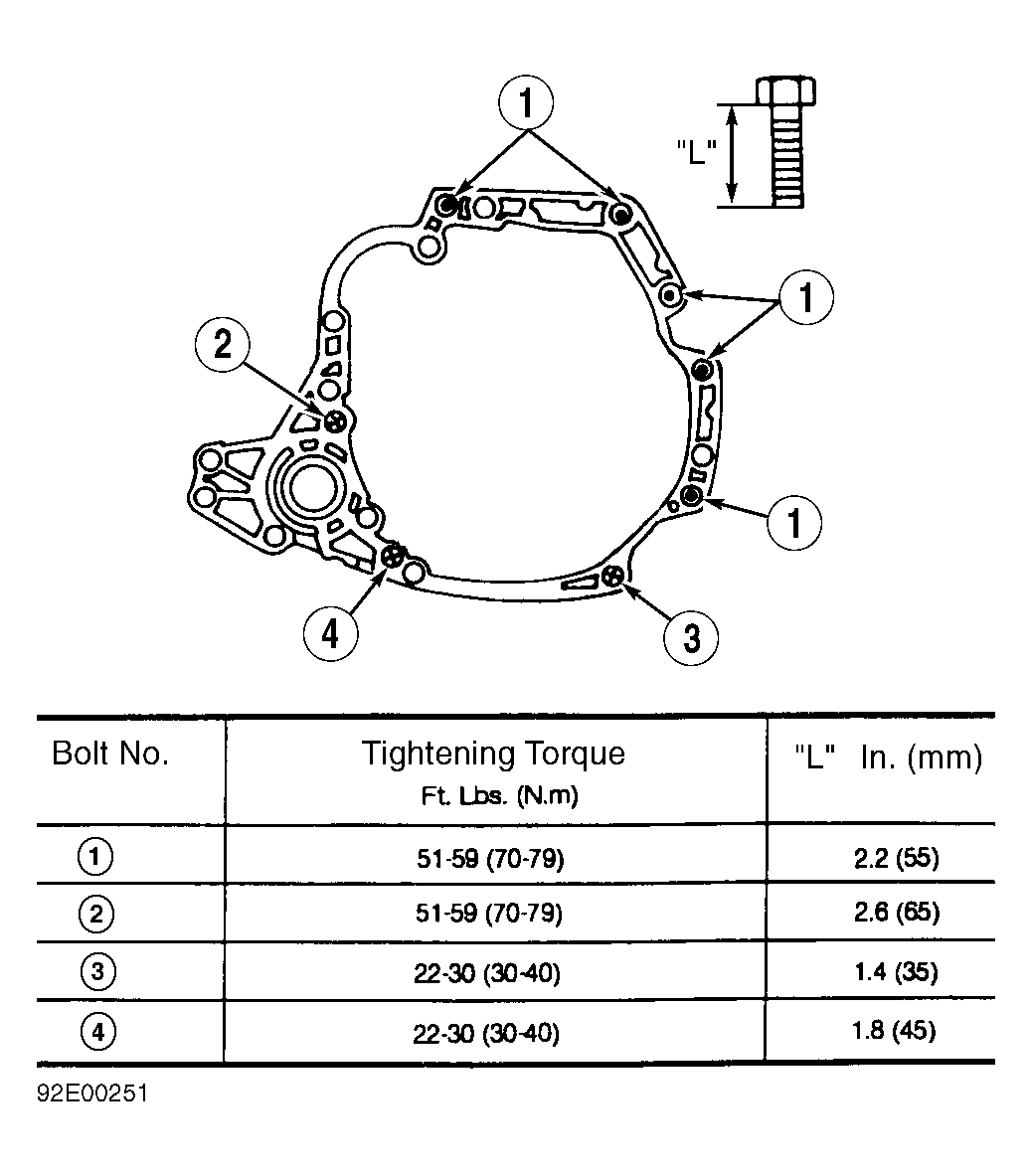

(1) See Figure .
