Firing Order & Timing Marks: Notes

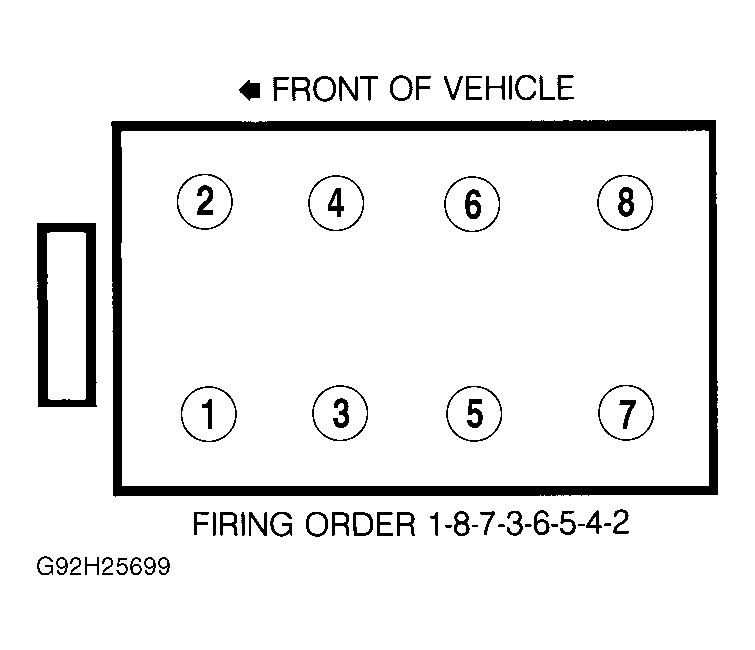

NOTE: For firing order, see Figure-Figure . Q45 uses a distributorless ignition system. Firing order for Q45 is controlled by ECU through left and right power transistors. Adjustments to timing are not possible.
