Component Locations

When attempting to locate components, refer to following diagrams. See Fig 1 -Fig 3 .

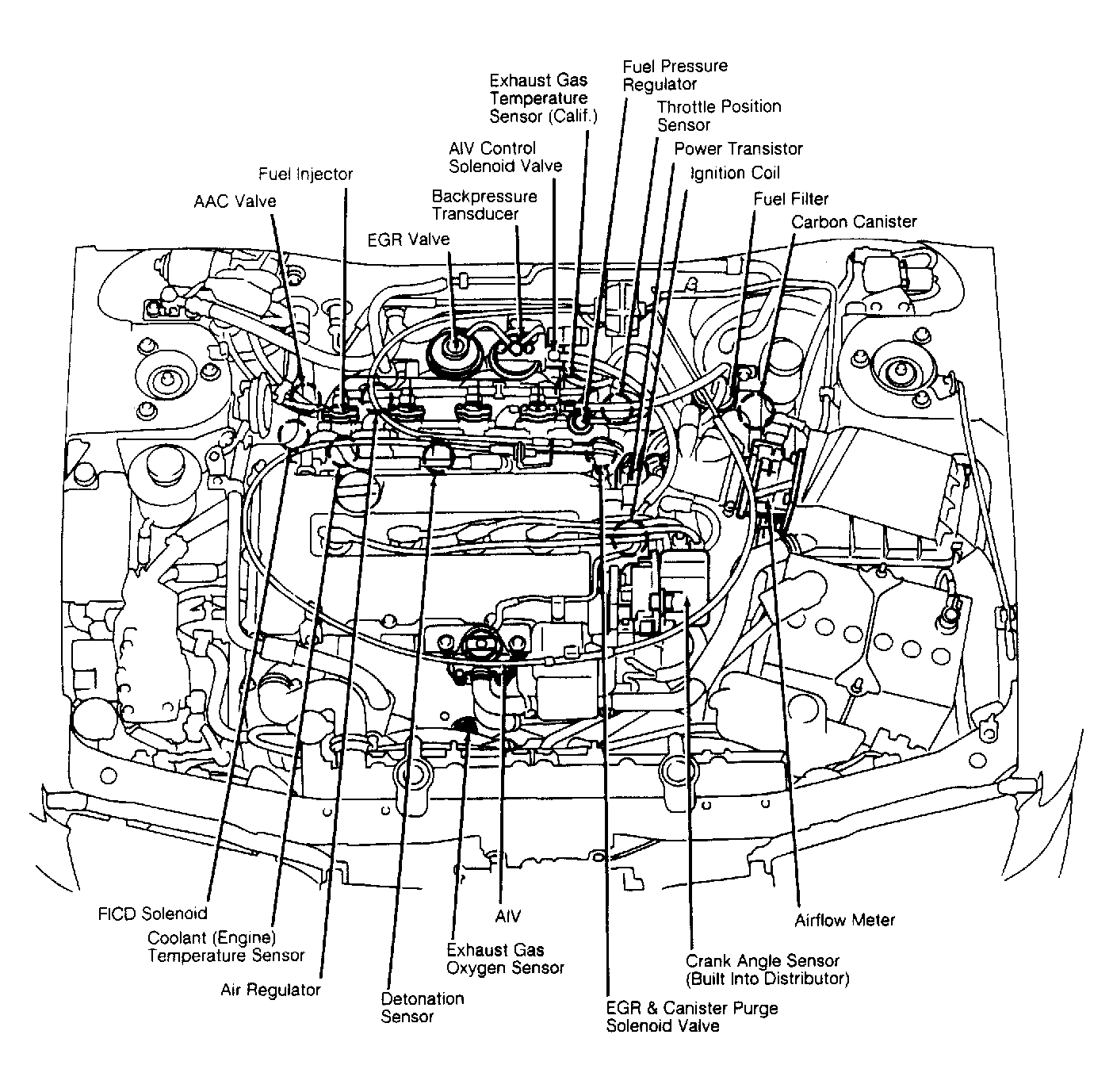

Fig 1: Underhood Engine Performance Component Locations (G20)

Courtesy of NISSAN MOTOR CO., U.S.A.

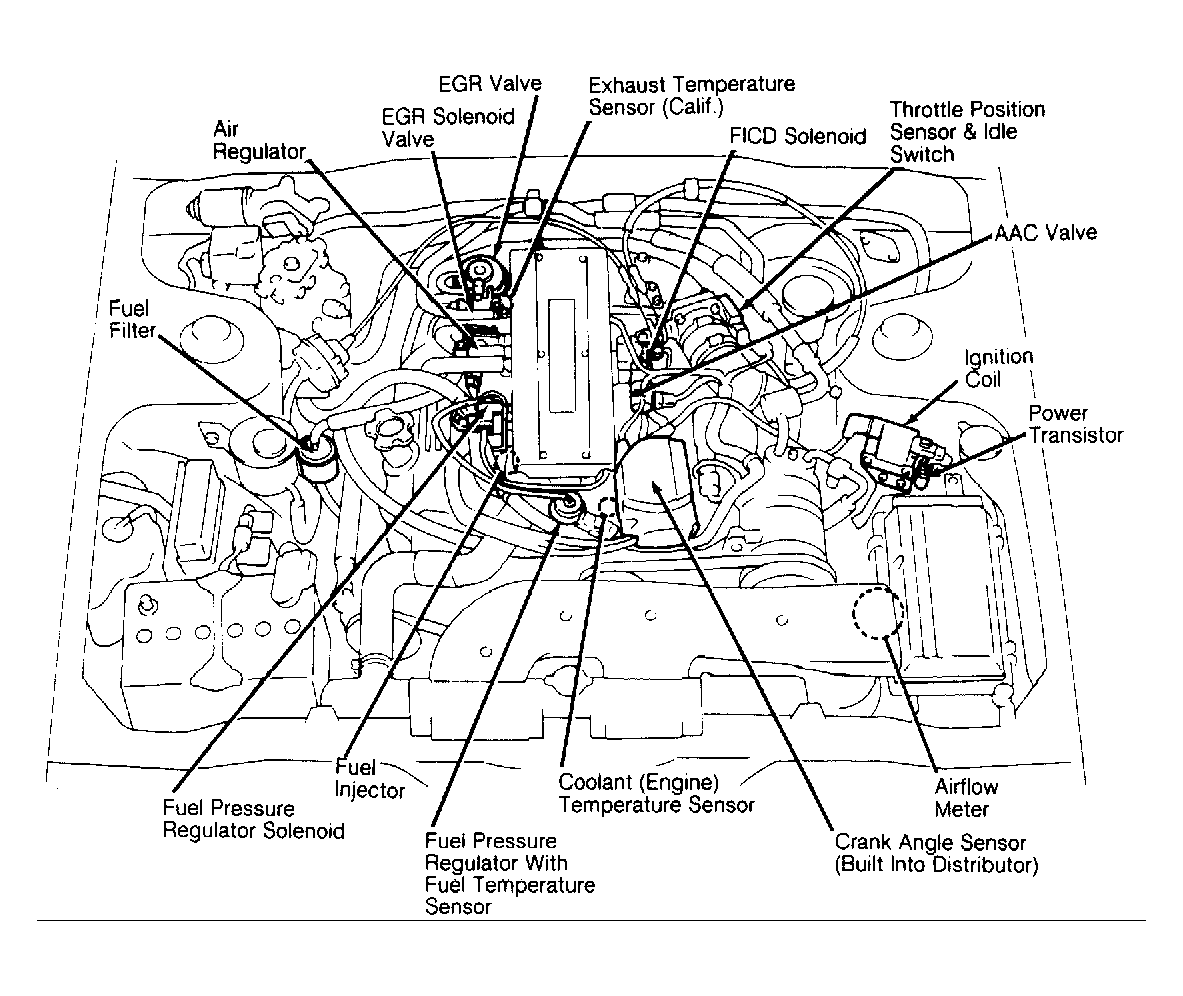

Fig 2: Underhood Engine Performance Component Locations (M30)

Courtesy of NISSAN MOTOR CO., U.S.A.

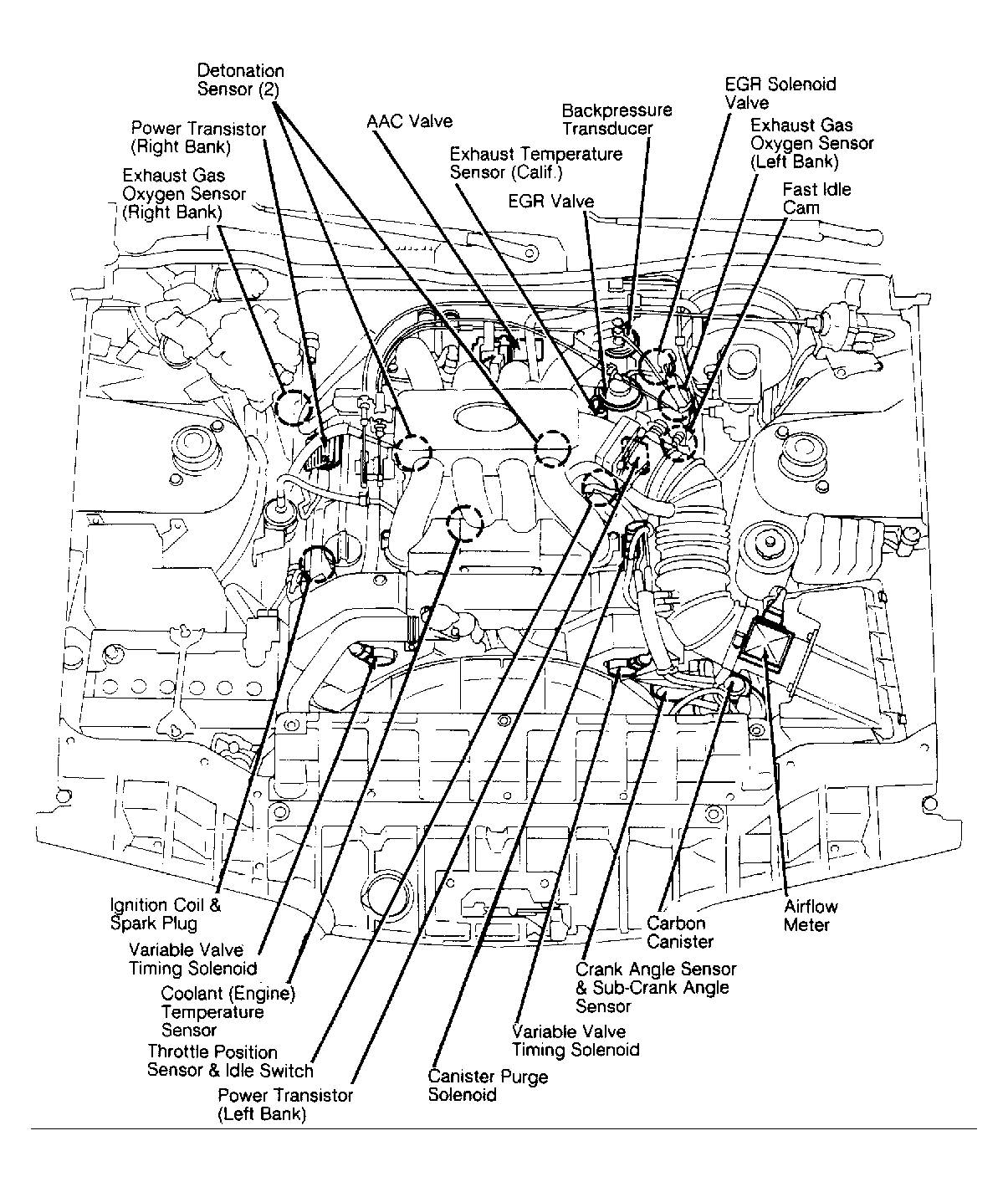

Fig 3: Underhood Engine Performance Component Locations (Q45)

Courtesy of NISSAN MOTOR CO., U.S.A.
