DTC 12 - Airflow Meter
Fig 1: Code 12 Schematic - Airflow Meter
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Code 12 Connector Location - Airflow Meter
Courtesy of NISSAN MOTOR CO., U.S.A.

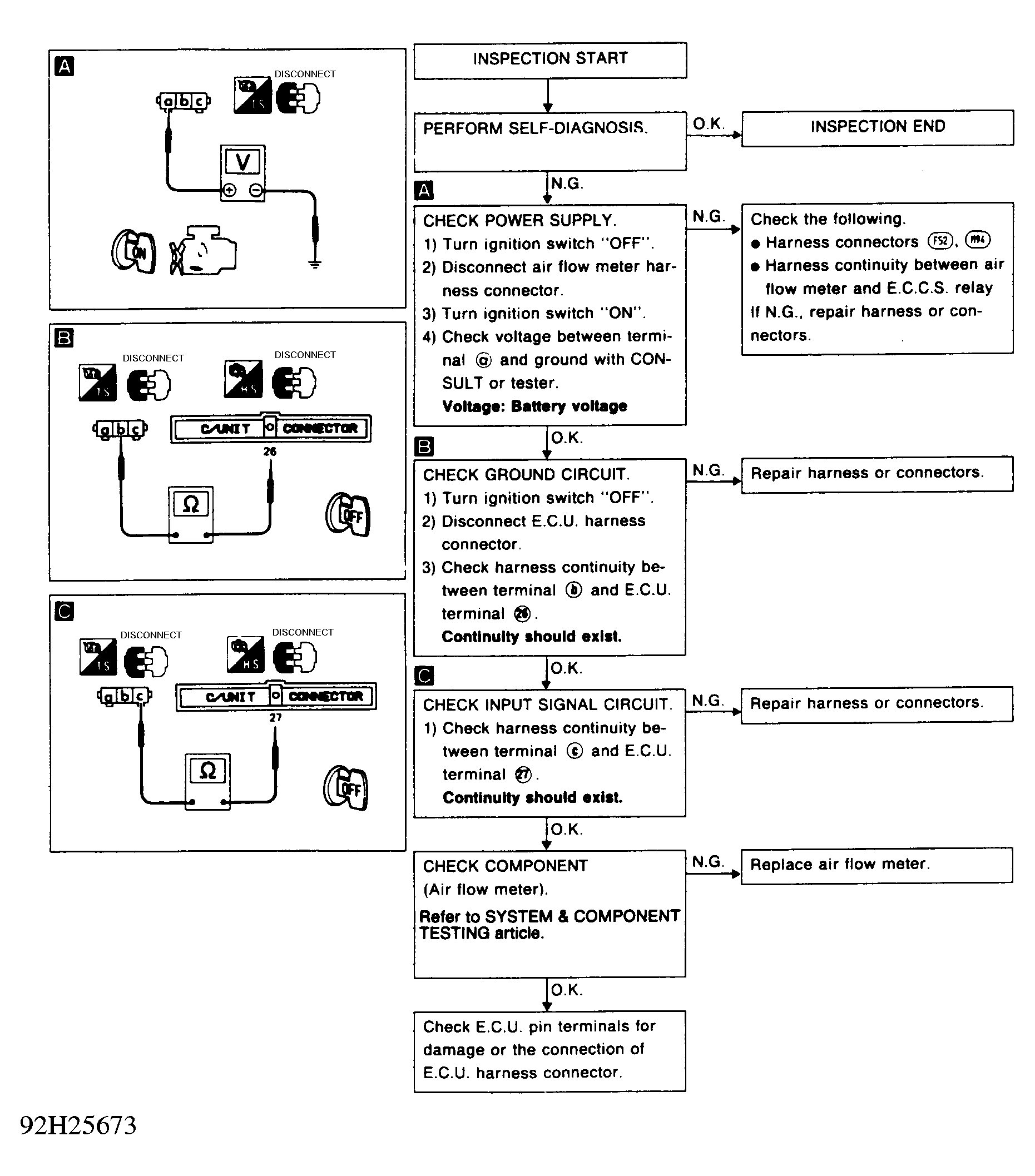

Fig 3: Code 12 Flow Chart - Airflow Meter
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
