DTC 21 - Ignition Signal Circuit

Fig 1: Code 21 ECU Connector ID - Ignition Signal Circuit

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Code 21 Schematic - Ignition Signal Circuit

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Code 21 Connector Location (1 of 2) - Ignition Signal Circuit

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Code 21 Connector Location (2 of 2) - Ignition Signal Circuit

Courtesy of NISSAN MOTOR CO., U.S.A.

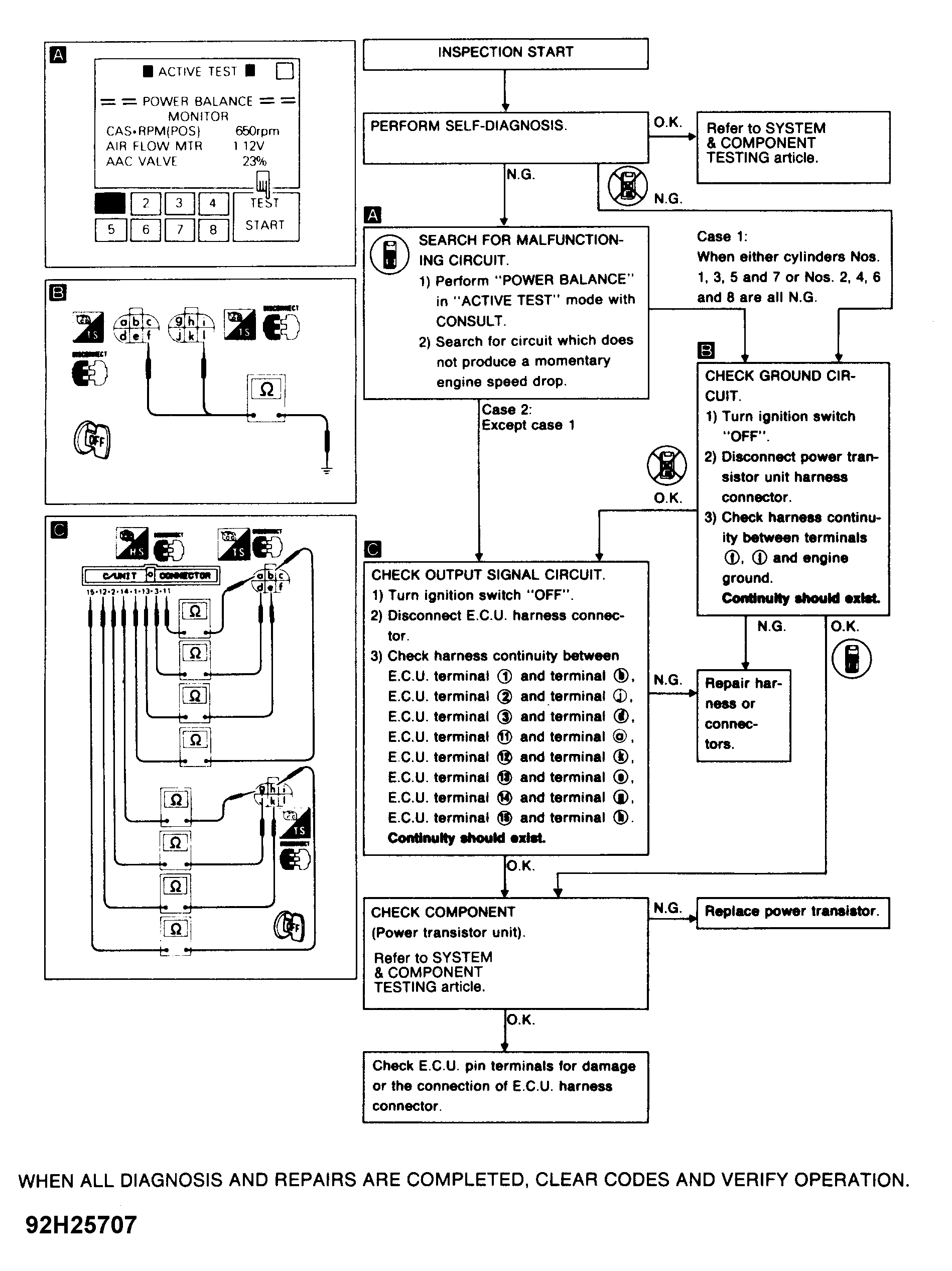

Fig 5: Code 21 Flow Chart - Ignition Signal Circuit

Courtesy of NISSAN MOTOR CO., U.S.A.
