DTC 35 - Exhaust Gas Temperature Sensor

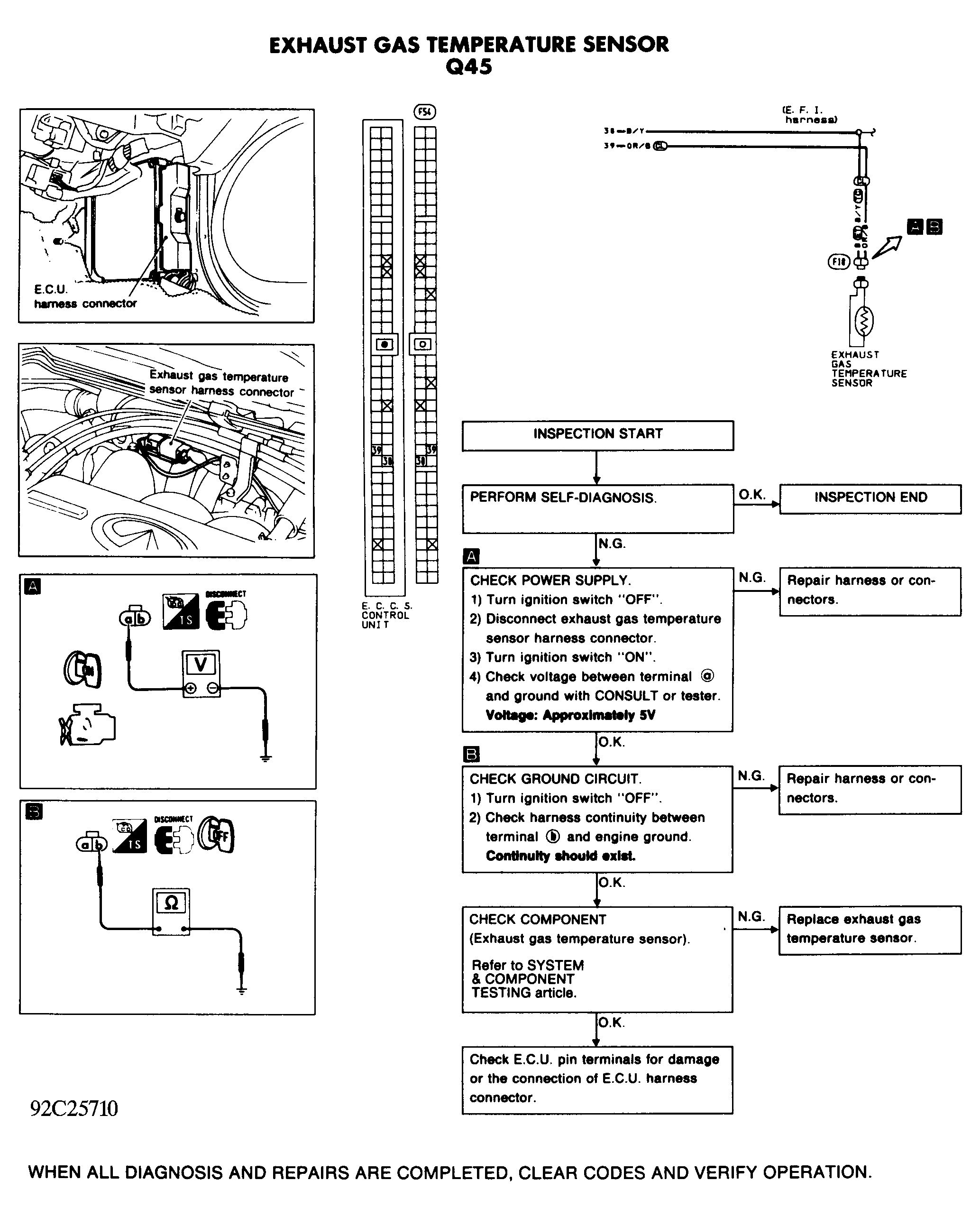

Fig 1: Code 35 Schematic & Flow Chart - Exhaust Gas Temperature Sensor
G92C25710Courtesy of NISSAN MOTOR CO., U.S.A.
