DTC 46 - Secondary Throttle Sensor

Fig 1: Code 46 Schematic - Secondary Throttle Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Code 46 Connector Location - Secondary Throttle Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

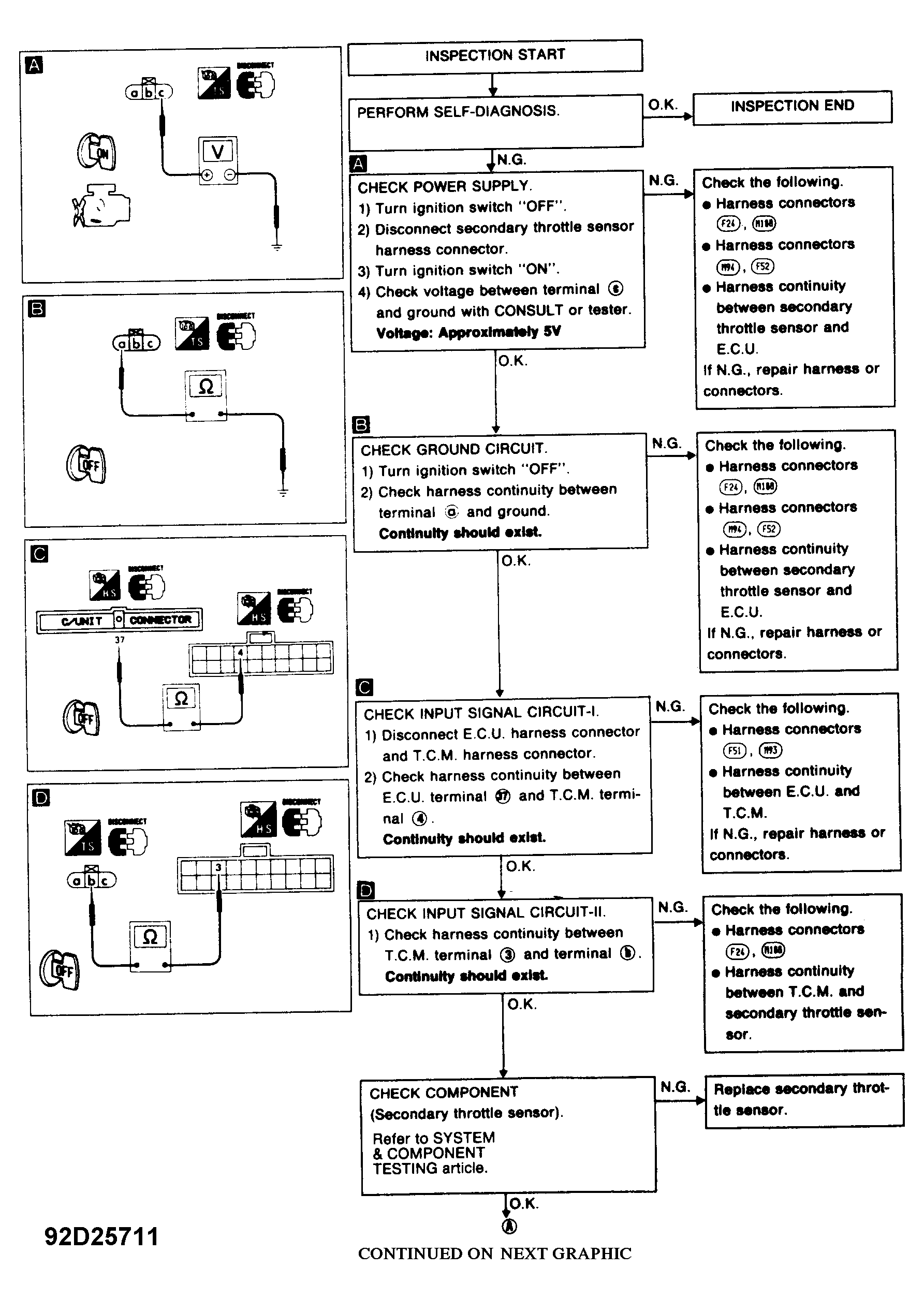

Fig 3: Code 46 Flow Chart (1 of 2) - Secondary Throttle Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Code 46 Flow Chart (2 of 2) - Secondary Throttle Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.
