DTC 51 - Injector Circuit

Fig 1: Code 51 Schematic - Injector Circuit

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Code 51 Connector Location - Injector Circuit

Courtesy of NISSAN MOTOR CO., U.S.A.

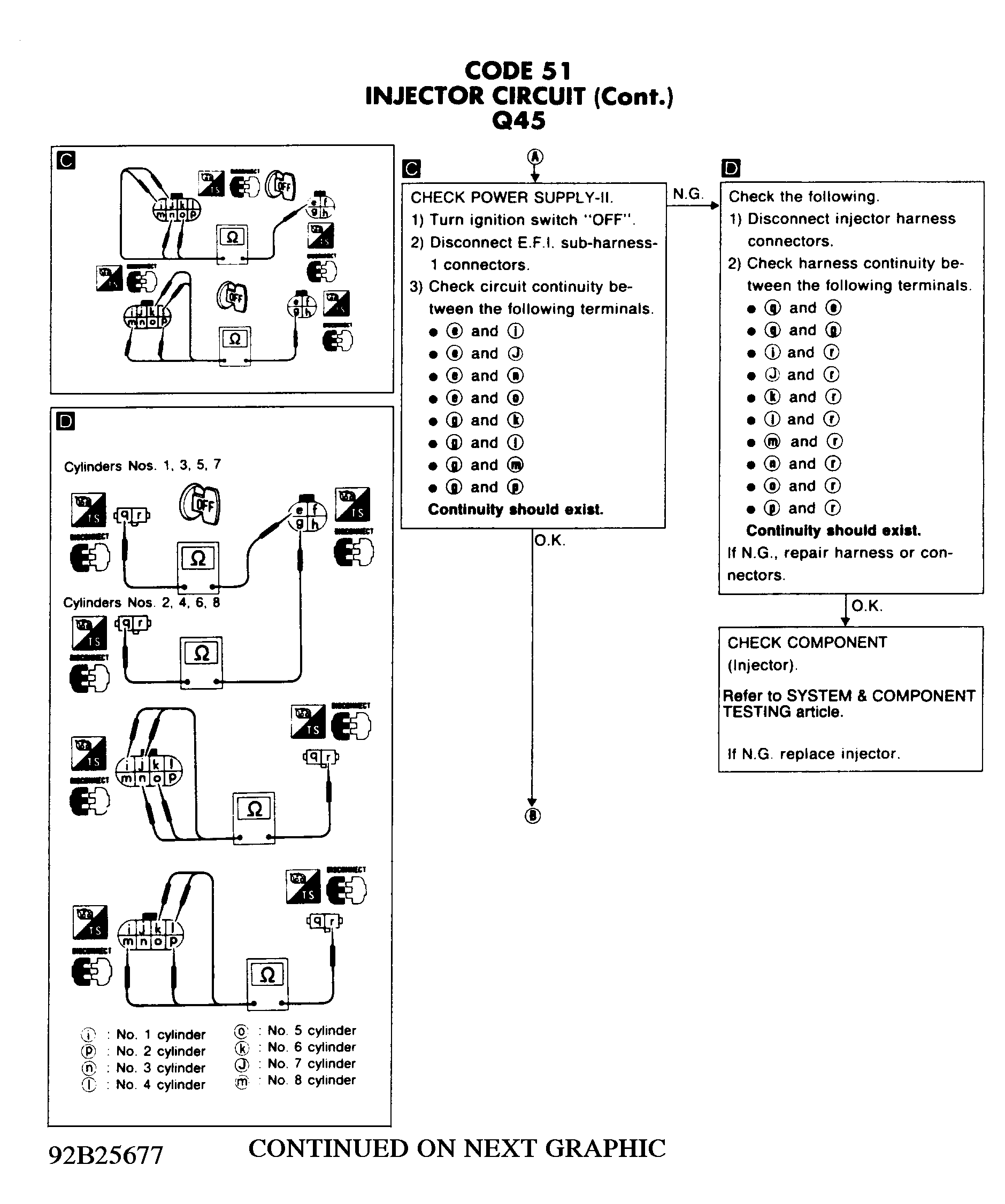

Fig 3: Code 51 Flow Chart (1 of 3) - Injector Circuit

Courtesy of NISSAN MOTOR CO., U.S.A.

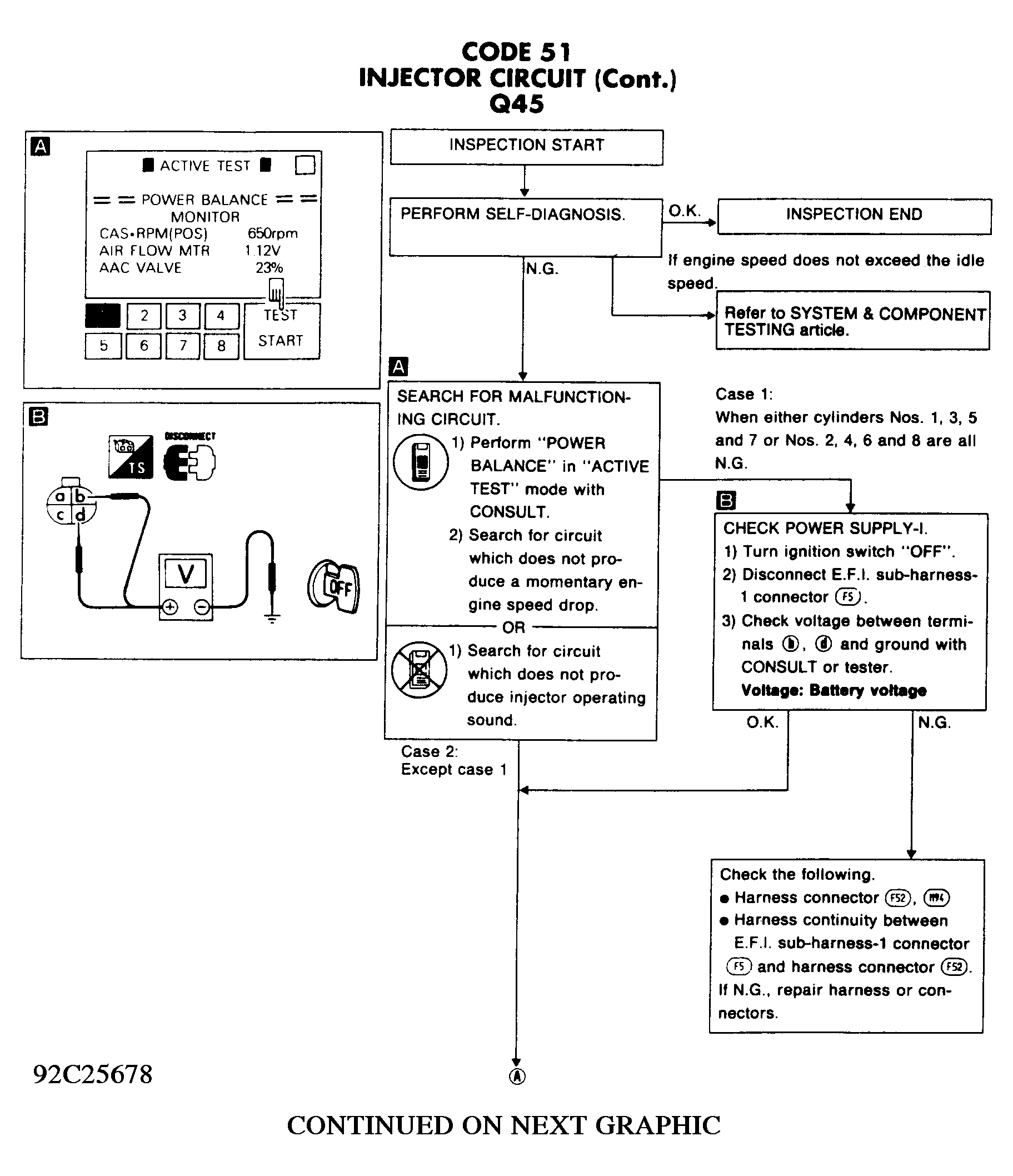

Fig 4: Code 51 Flow Chart (2 of 3) - Injector Circuit

Courtesy of NISSAN MOTOR CO., U.S.A.

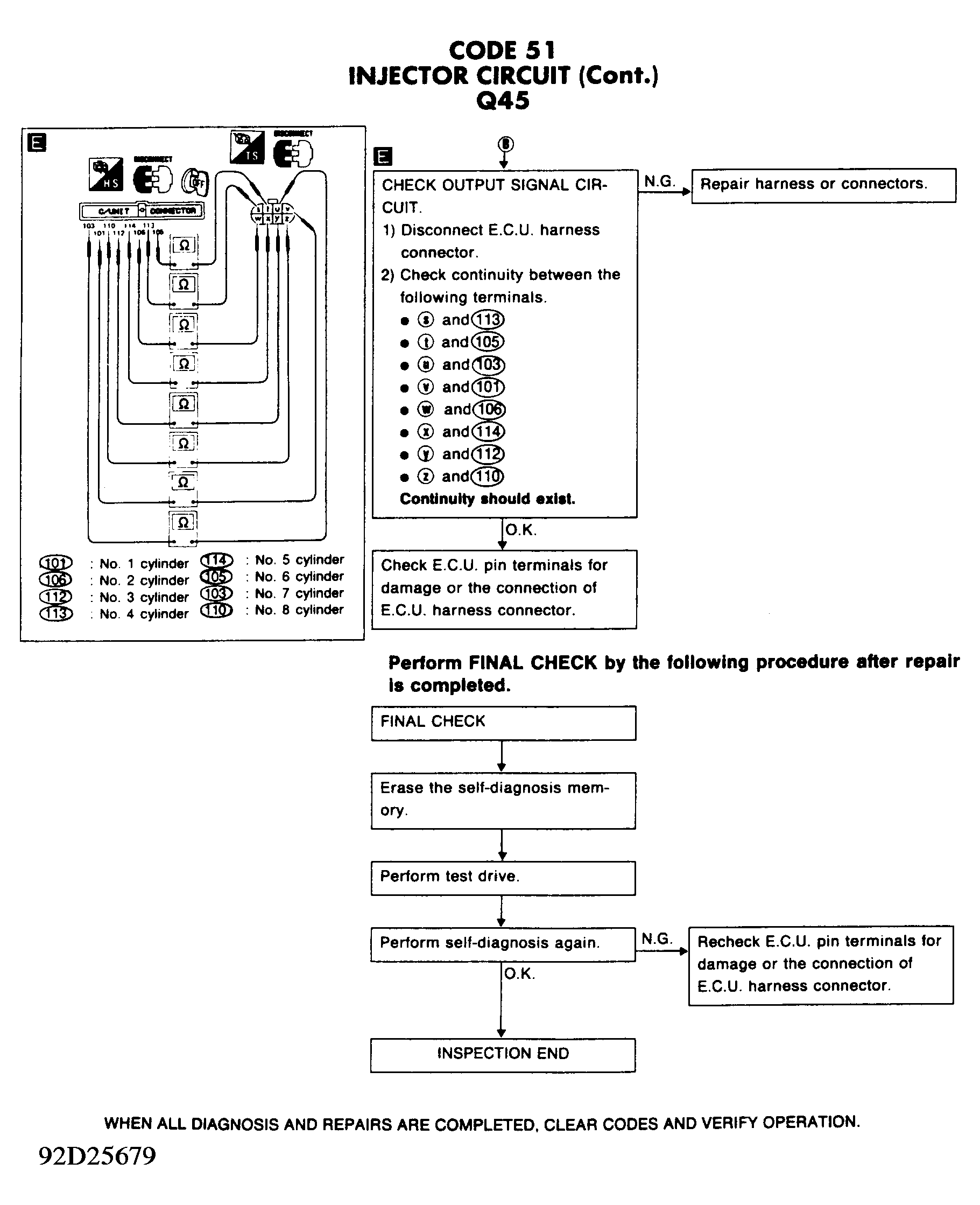

Fig 5: Code 51 Flow Chart (3 of 3) - Injector Circuit

Courtesy of NISSAN MOTOR CO., U.S.A.
