Check Input Signal Circuit

Turn ignition off. Disconnect ECM harness connector and A/T control unit harness connector. Verify harness continuity between ECM connector terminal No. 42 and A/T control unit connector terminal No. 10 (White/Red wire). Verify harness continuity between ECM connector terminal No. 44 and A/T control unit connector terminal No. 11 (White/Blue wire). See Fig 1 and Fig 2 . If continuity is present, perform FINAL CHECK  . If continuity is not present, check harness and connectors between ECM and A/T control unit. Repair harness or connectors as necessary and perform FINAL CHECK  .

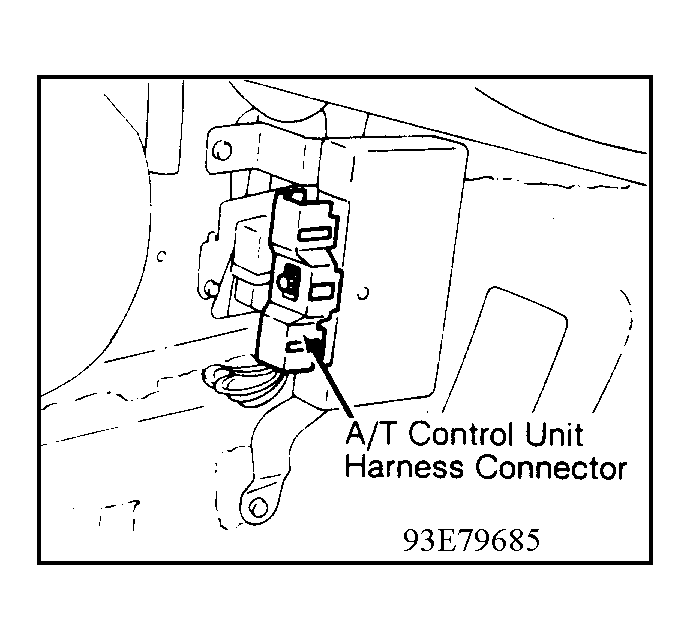

Fig 1: Locating A/T Control Unit Connector
G93E79685Courtesy of NISSAN MOTOR CO., U.S.A.

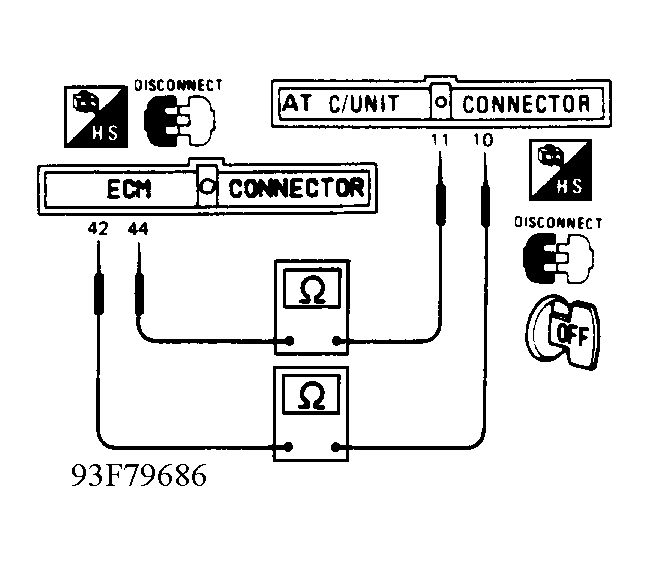

Fig 2: DTC 54, Checking Input Signal Circuit
G93F79686Courtesy of NISSAN MOTOR CO., U.S.A.
