Driver's Switch

  1. Unplug connectors from driver's switch. With switch in UP (manual) position, continuity should exist between terminals No. 1 and 2. See Fig 1 . Continuity should not exist with switch released.
  2. With switch in DOWN (manual) position, continuity should exist between terminals No. 1 and 3. Continuity should not exist with switch released.
  3. With switch in DOWN (auto) position, continuity should exist between terminals No. 1, 3, and 4. Continuity should not exist with switch released. Replace switch if continuity is not as specified.

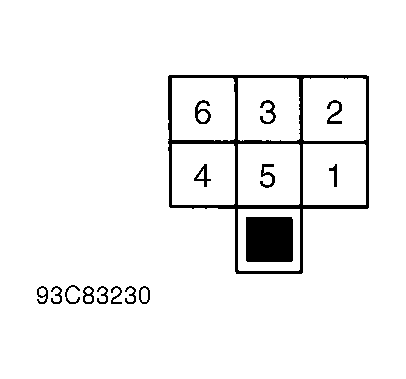

Fig 1: Driver's Window Switch Terminal ID
G93C83230
