Front Passenger Switch

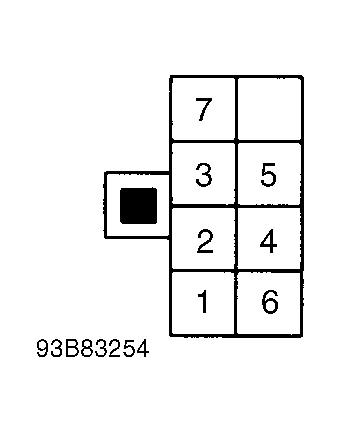

- Unplug connector from switch. With switch in UP position, continuity should exist between terminals No. 1 and 4, and between terminals No. 3 and 5. See Fig 1
. Continuity should not exist with switch released.
- With switch in neutral position, continuity should exist between terminals No. 2 and 4, and between terminals No. 3 and 5.
- With switch in DOWN position, continuity should exist between terminals No. 2 and 4, and between terminals No. 1 and 5. Continuity should not exist with switch released. Replace switch if continuity is not as specified.
