Yoke Assembly Inspection

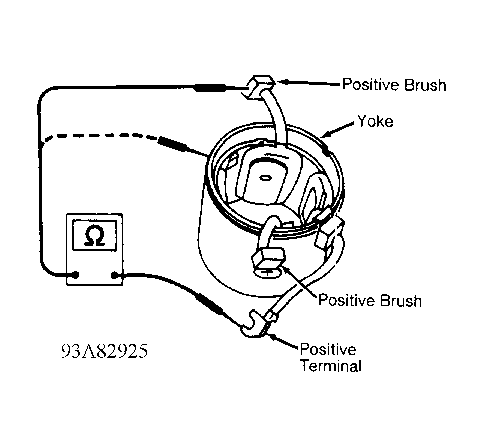

Check for continuity between field coil positive terminal and positive brushes. See Fig 1. If continuity does not exist, replace yoke assembly. Check for continuity between field coil positive terminal and yoke assembly. If continuity exists, replace yoke assembly.
