Power Mirror Switch Test

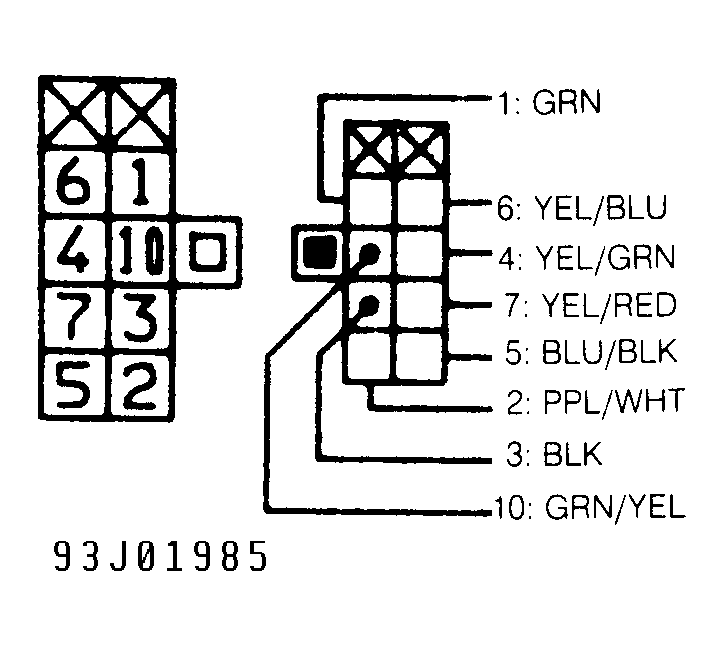

With ignition switch in ON or ACC position, check continuity between specified terminals. See POWER MIRROR SWITCH CONTINUITY TEST table. Use illustrations to identify terminal numbers and wire colors. See Fig 1 . Before performing following tests, ensure circuit ground, circuit harness wiring and circuit fuse are okay. Ensure all circuit connections are clean and tight.
POWER MIRROR SWITCH CONTINUITY TEST
| Application | Terminals | |
|---|---|---|
| Left Mirror | ||
| Off & Neutral | N/A | |
| Right | 1 & 2; 3 & 6 | |
| Left | 1 & 6; 2 & 3 | |
| Up | 1 & 7; 2 & 3 | |
| Down | 1 & 2; 3 & 7 | |
| Right Mirror | ||
| Off & Neutral | N/A | |
| Right | 1 & 2; 3 & 4 | |
| Left | 1 & 4; 2 & 3 | |
| Up | 1 & 5; 2 & 3 | |
| Down | 1 & 2; 3 & 5 | |
