Inhibitor Switch

  1. Shift inhibitor switch to "P" position. Continuity should be present between terminals "a" and "b". See Fig 1 . Continuity should not be present between terminals "a" and "f".
  2. Shift inhibitor switch to "N" position. Continuity should not be present between terminals "a" and "b". Continuity should be present between terminals "a" and "f".
  3. Shift inhibitor switch to any position other than "P" or "N". Continuity should not be present between terminals "a" and "b" or "a" and "f".

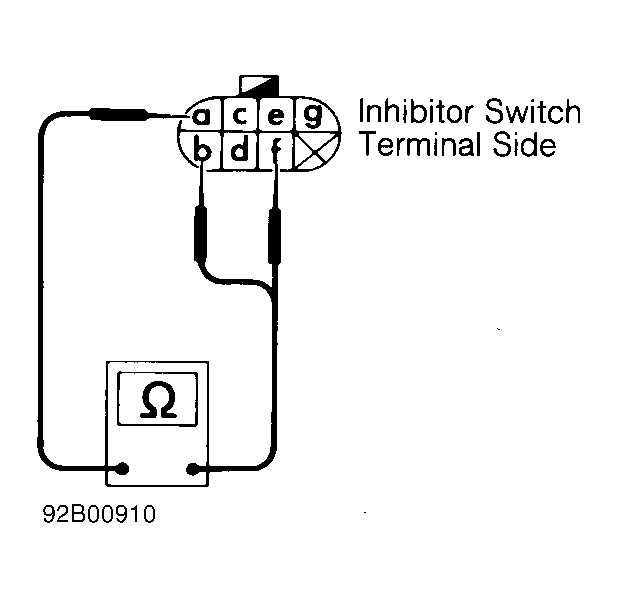

Fig 1: Identifying Inhibitor Switch Terminals
G92B00910Courtesy of NISSAN MOTOR CO., U.S.A.
