DTC 16: Traction Control System (TCS) Signal
- Check Input Signal Circuit

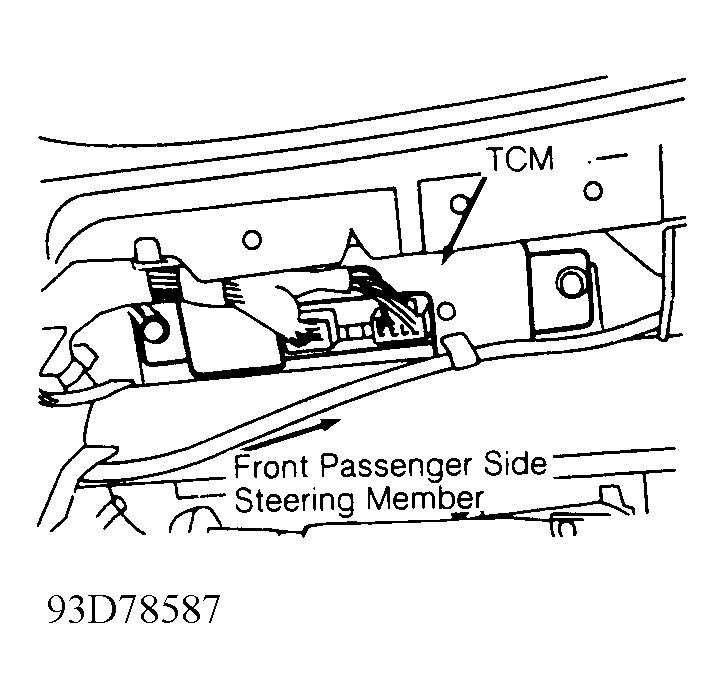

- Turn ignition off. Disconnect ECM harness connector and Traction Control Module (TCM) 20-pin harness connector. Check harness continuity between ECM terminal No. 36 and TCM terminal No. 7 (Red/Green wire). See Fig 1
and Fig 2
. If continuity is present, go to next step. If continuity is not present, verify harness and connector continuity between ECM and TCM. Repair harness or connectors as necessary.
- Check Component
- Inspect TCS function. See TRACTION CONTROL SYSTEM
article in the BRAKES section. Replace TCS component(s) if necessary and perform FINAL CHECK.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
