Driver's Switch

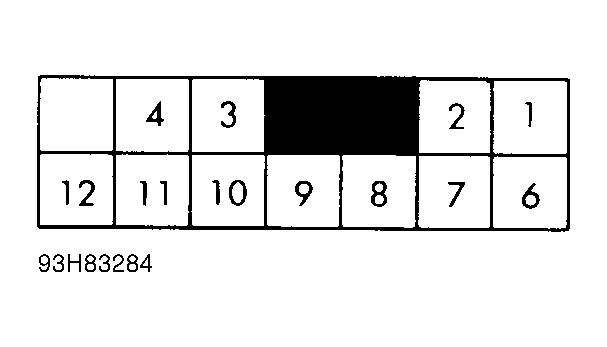

- Unplug connector from switch. See Fig 1 . With front/rear switch held in FORWARD position, continuity should exist between terminals No. 4 and No. 12. With switch held in REAR position, continuity should exist between terminals No. 11 and No. 12. No continuity should exist with switch released.
- With recline switch held in FORWARD position, continuity should exist between terminals No. 3 and No. 12. With switch held in REAR position, continuity should exist between terminals No. 10 and No. 12. No continuity should exist with switch released.
- With front lift switch held in UP position, continuity should exist between terminals No. 9 and No. 12. With switch held in DOWN position, continuity should exist between terminals No. 8 and No. 12. No continuity should exist with switch released.
- With rear lift switch held in UP position, continuity should exist between terminals No. 2 and No. 12. With switch held in DOWN position, continuity should exist between terminals No. 7 and No. 12. No continuity should exist with switch released.
- With switch held in CANCEL position, continuity should exist between terminals No. 1 and No. 6. No continuity should exist with switch released. Replace switch if continuity is not as specified.
