Driver's Switch

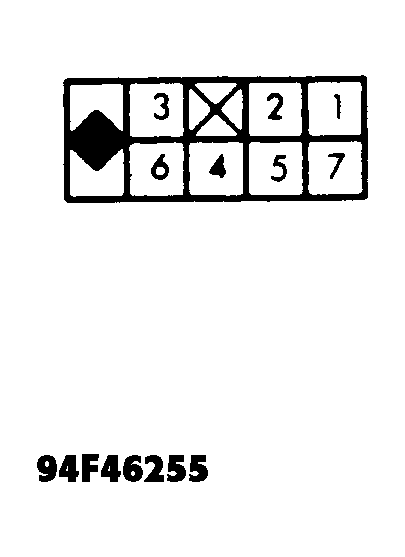

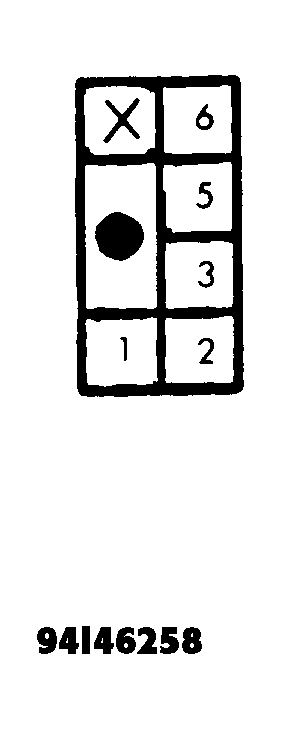

  1. Unplug driver's switch terminal in main console. With switch in UP (manual) position, continuity should exist between terminals No. 1 and 2. See Figure and Figure. Continuity should not exist with switch released.
  2. With switch in DOWN (manual) position, continuity should exist between terminals No. 1 and 3. Continuity should not exist with switch released.
  3. With switch in DOWN (auto) position, continuity should exist between terminals No. 1, 3, and 4. Continuity should not exist with switch released. Replace switch if continuity is not as specified.
