Local Control Unit Number Table

LOCAL CONTROL UNIT (LCU) NO.

LCU No. Control Unit Name
LCU 01-A Front Power Seat Switch Assembly (LH)
LCU 01-B Front Power Window Control (LH)
LCU 01-C Door Mirror Control Unit (RH)
LCU 02-A Front Power Seat Switch Assembly (RH)
LCU 02-B Front Power Window Control Unit (RH)
LCU 02-C Door Mirror Control Unit (LH)
LCU 03 Rear Power Window Control Unit (RH)
LCU 04 Rear Power Window Control Unit (LH)
LCU 05 Front Power Seat Control Unit (LH)
LCU 06 Front Power Seat Control Unit (RH)
LCU 07 Multi-Remote Control Unit

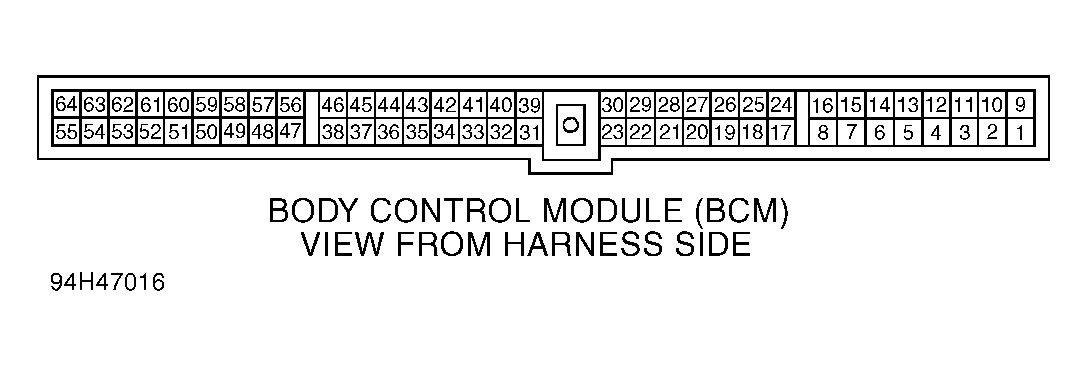

Fig 1: Identifying BCM Connector Terminals (Q45 - Harness Side)
G94H47016Courtesy of NISSAN MOTOR CO., U.S.A.
