Main Switch

Using an ohmmeter, check continuity between switch terminals No. 1 and 2. See Fig 1. With switch in ON position, continuity should exist. With switch in OFF position, continuity should not exist.

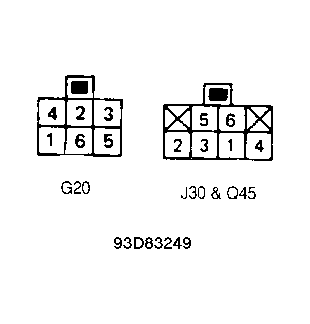

Fig 1: Identifying Main Switch Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.
