Passenger's Switch

  1. Unplug connector from switch. See Fig 1 . With front/rear switch held in FORWARD position, continuity should exist between terminals No. 31 and No. 35. With switch held in REAR position, continuity should exist between terminals No. 32 and No. 35. No continuity should exist with switch released.
  2. With recline switch held in FORWARD position, continuity should exist between terminals No. 33 and No. 35. With switch held in REAR position, continuity should exist between terminals No. 34 and No. 35. No continuity should exist with switch released. Replace switch if continuity is not as specified.

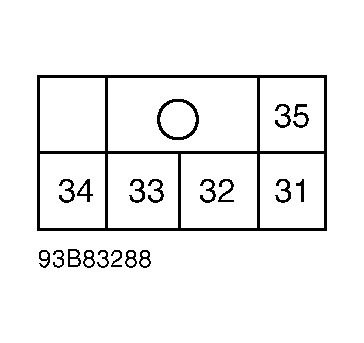

Fig 1: Identifying Passenger's Seat Switch Terminals (Q45)
G93B83288
