System Testing

NOTE: The following figures are courtesy of Nissan Motor Co., U.S.A.

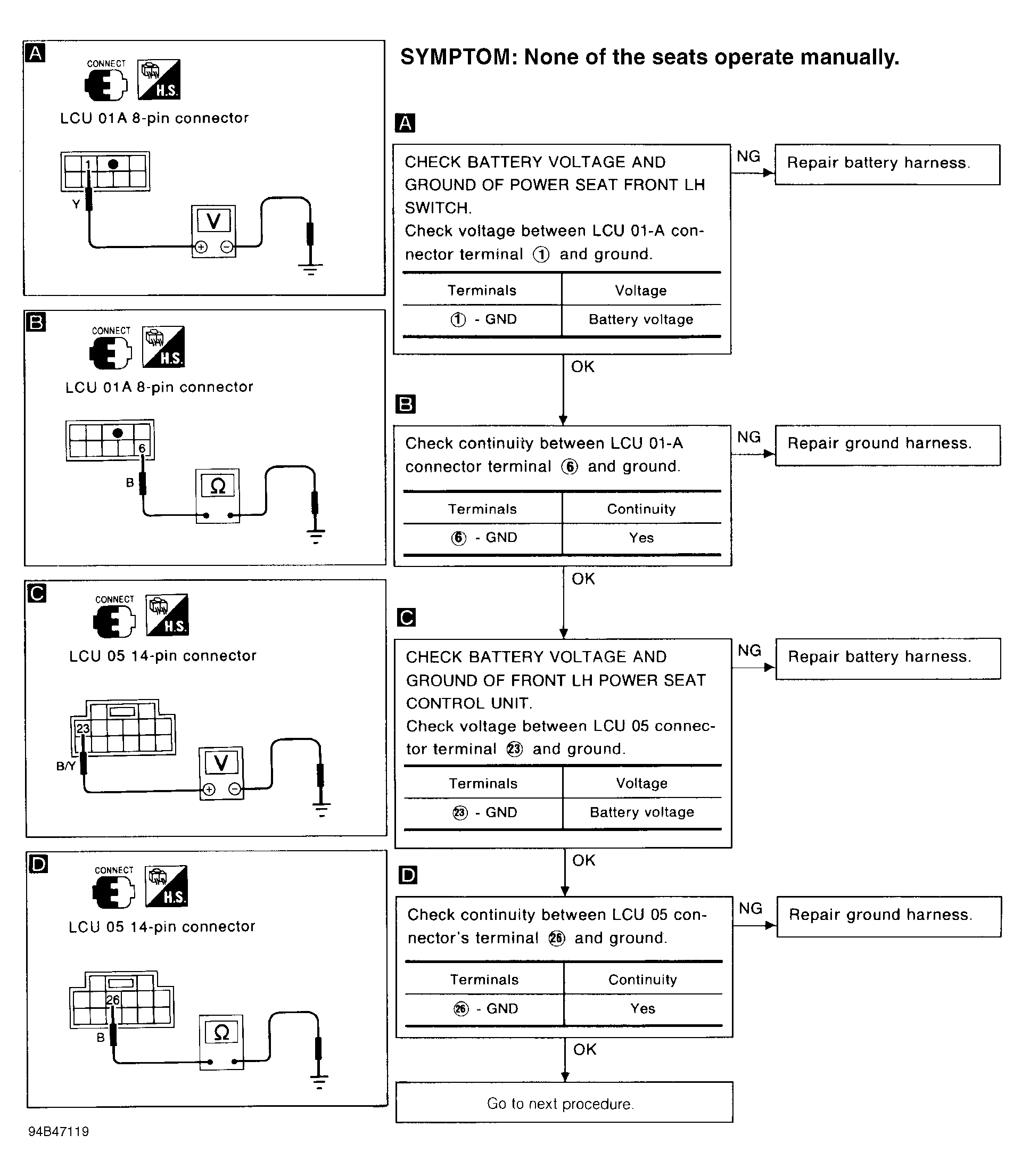

Fig 1: Diagnostic Procedure No. 1 (Q45) None Of the Seat Operate Manually

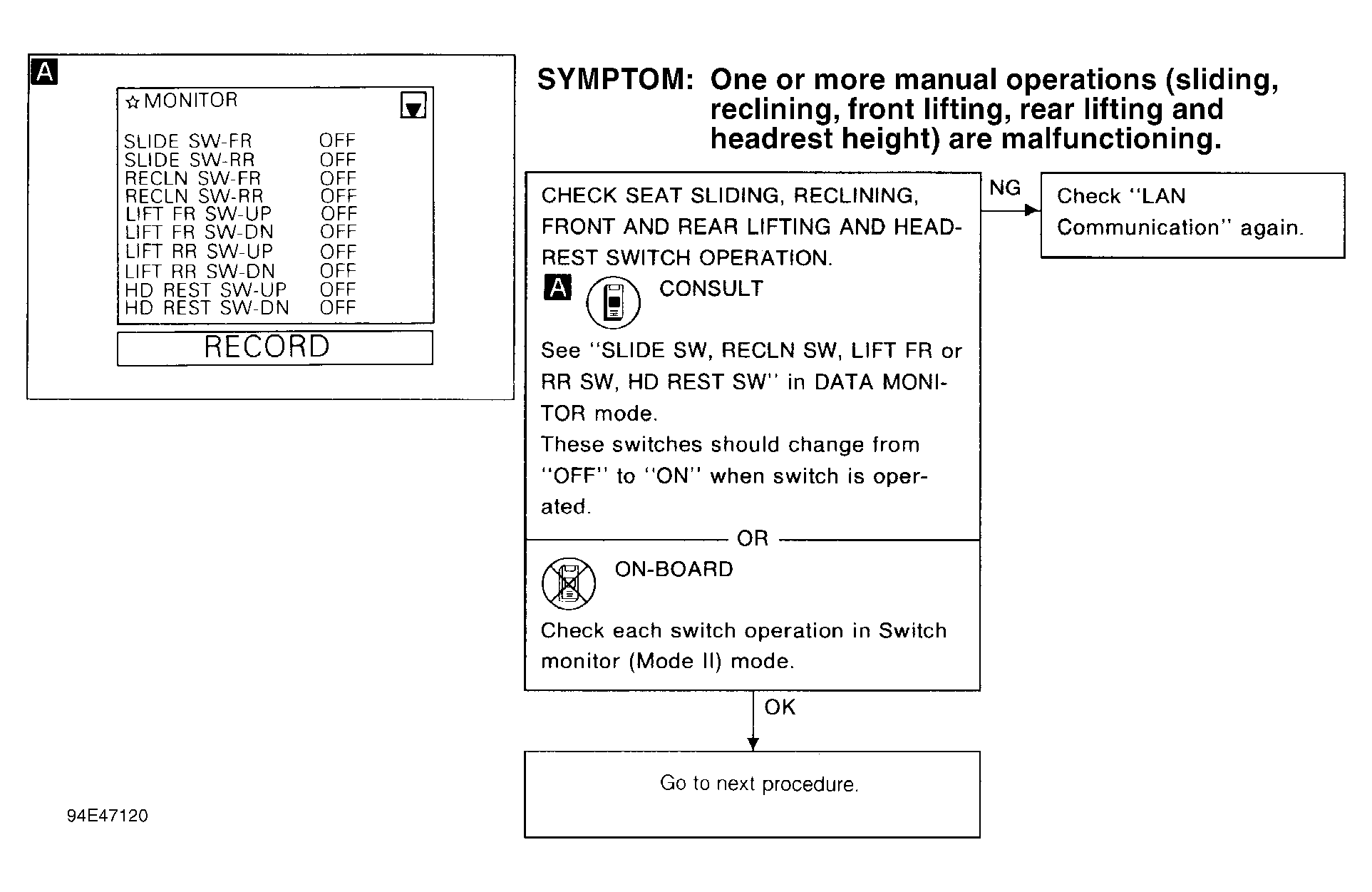

Fig 2: Diagnostic Procedure No. 2 (Q45) One Or More Manual Operations Are Malfunctioning

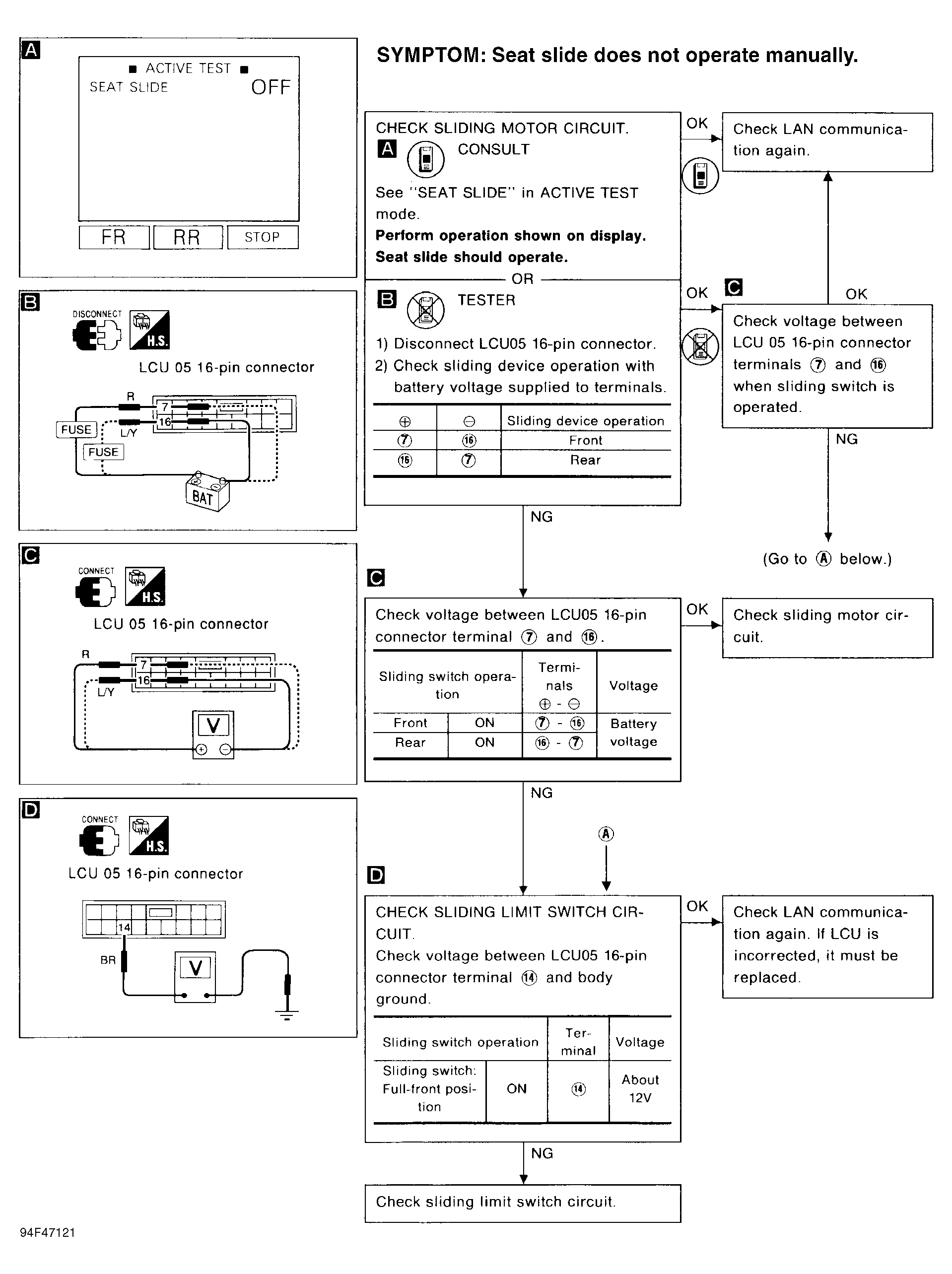

Fig 3: Diagnostic Procedure No. 3 (Q45) Seat Slide Does Not Operate Manually

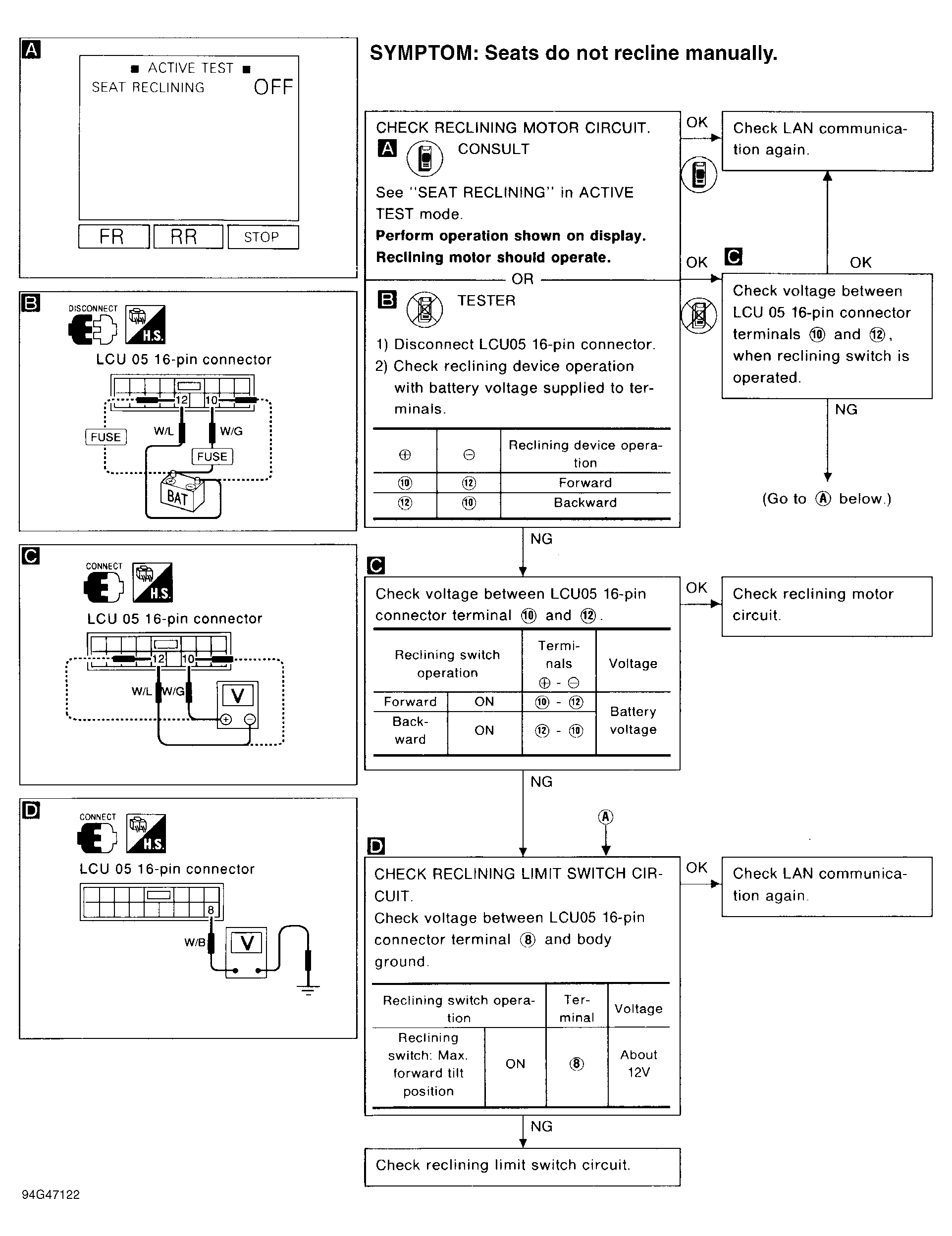

Fig 4: Diagnostic Procedure No. 4 (Q45) Seats Do Not Recline Manually

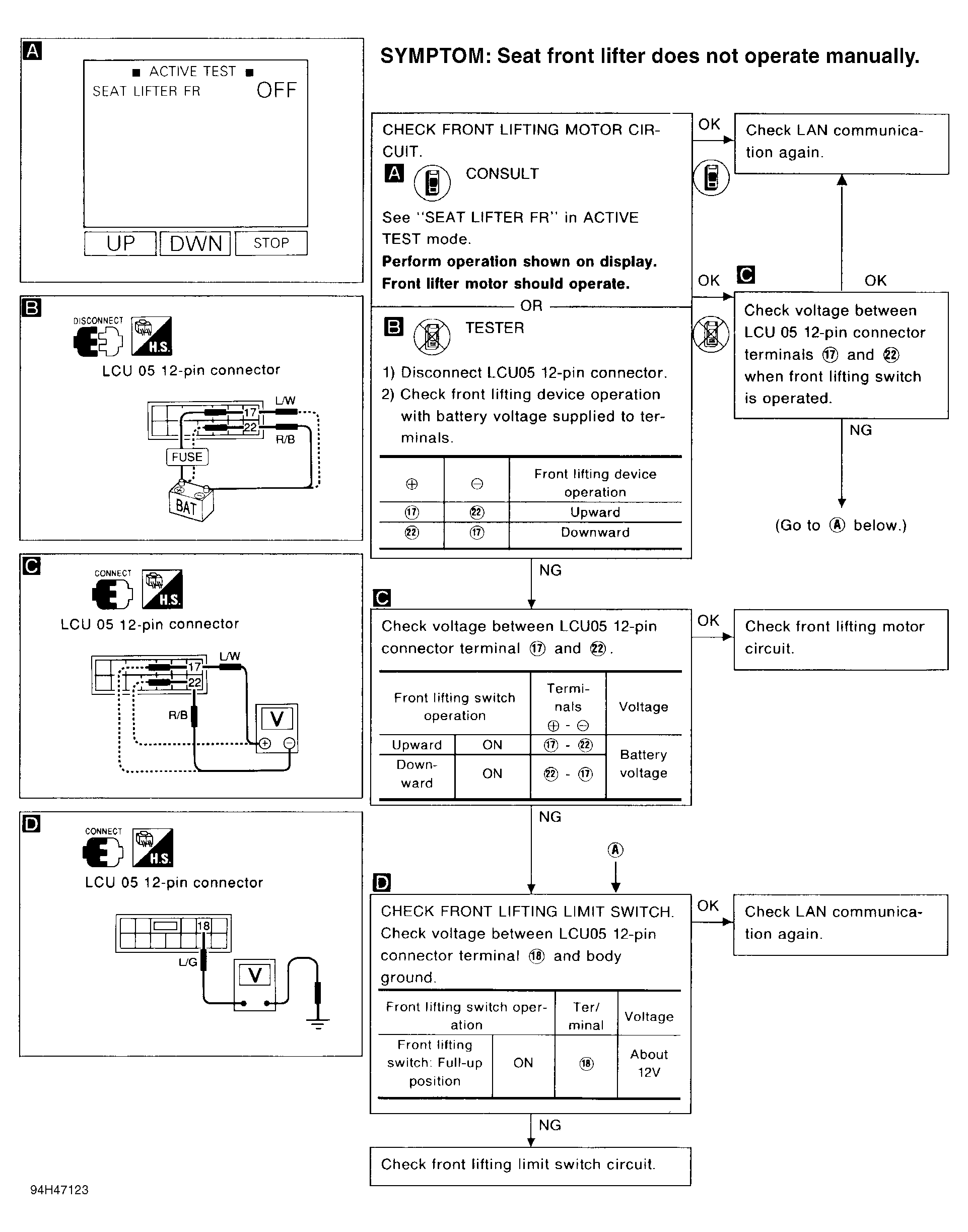

Fig 5: Diagnostic Procedure No. 5 (Q45) Seat Front Lifter Does Not Operate Manually

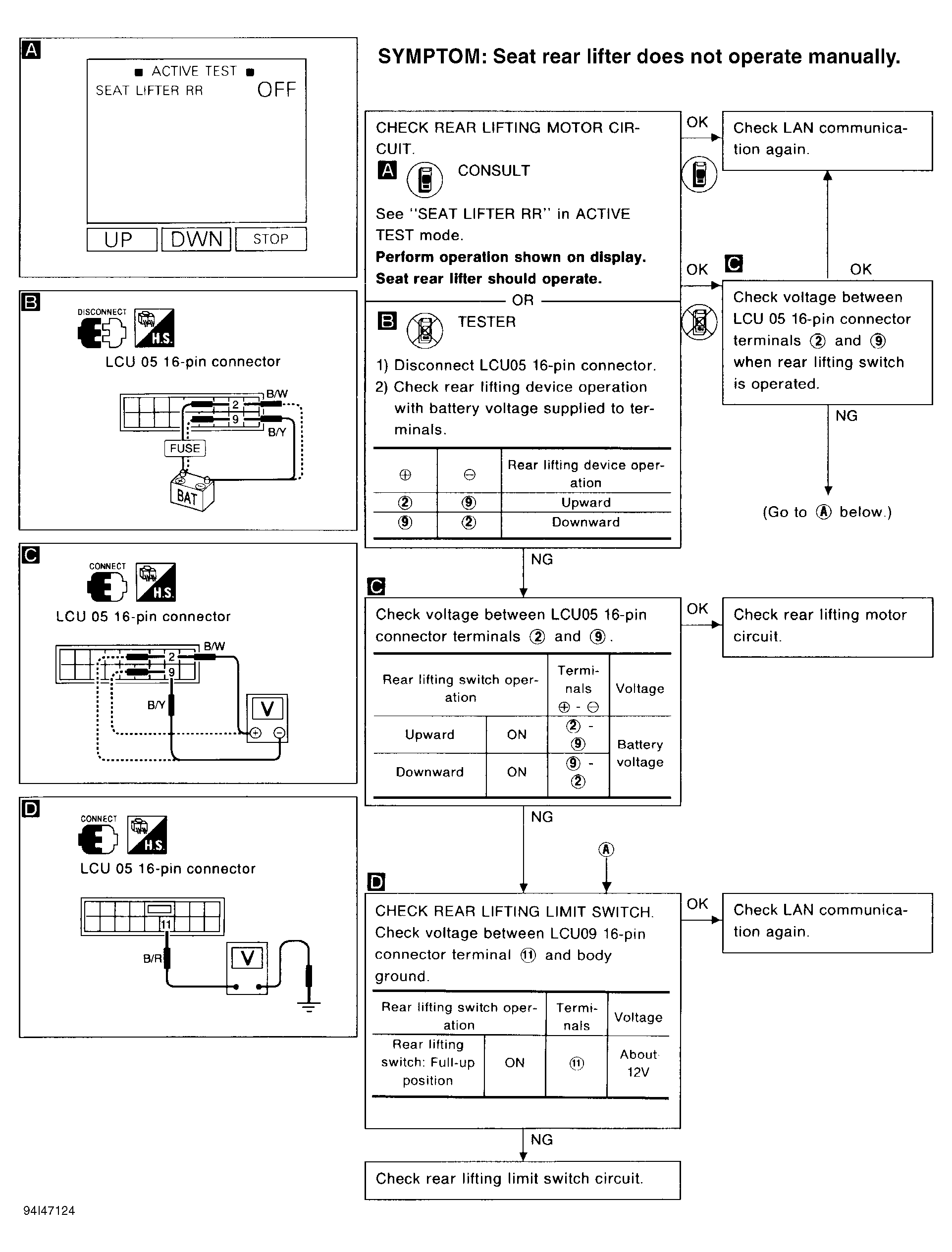

Fig 6: Diagnostic Procedure No. 6 (Q45) Seat Rear Lifter Does Not Operate Manually

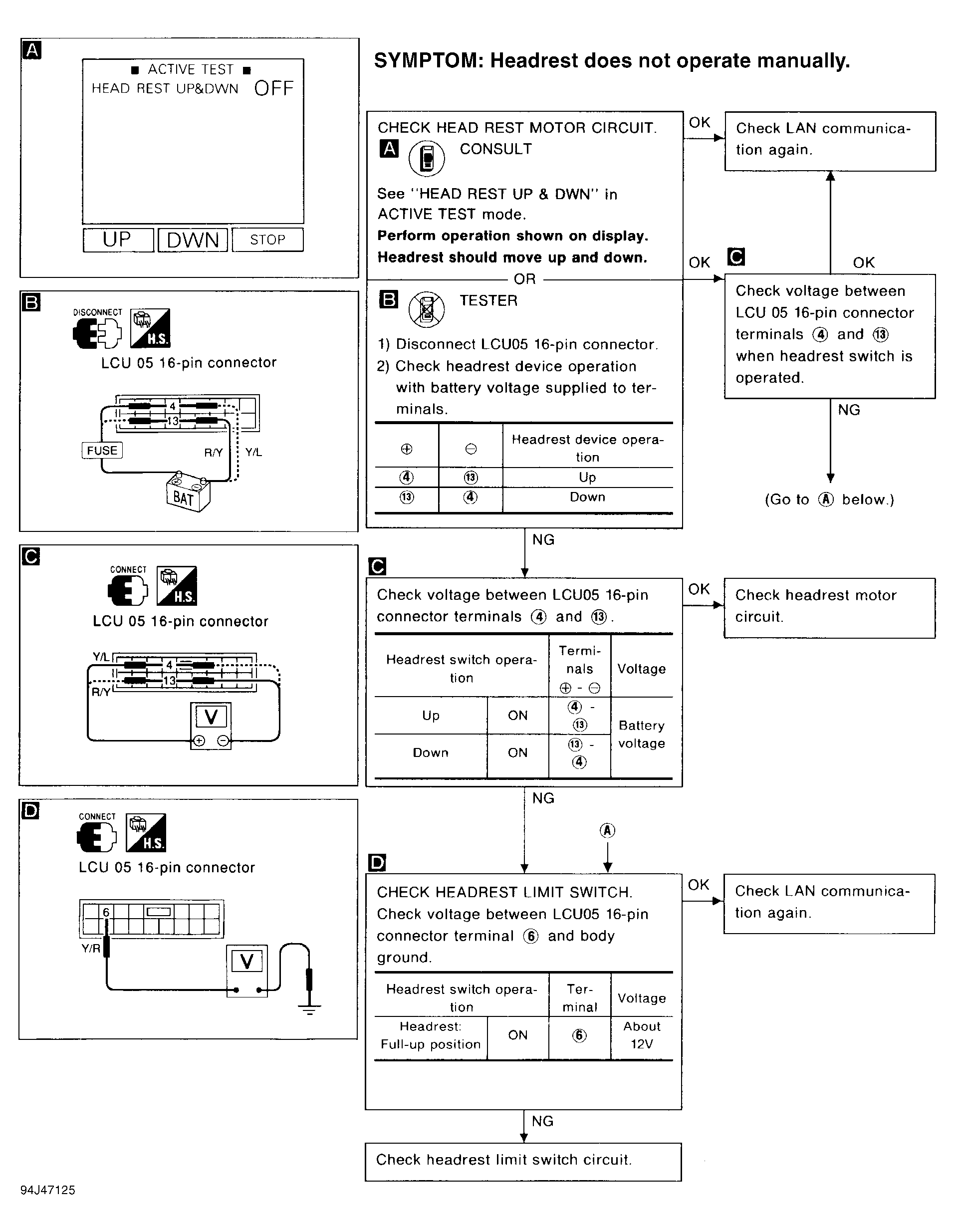

Fig 7: Diagnostic Procedure No. 7 (Q45) Headrest Does Not Operate Manually
