Traction Control System: Self-Diagnostics

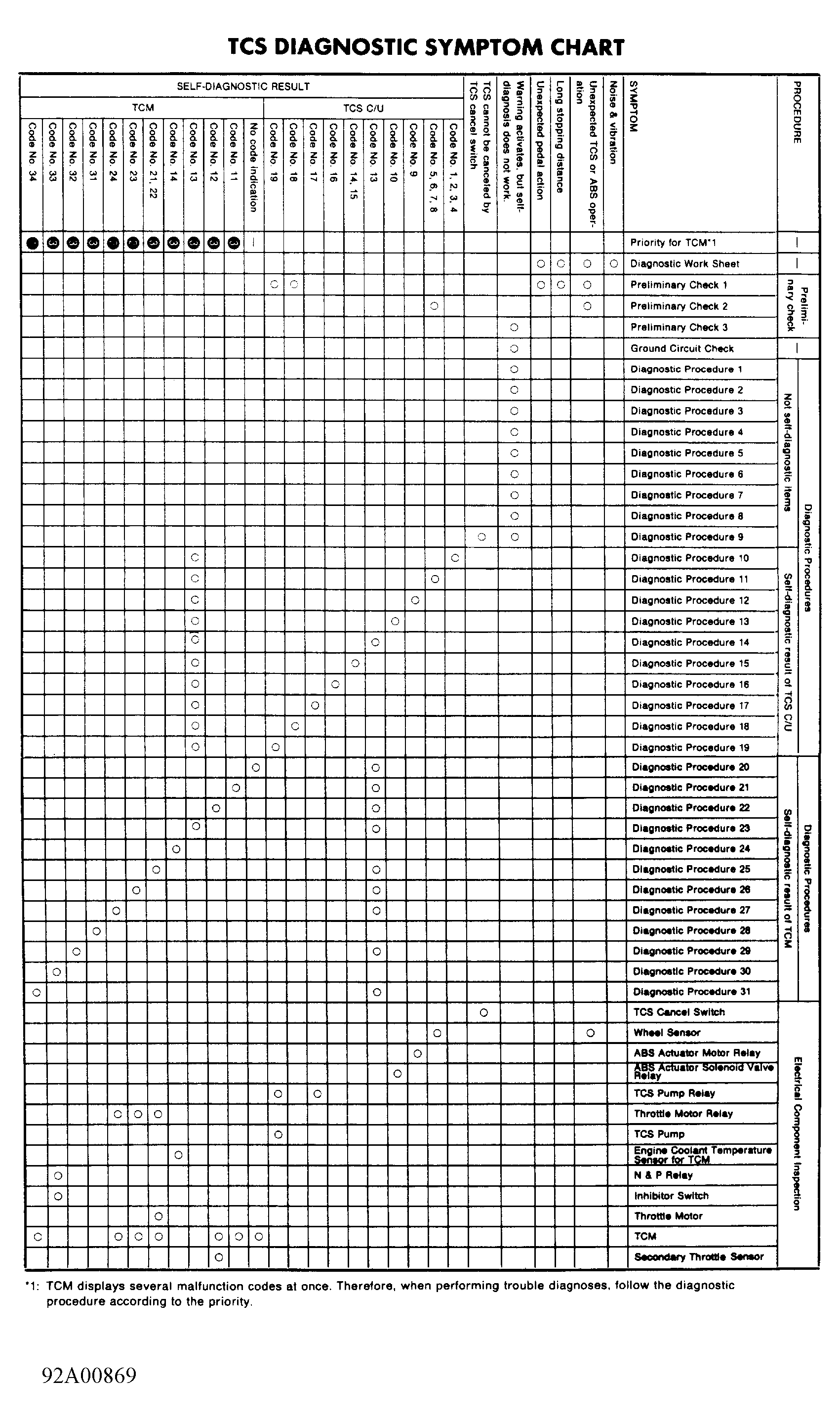

Fig 1: TCS Diagnostic Symptom Chart

G92A00869

Courtesy of NISSAN MOTOR CO., U.S.A.

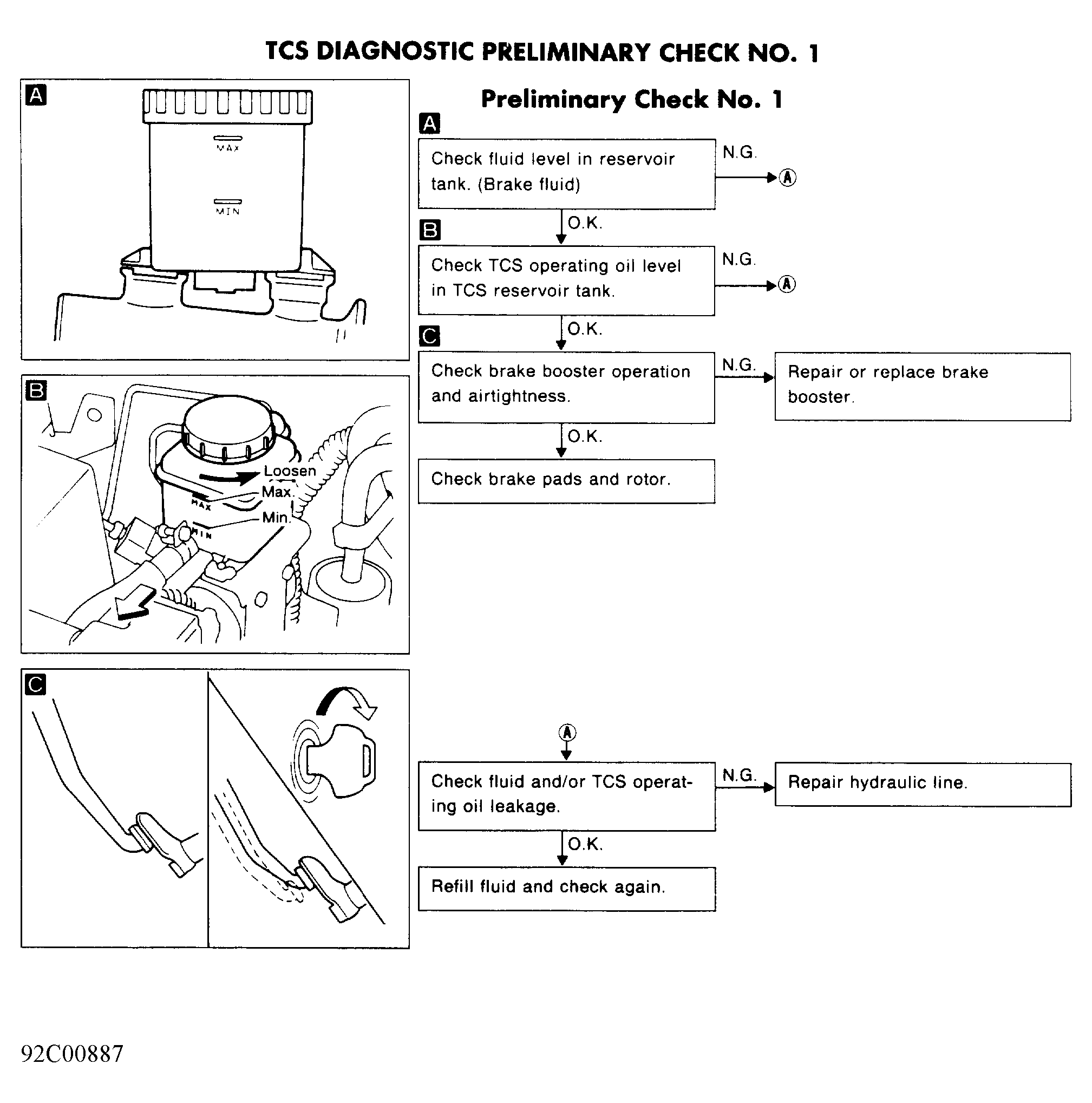

Fig 2: TCS Diagnostic Preliminary Check No. 1

G92C00887

Courtesy of NISSAN MOTOR CO., U.S.A.

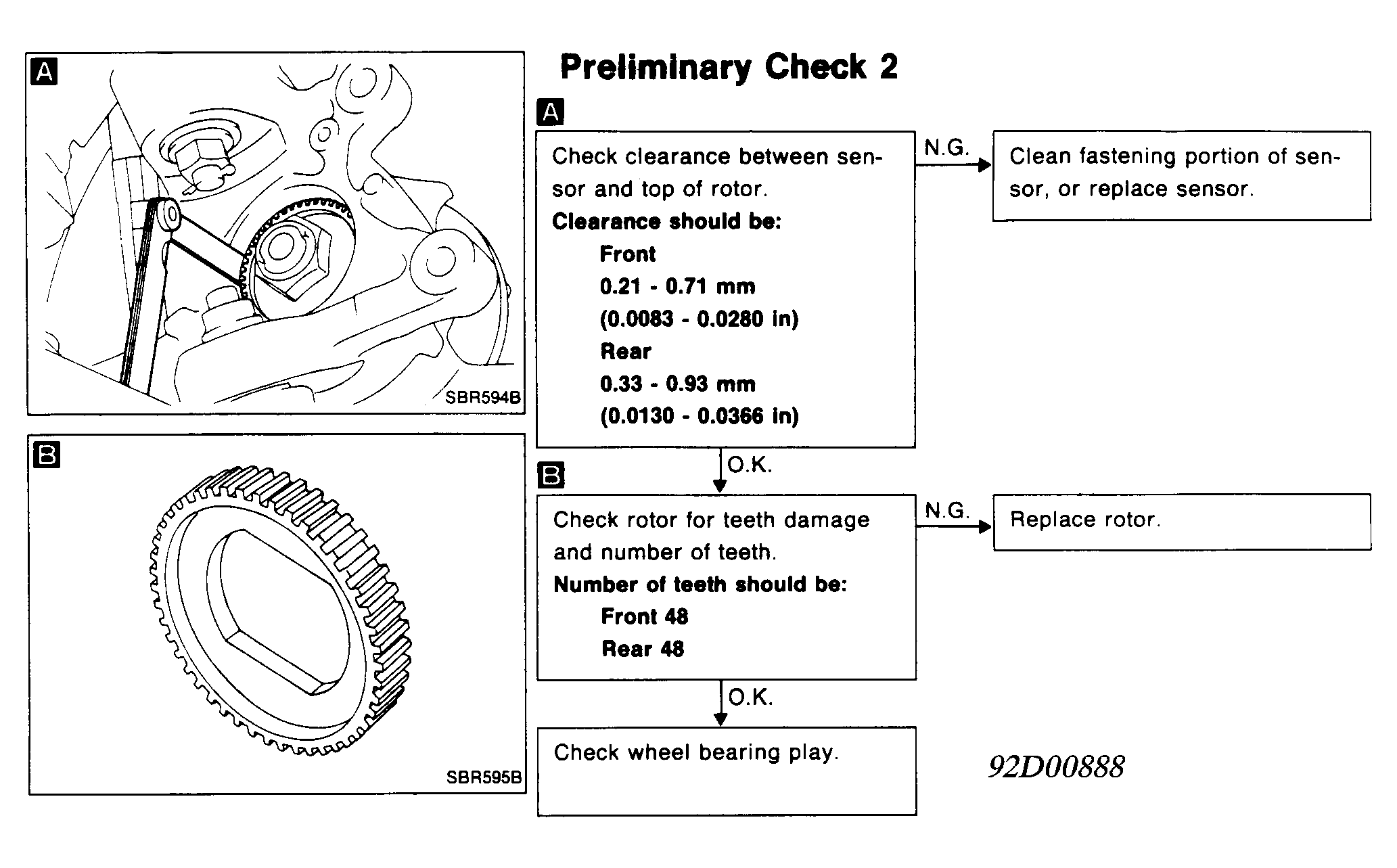

Fig 3: TCS Diagnostic Preliminary Checks No. 2

G92D00888

Courtesy of NISSAN MOTOR CO., U.S.A.

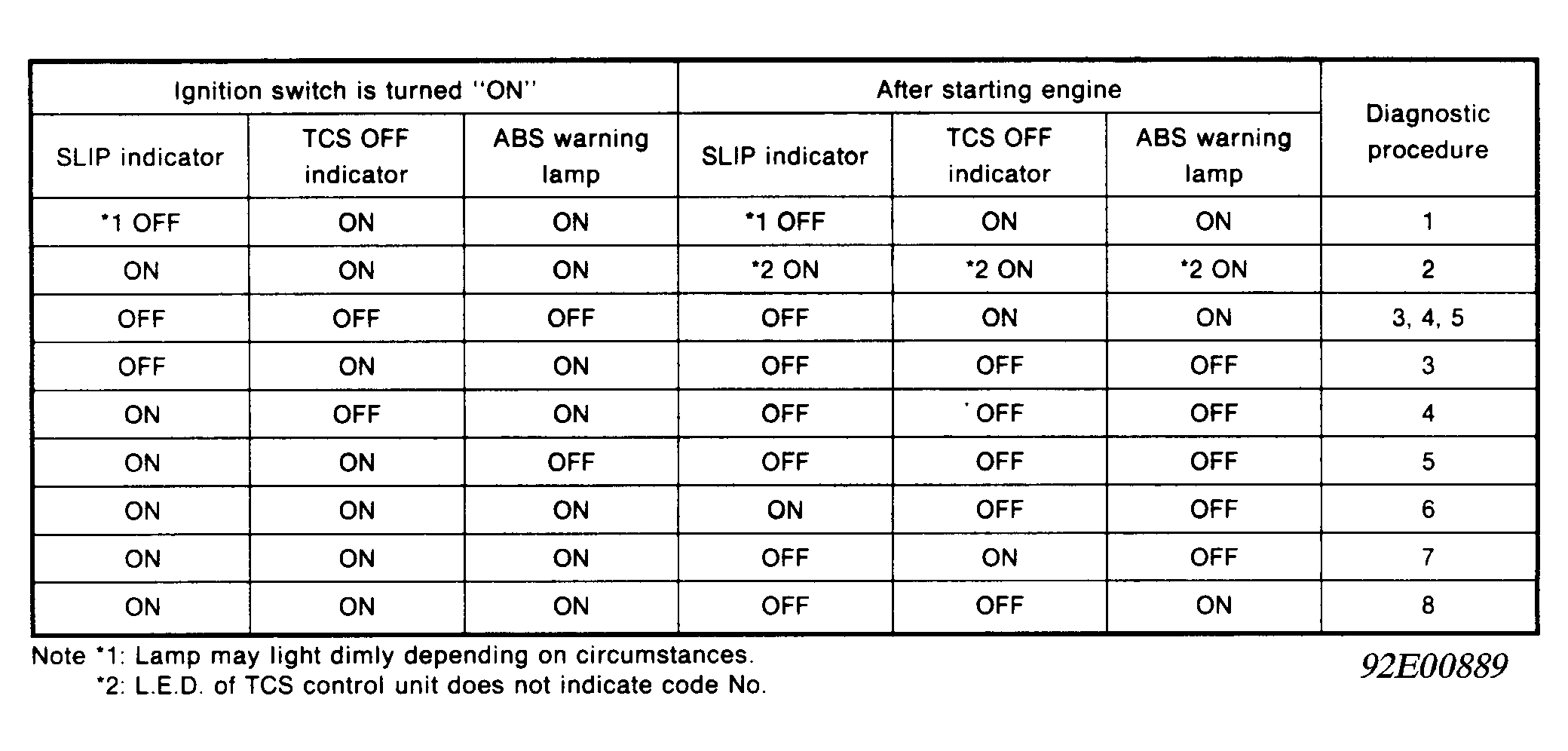

Fig 4: TCS Diagnostic Primary Check No. 3

G92E00889

Courtesy of NISSAN MOTOR CO., U.S.A.

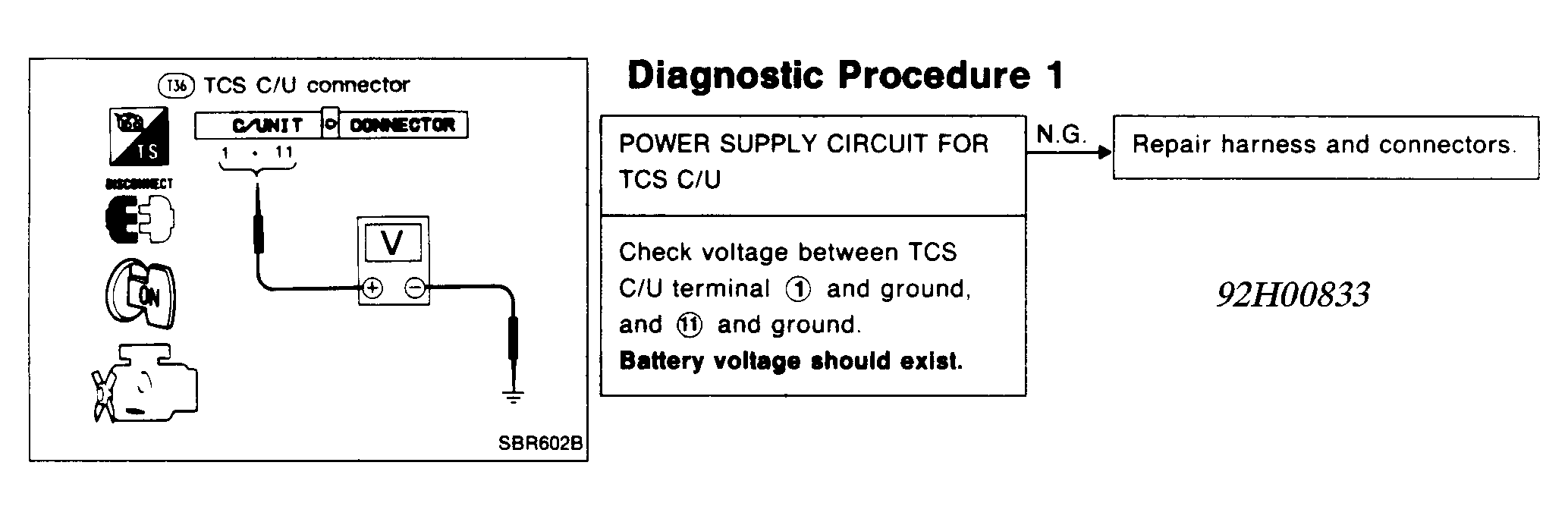

Fig 5: TCS Diagnostic Procedures No. 1

G92H00833

Courtesy of NISSAN MOTOR CO., U.S.A.

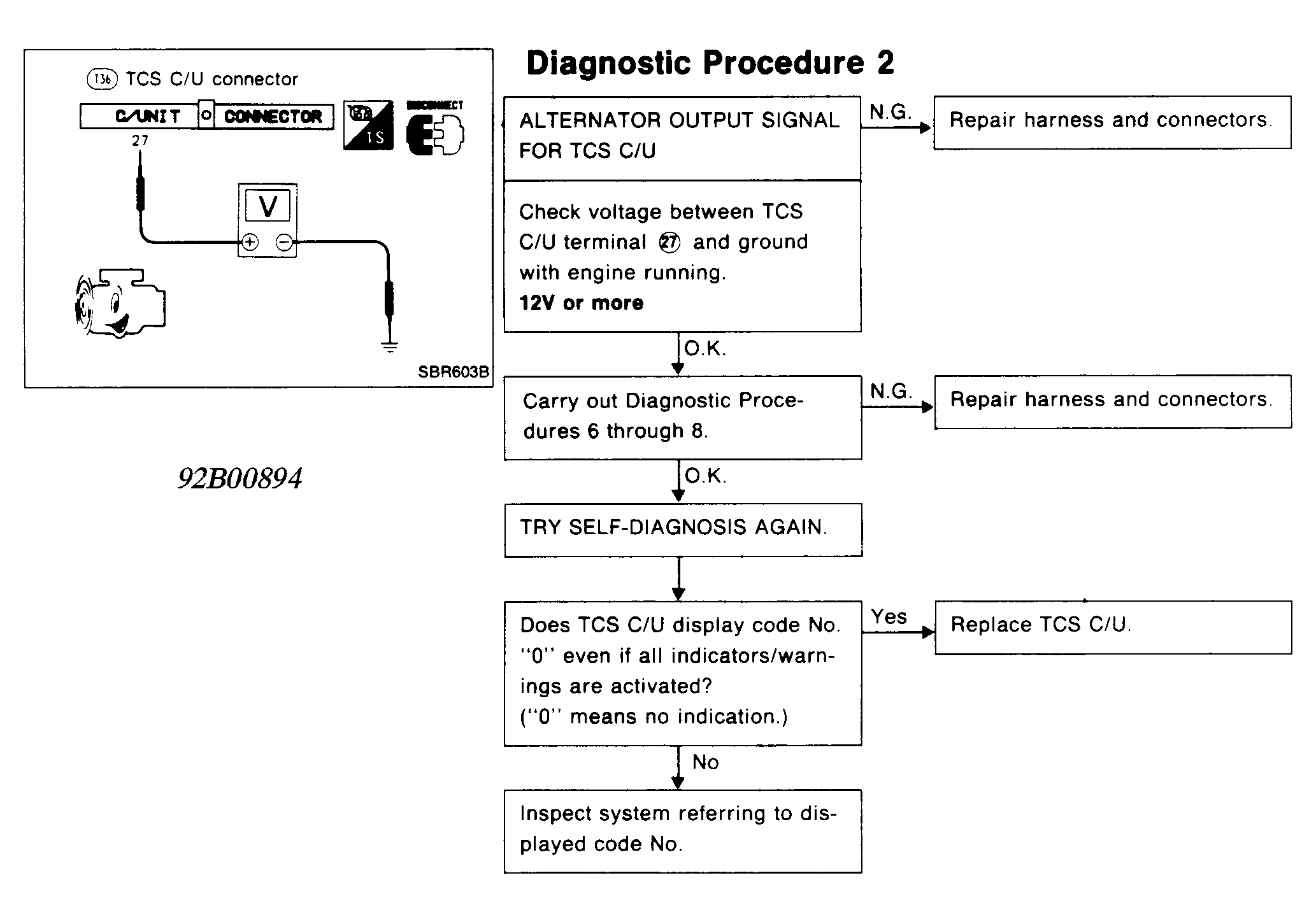

Fig 6: TCS Diagnostic Procedures No. 2

G92B00894

Courtesy of NISSAN MOTOR CO., U.S.A.

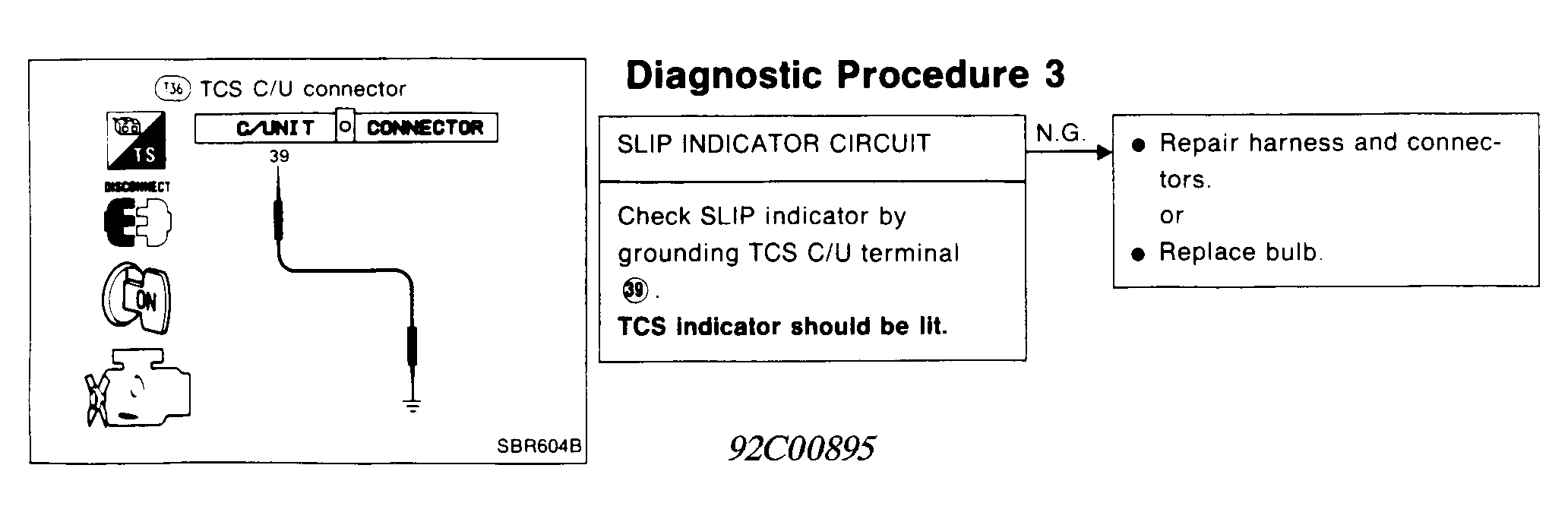

Fig 7: TCS Diagnostic Procedures No. 3

G92C00895

Courtesy of NISSAN MOTOR CO., U.S.A.

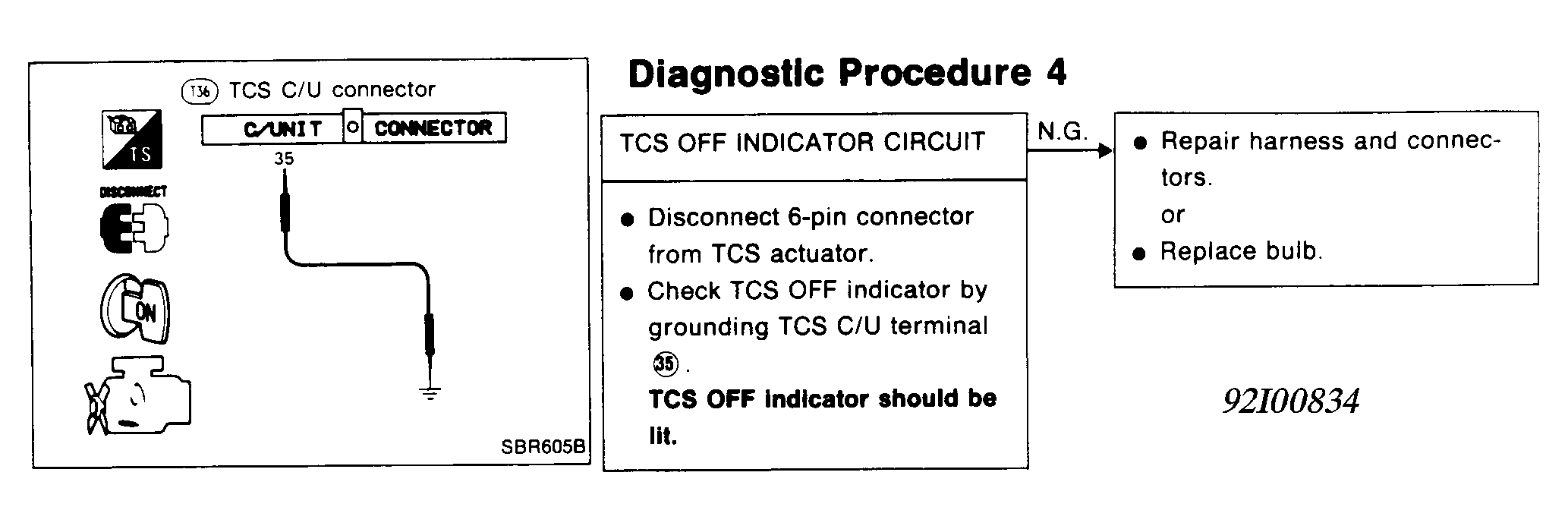

Fig 8: TCS Diagnostic Procedures No. 4

G92I00834

Courtesy of NISSAN MOTOR CO., U.S.A.

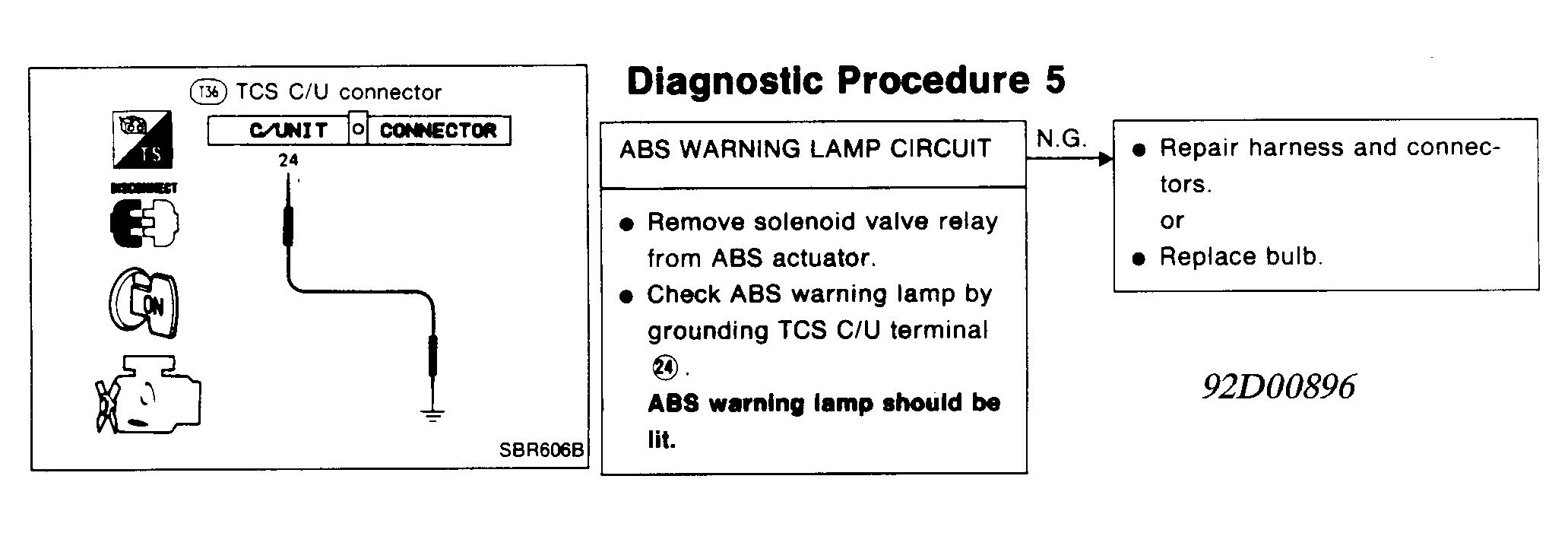

Fig 9: TCS Diagnostic Procedures No. 5

G92D00896

Courtesy of NISSAN MOTOR CO., U.S.A.

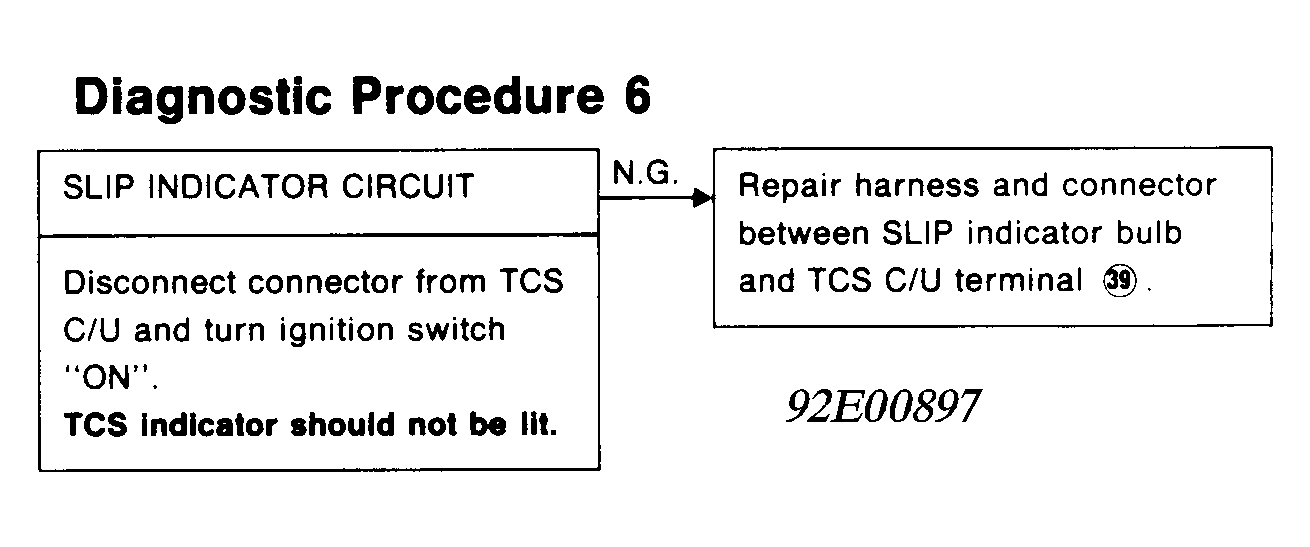

Fig 10: TCS Diagnostic Procedures No. 6

G92E00897

Courtesy of NISSAN MOTOR CO., U.S.A.

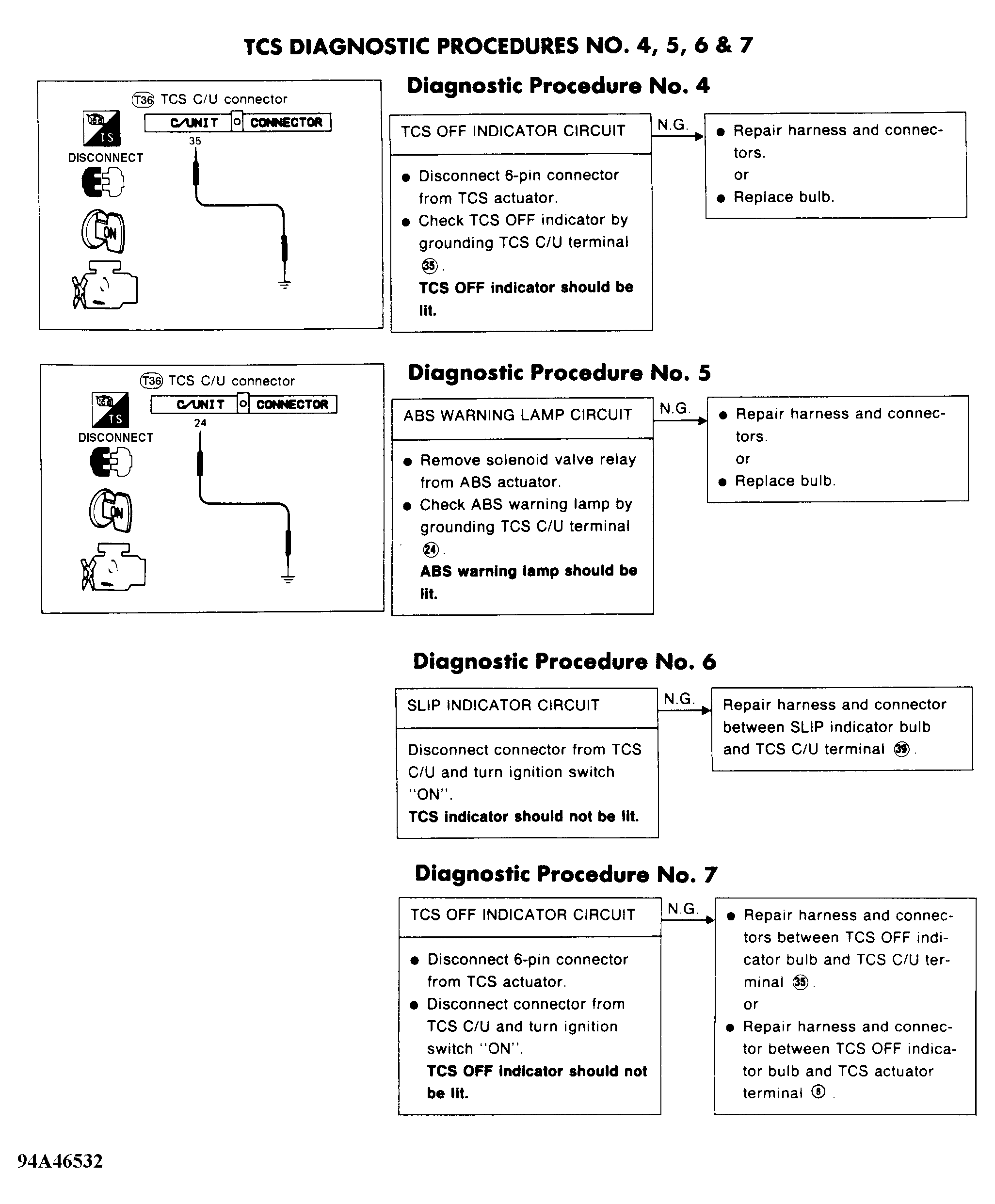

Fig 11: TCS Diagnostic Procedures No. 7

G94A46532

Courtesy of NISSAN MOTOR CO., U.S.A.

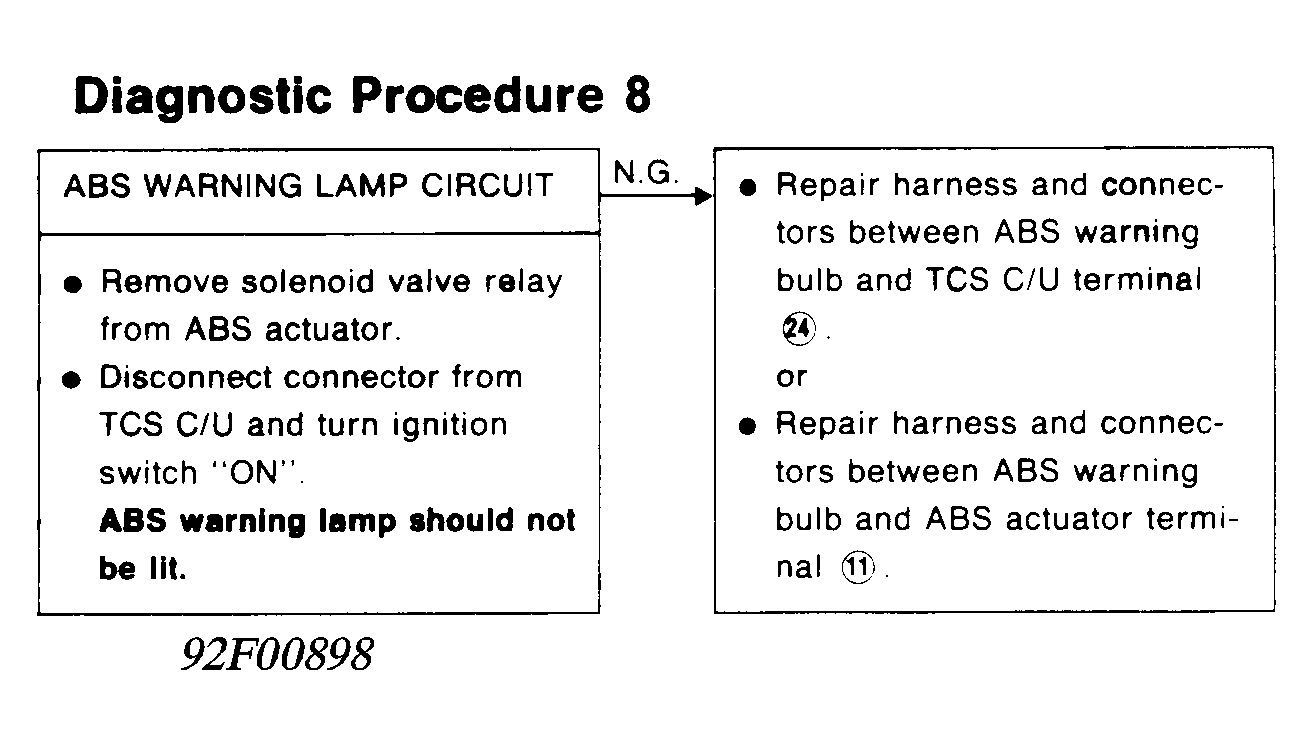

Fig 12: TCS Diagnostic Procedures No. 8

G92F00898

Courtesy of NISSAN MOTOR CO., U.S.A.

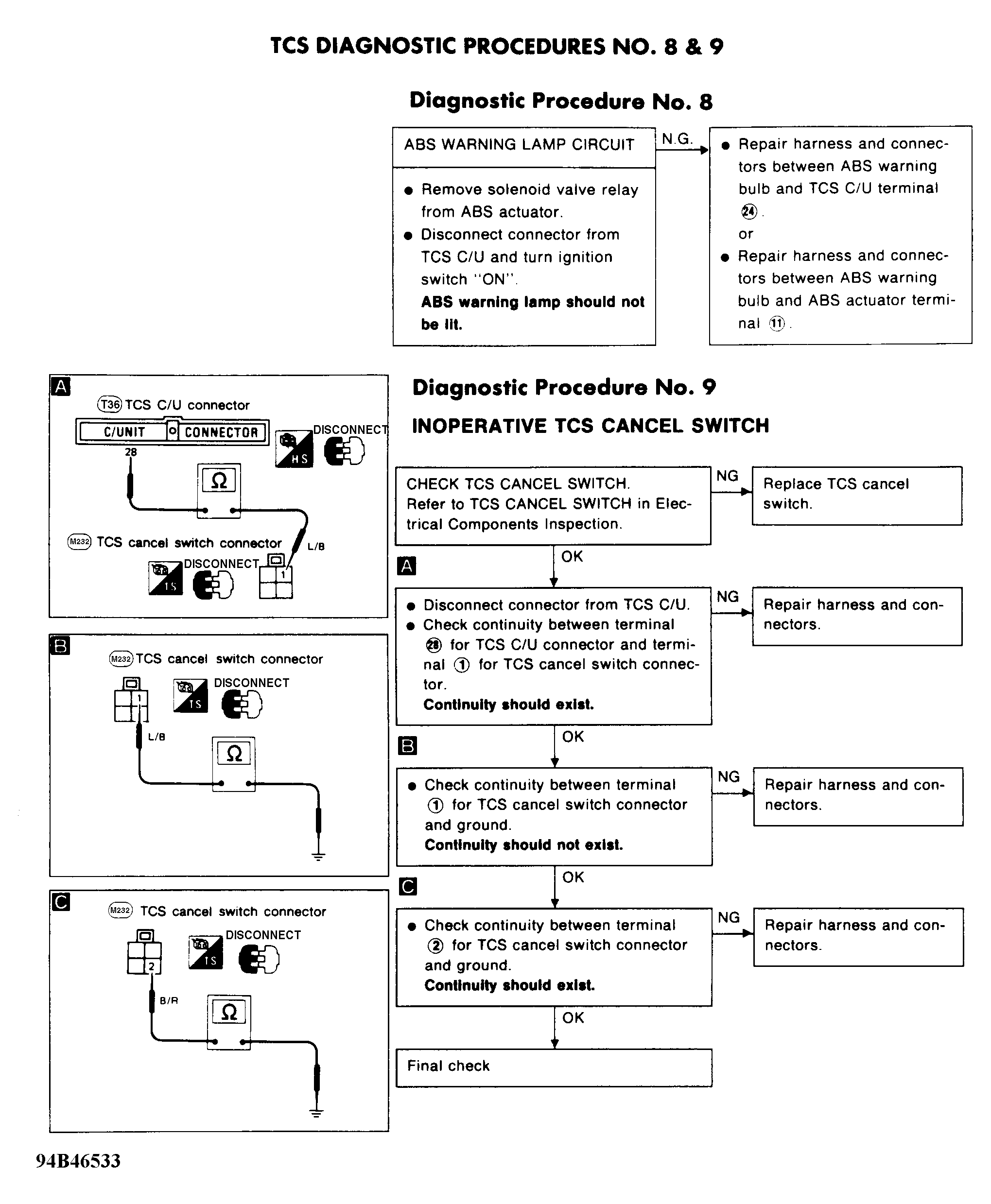

Fig 13: TCS Diagnostic Procedures No. 9

G94B46533

Courtesy of NISSAN MOTOR CO., U.S.A.

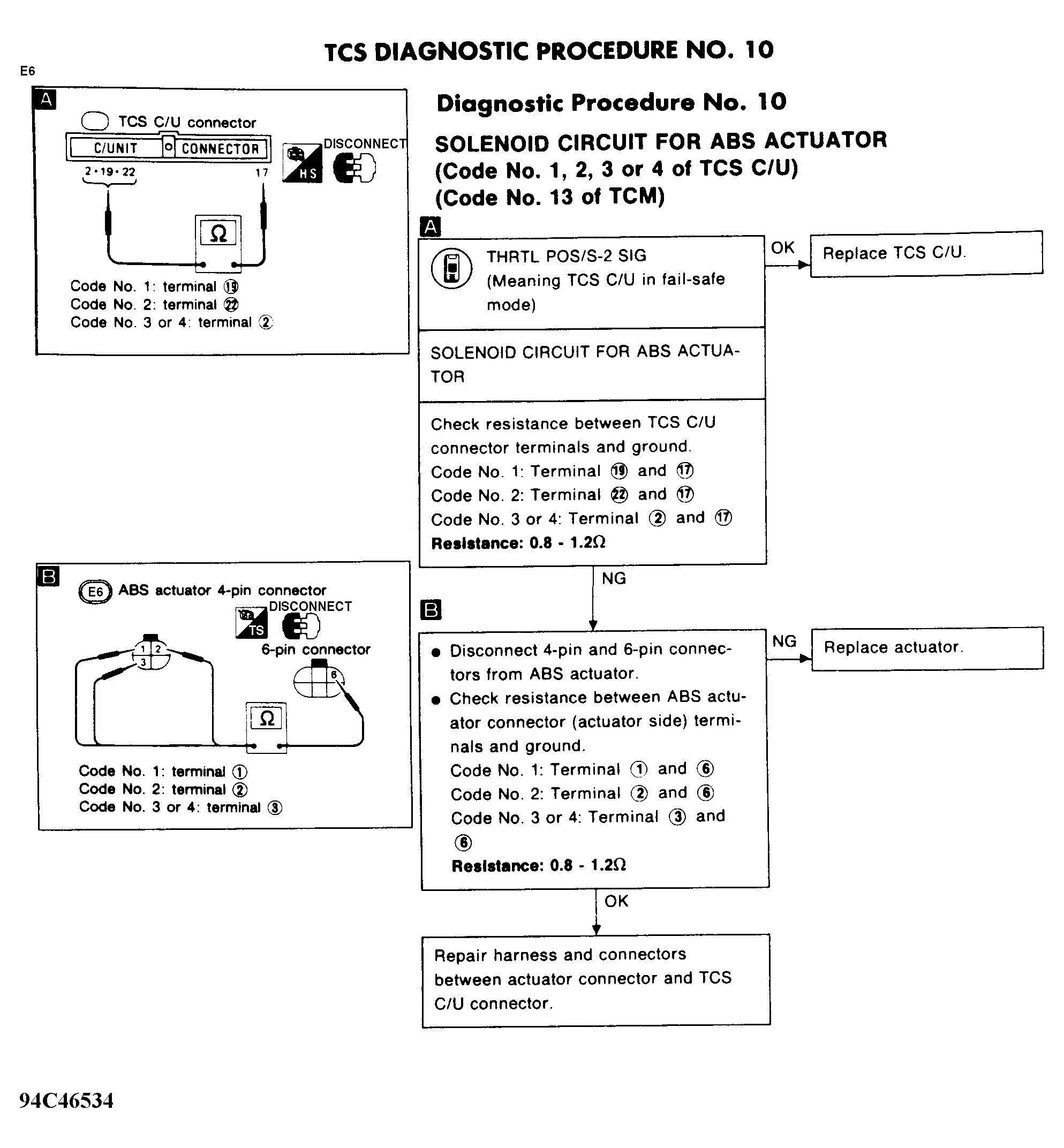

Fig 14: TCS Diagnostic Procedures No. 10

G94C46534

Courtesy of NISSAN MOTOR CO., U.S.A.

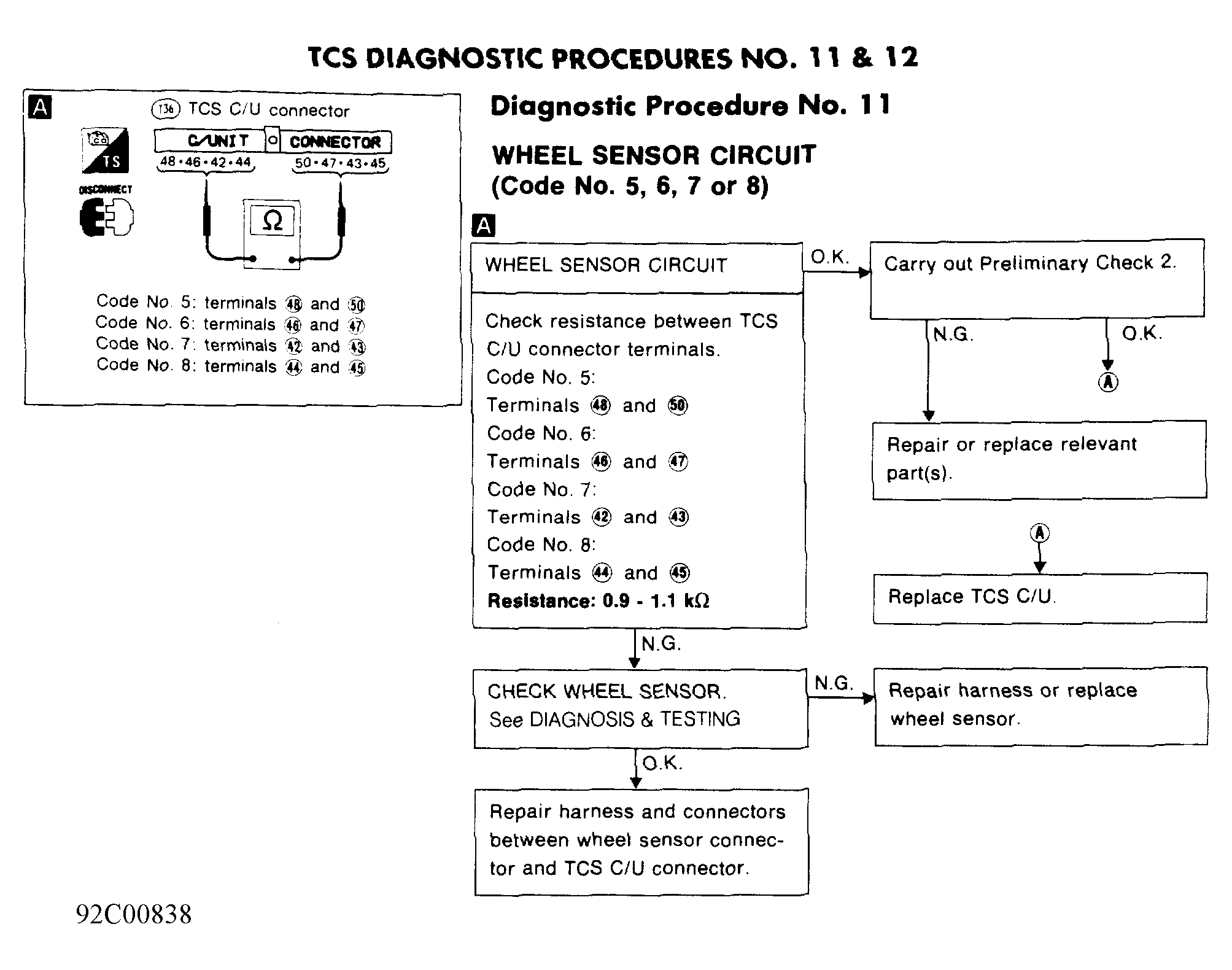

Fig 15: TCS Diagnostic Procedures No. 11

G92C00838

Courtesy of NISSAN MOTOR CO., U.S.A.

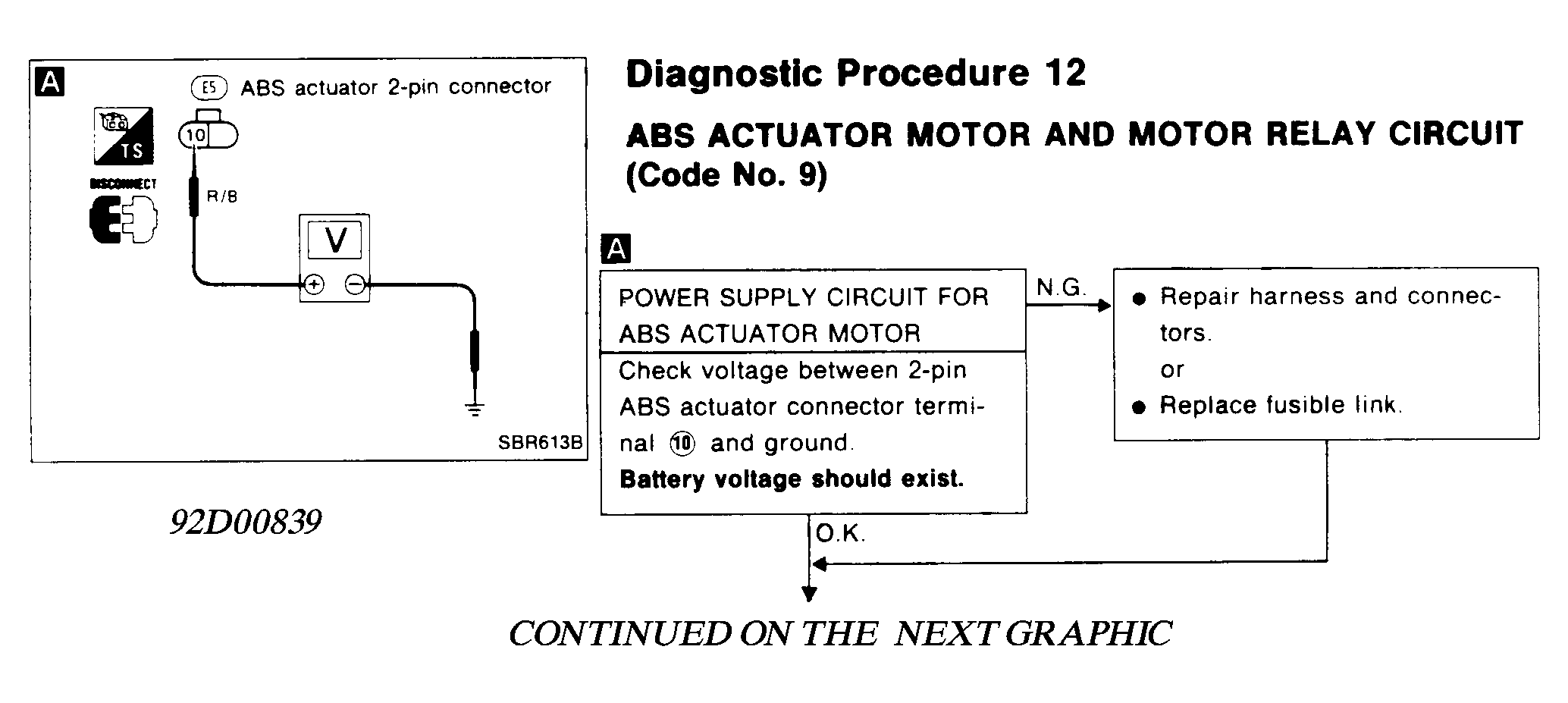

Fig 16: TCS Diagnostic Procedures No. 12 (1 Of 2)

G92D00839

Courtesy of NISSAN MOTOR CO., U.S.A.

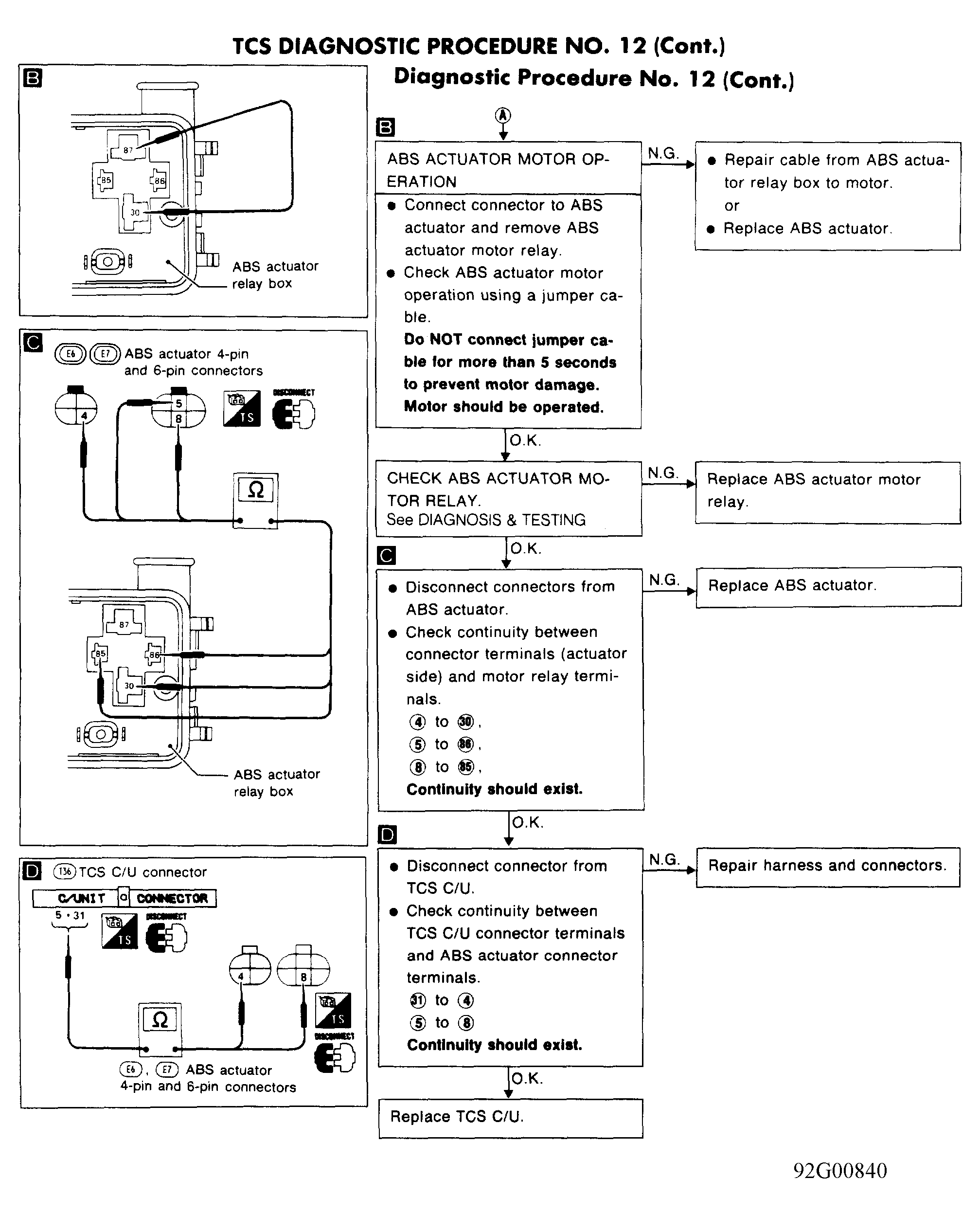

Fig 17: TCS Diagnostic Procedures No. 12 (2 Of 2)

G92G00840

Courtesy of NISSAN MOTOR CO., U.S.A.

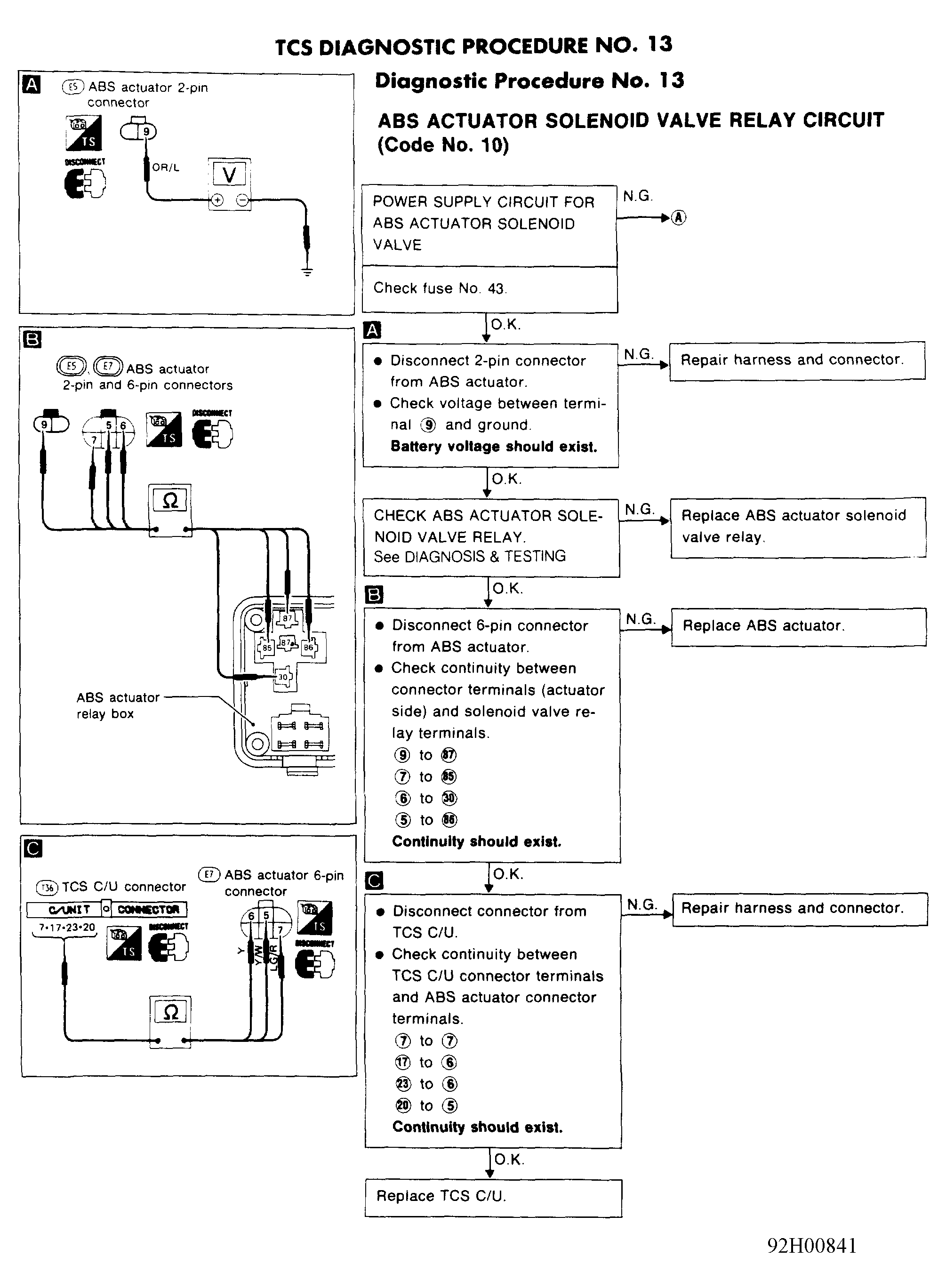

Fig 18: TCS Diagnostic Procedures No. 13 (1 Of 2)

G92H00841

Courtesy of NISSAN MOTOR CO., U.S.A.

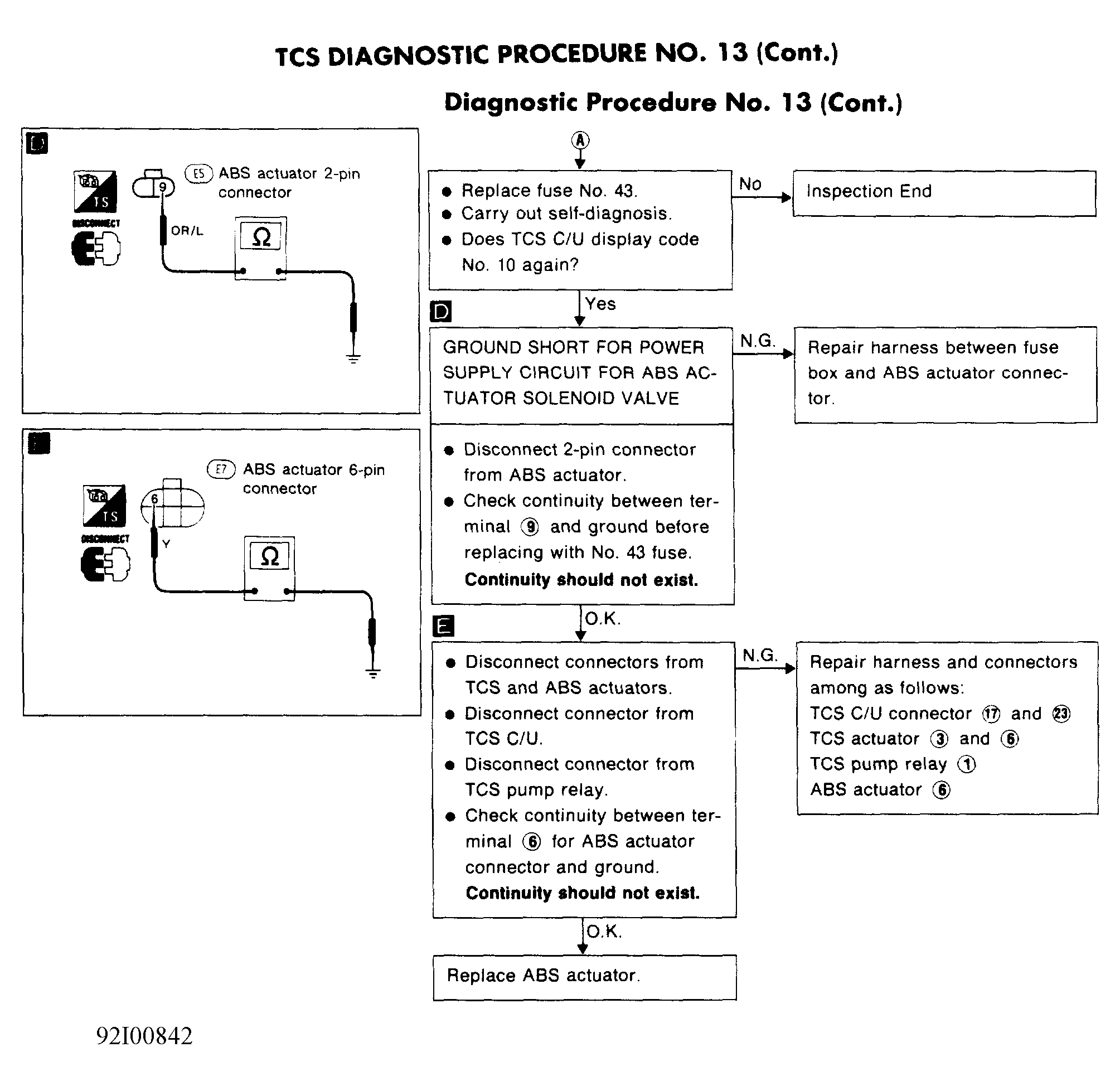

Fig 19: TCS Diagnostic Procedures No. 13 (2 Of 2)

G92I00842

Courtesy of NISSAN MOTOR CO., U.S.A.

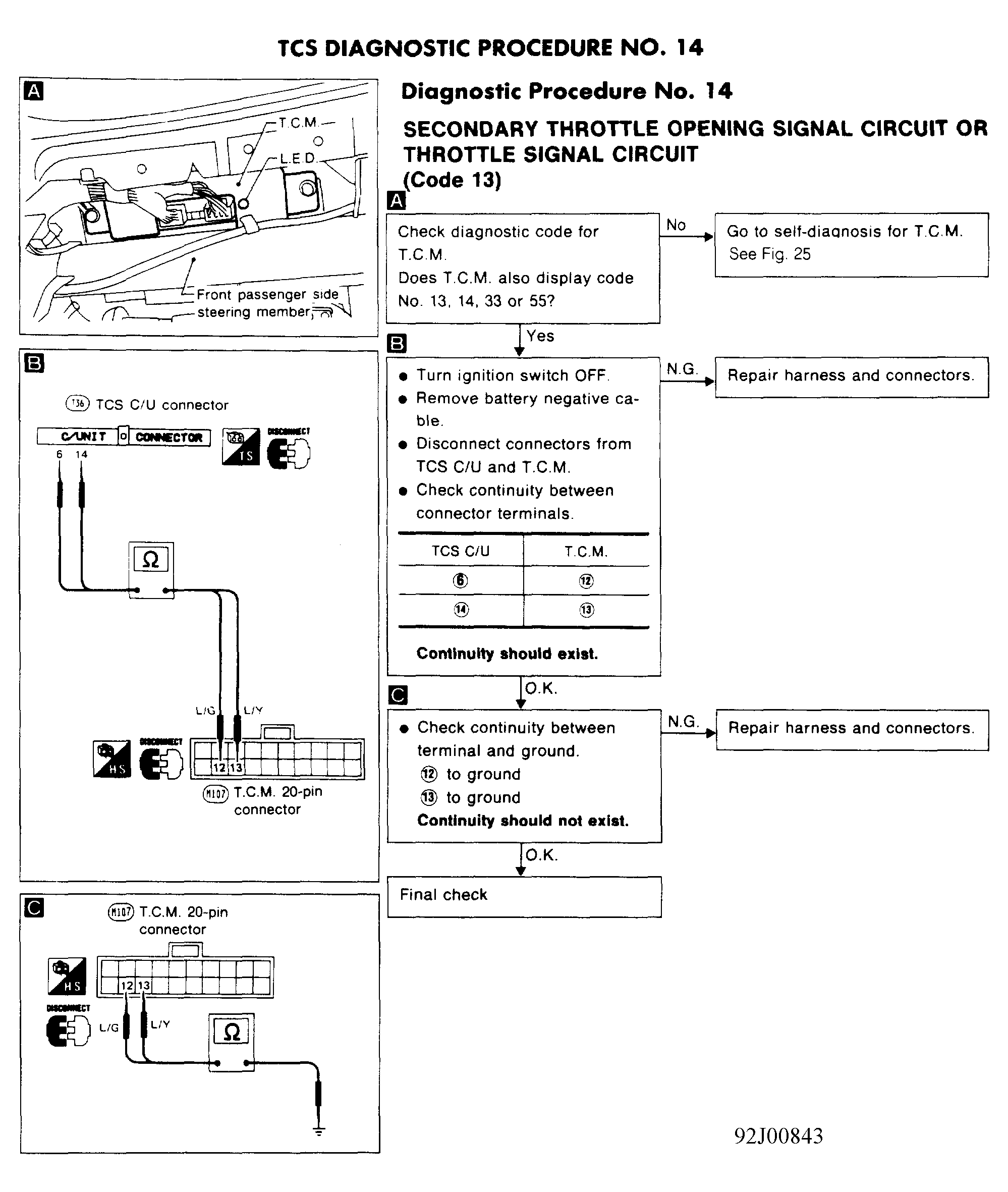

Fig 20: TCS Diagnostic Procedures No. 14

G92J00843

Courtesy of NISSAN MOTOR CO., U.S.A.

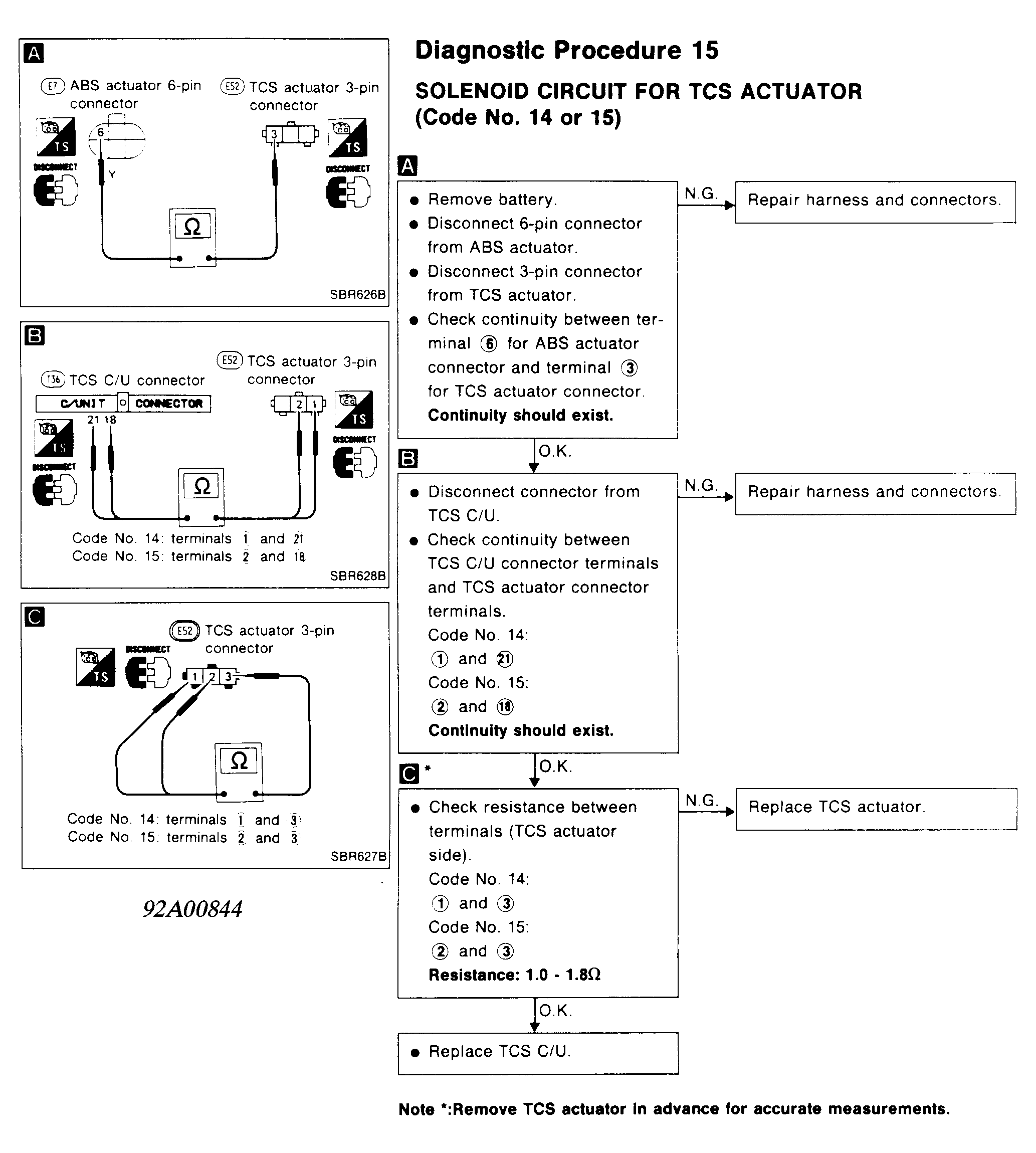

Fig 21: TCS Diagnostic Procedures No. 15

G92A00844

Courtesy of NISSAN MOTOR CO., U.S.A.

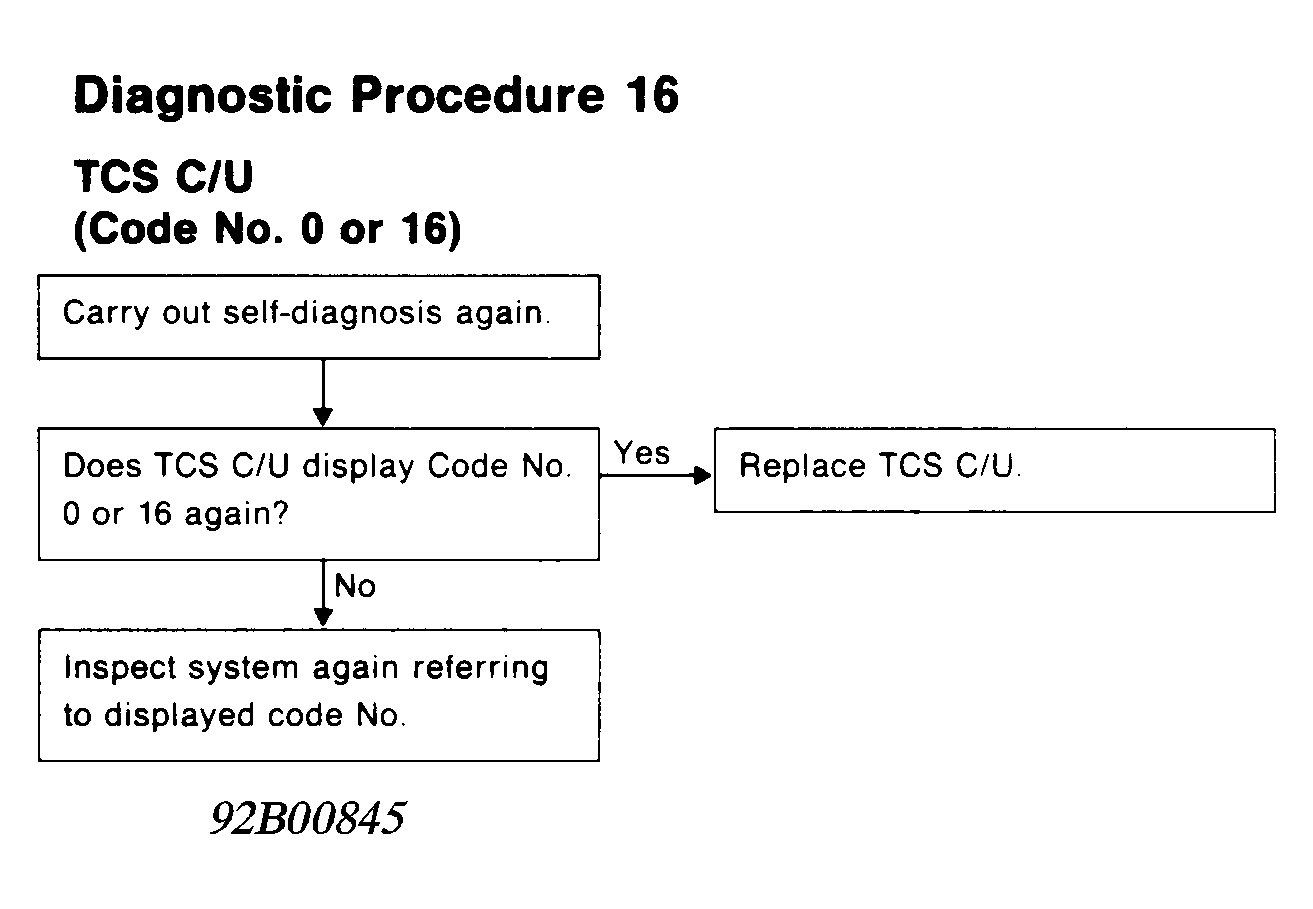

Fig 22: TCS Diagnostic Procedures No. 16

G92B00845

Courtesy of NISSAN MOTOR CO., U.S.A.

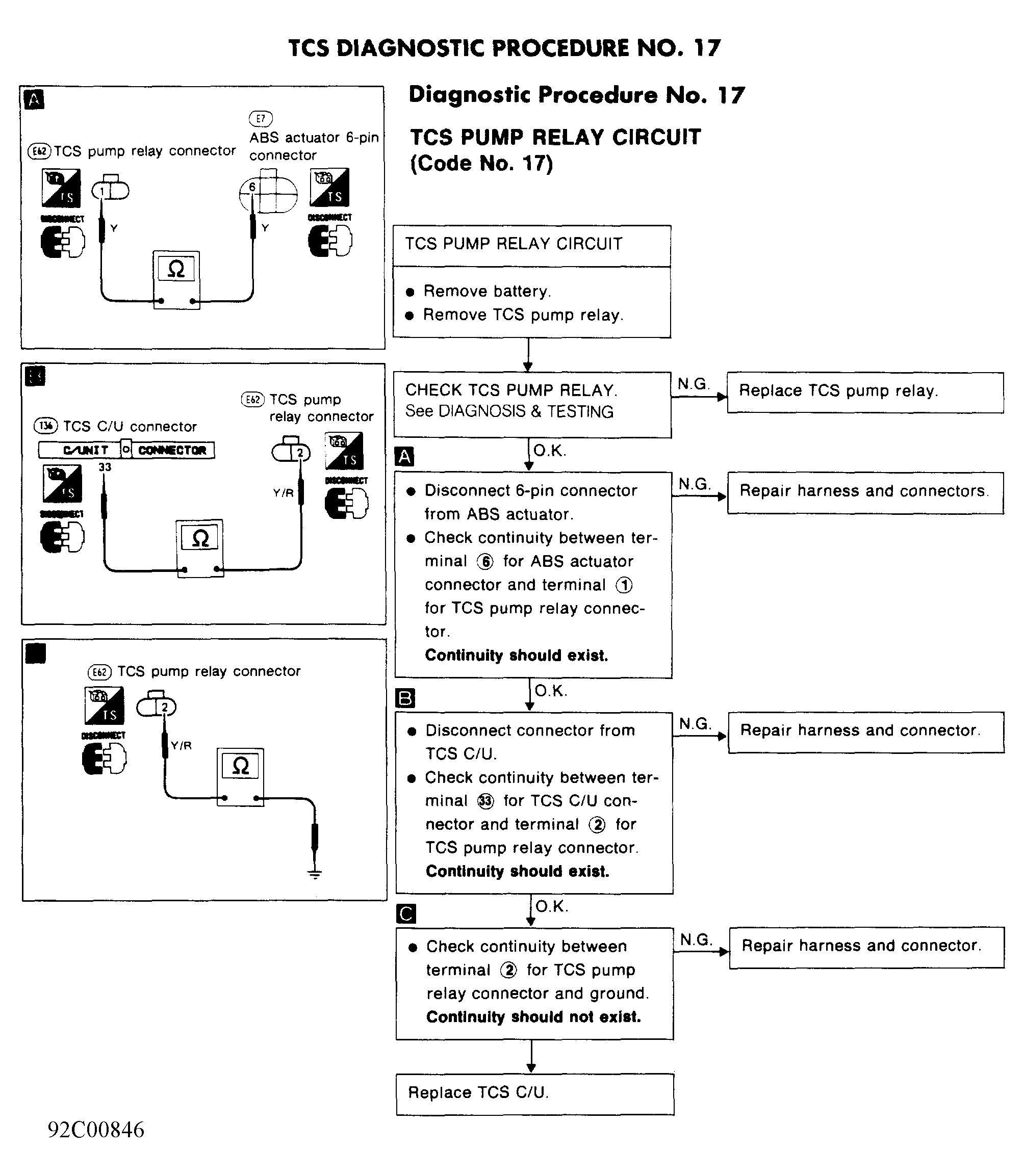

Fig 23: TCS Diagnostic Procedures No. 17

G92C00846

Courtesy of NISSAN MOTOR CO., U.S.A.

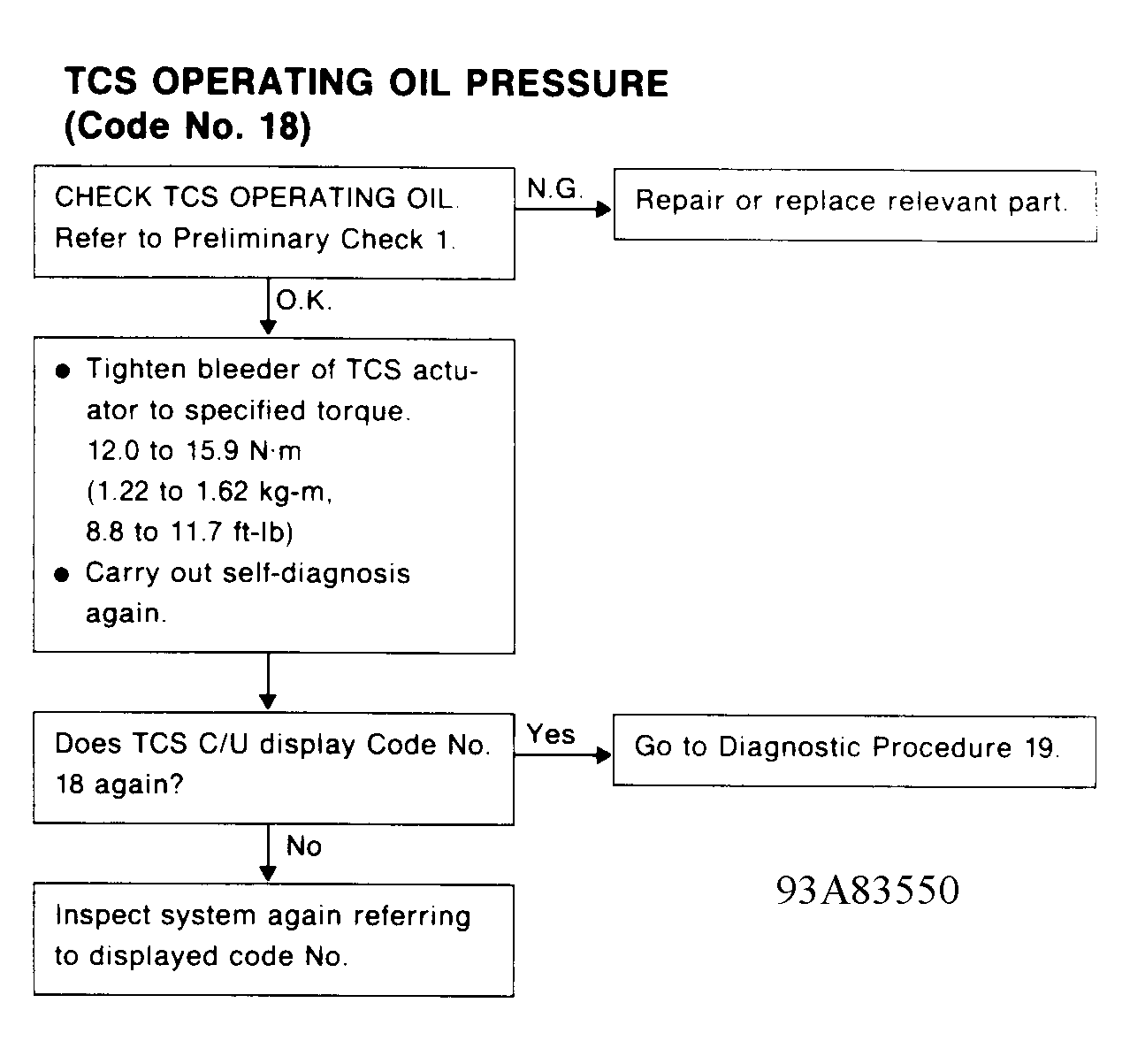

Fig 24: TCS Diagnostic Procedures No. 18

G93A83550

Courtesy of NISSAN MOTOR CO., U.S.A.

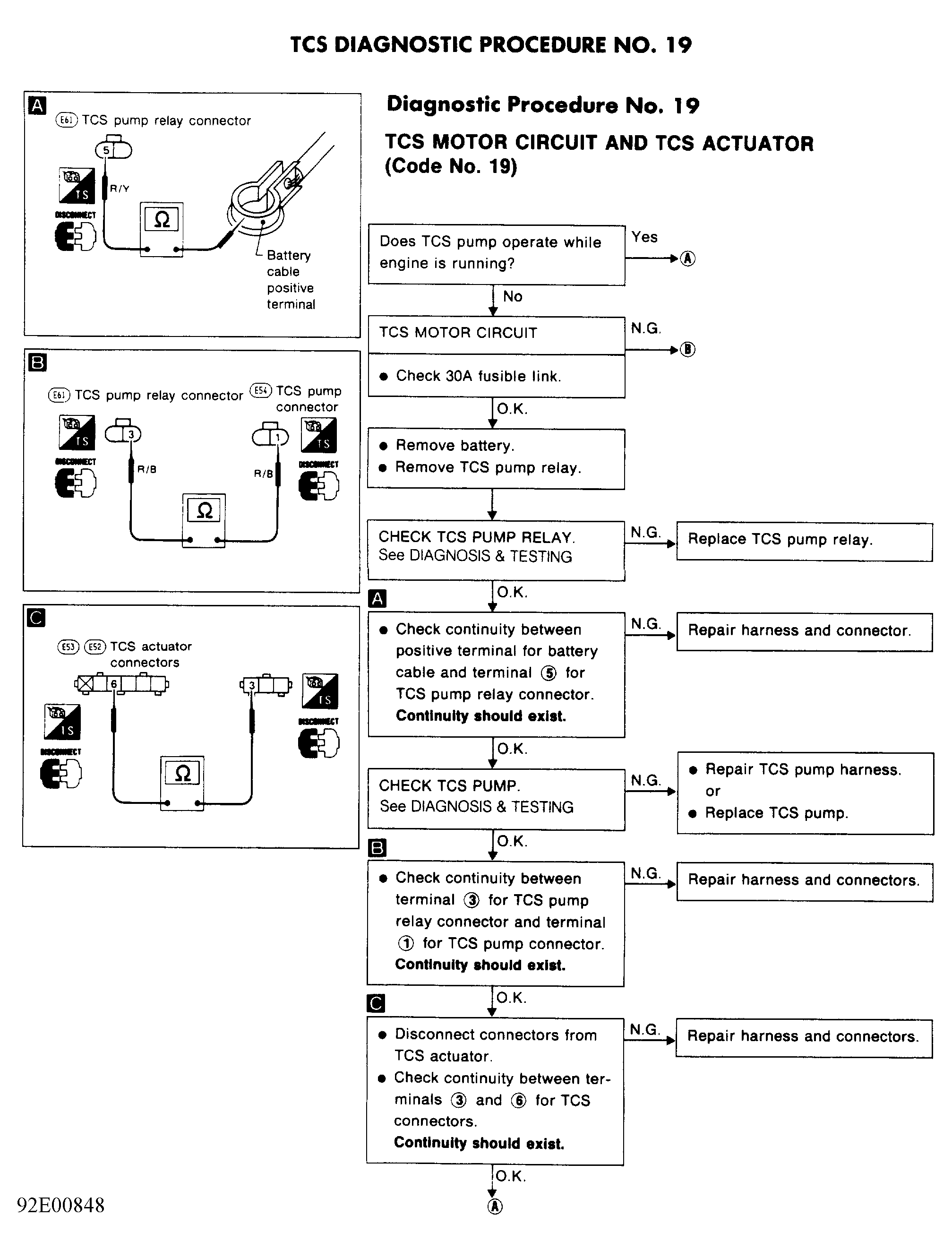

Fig 25: TCS Diagnostic Procedures No. 19 (1 Of 3)

G92E00848

Courtesy of NISSAN MOTOR CO., U.S.A.

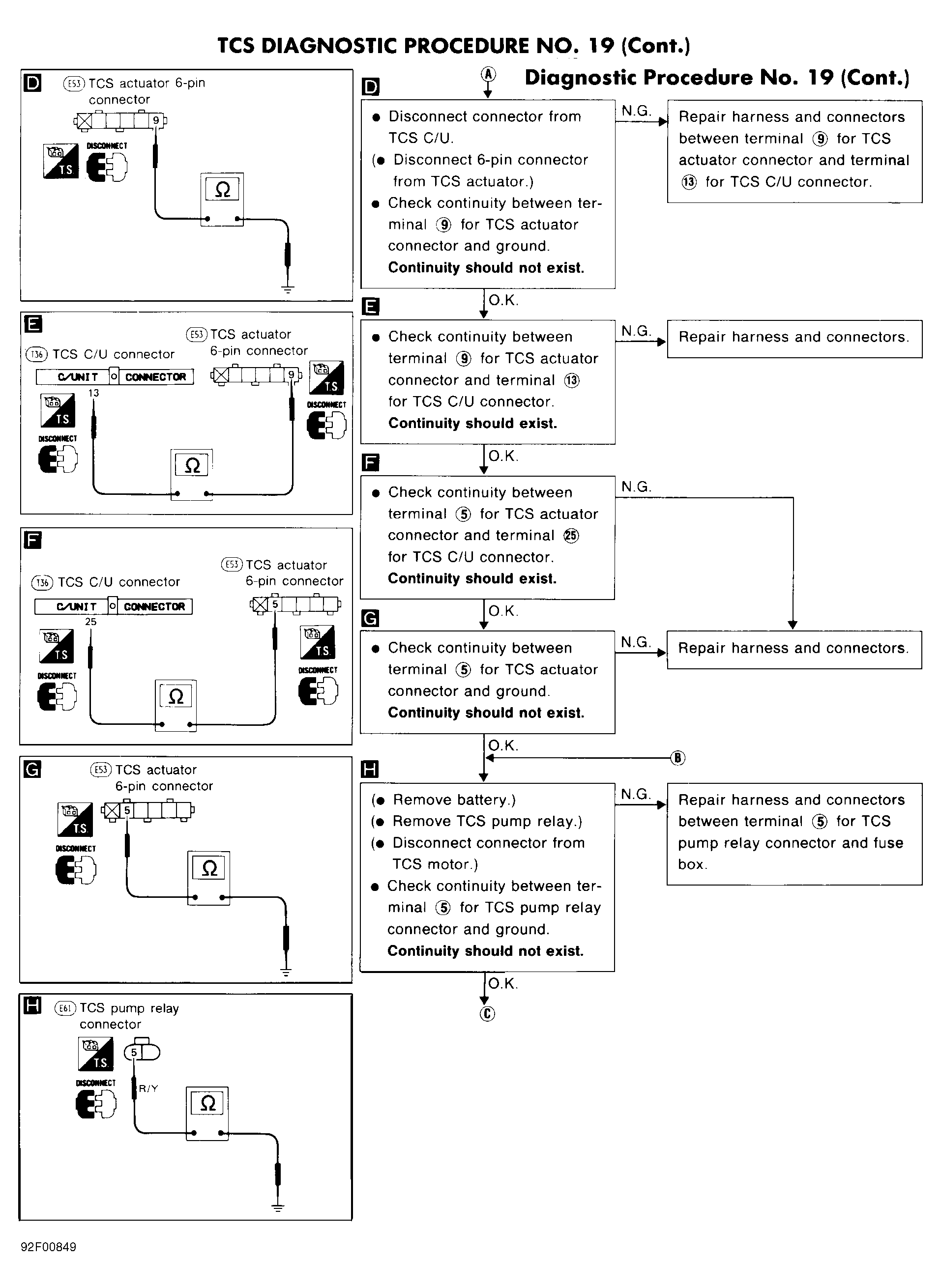

Fig 26: TCS Diagnostic Procedures No. 19 (2 Of 3)

G92F00849

Courtesy of NISSAN MOTOR CO., U.S.A.

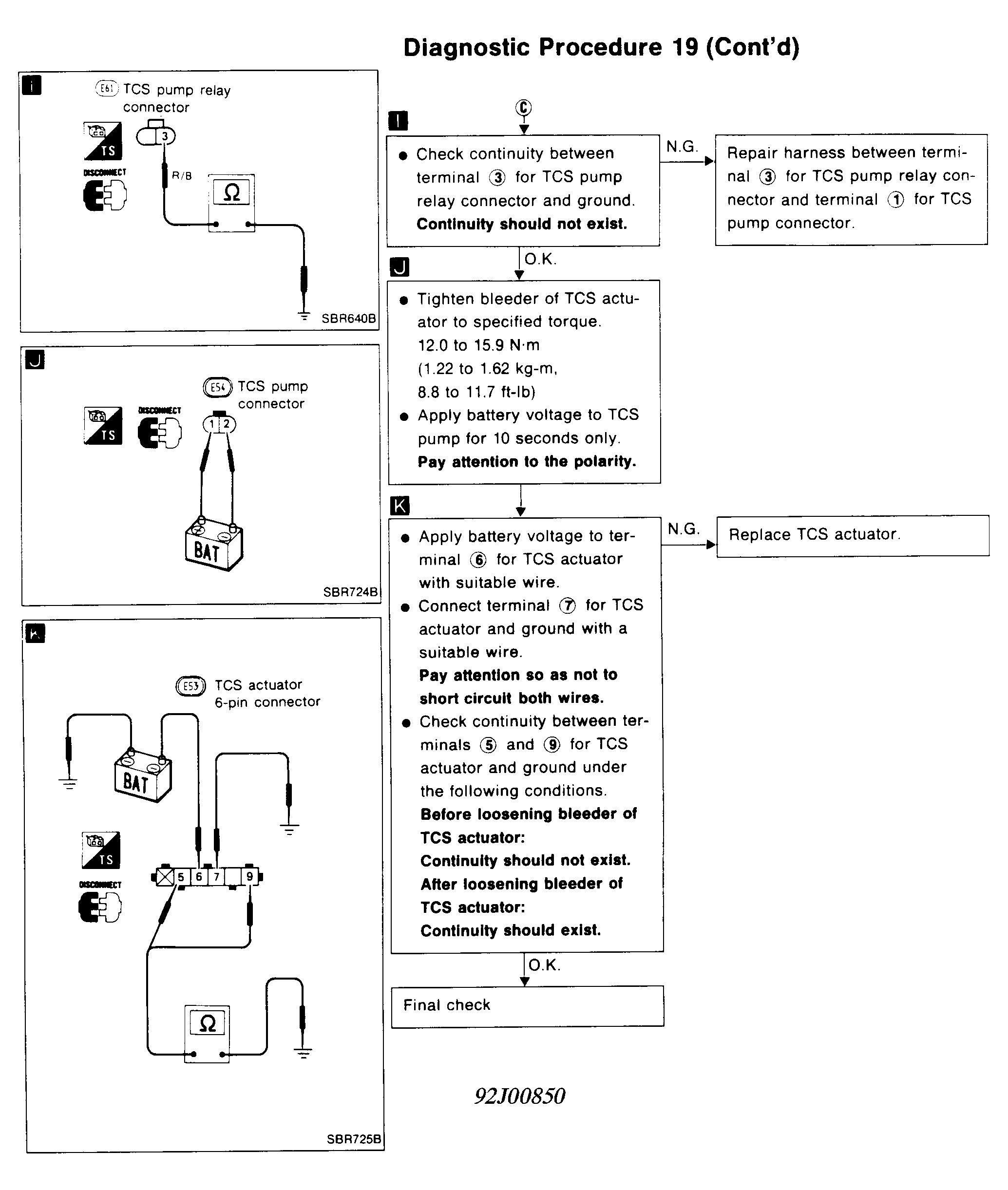

Fig 27: TCS Diagnostic Procedures No. 19 (3 Of 3)

G92J00850

Courtesy of NISSAN MOTOR CO., U.S.A.

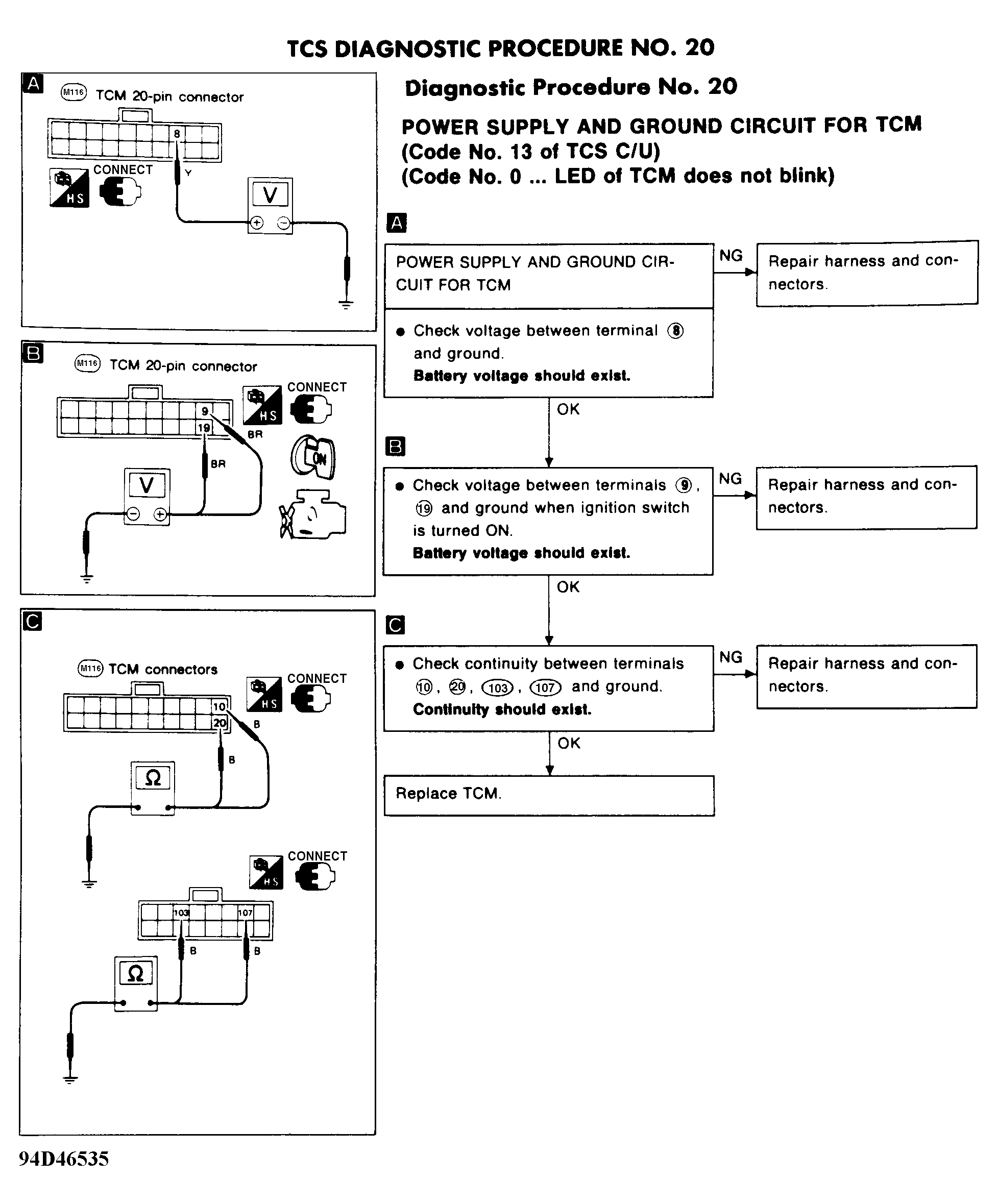

Fig 28: TCS Diagnostic Procedures No. 20

G94D46535

Courtesy of NISSAN MOTOR CO., U.S.A.

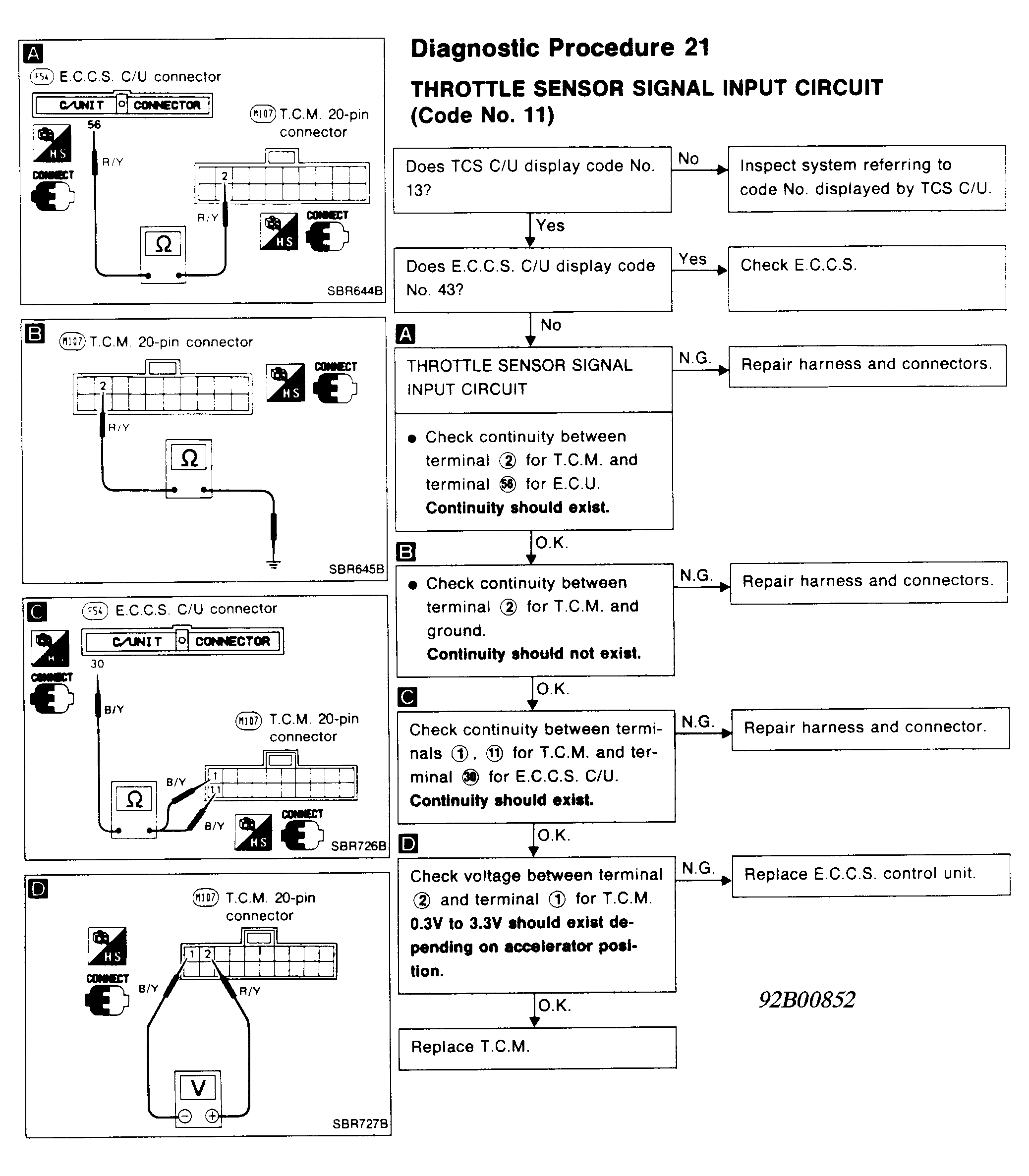

Fig 29: TCS Diagnostic Procedures No. 21

G92B00852

Courtesy of NISSAN MOTOR CO., U.S.A.

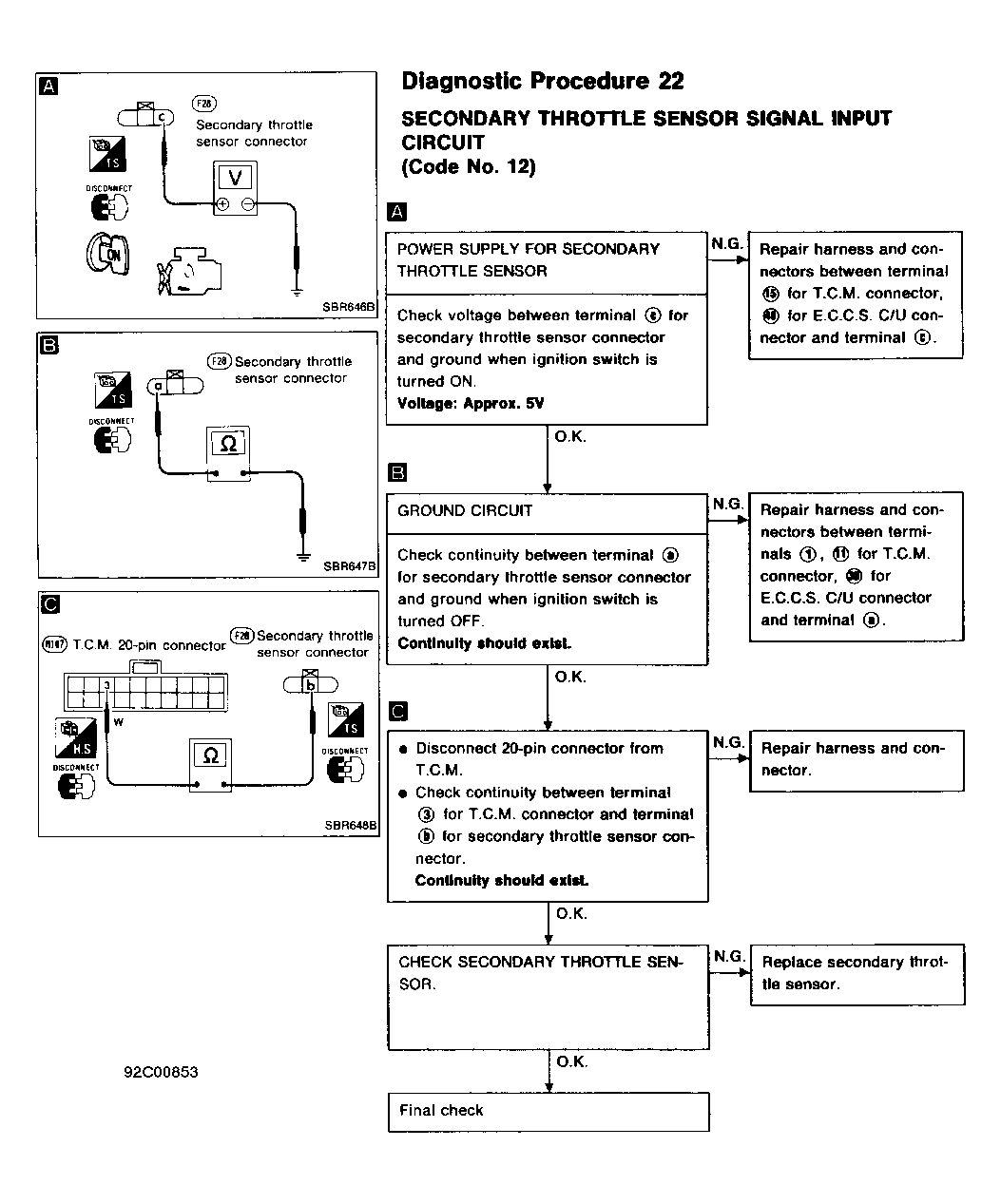

Fig 30: TCS Diagnostic Procedures No. 22

G92C00853

Courtesy of NISSAN MOTOR CO., U.S.A.

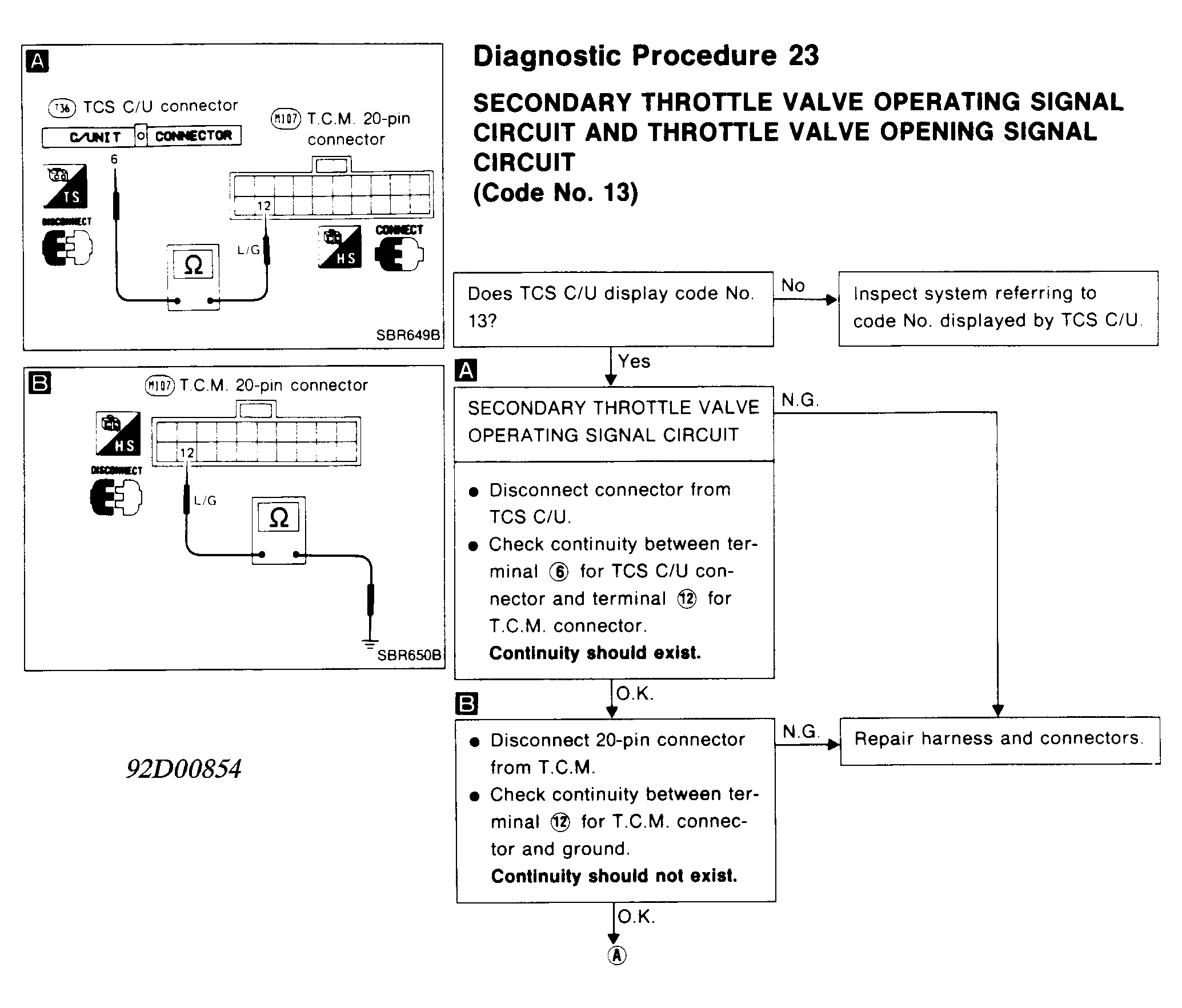

Fig 31: TCS Diagnostic Procedures No. 23 (1 Of 2)

G92D00854

Courtesy of NISSAN MOTOR CO., U.S.A.

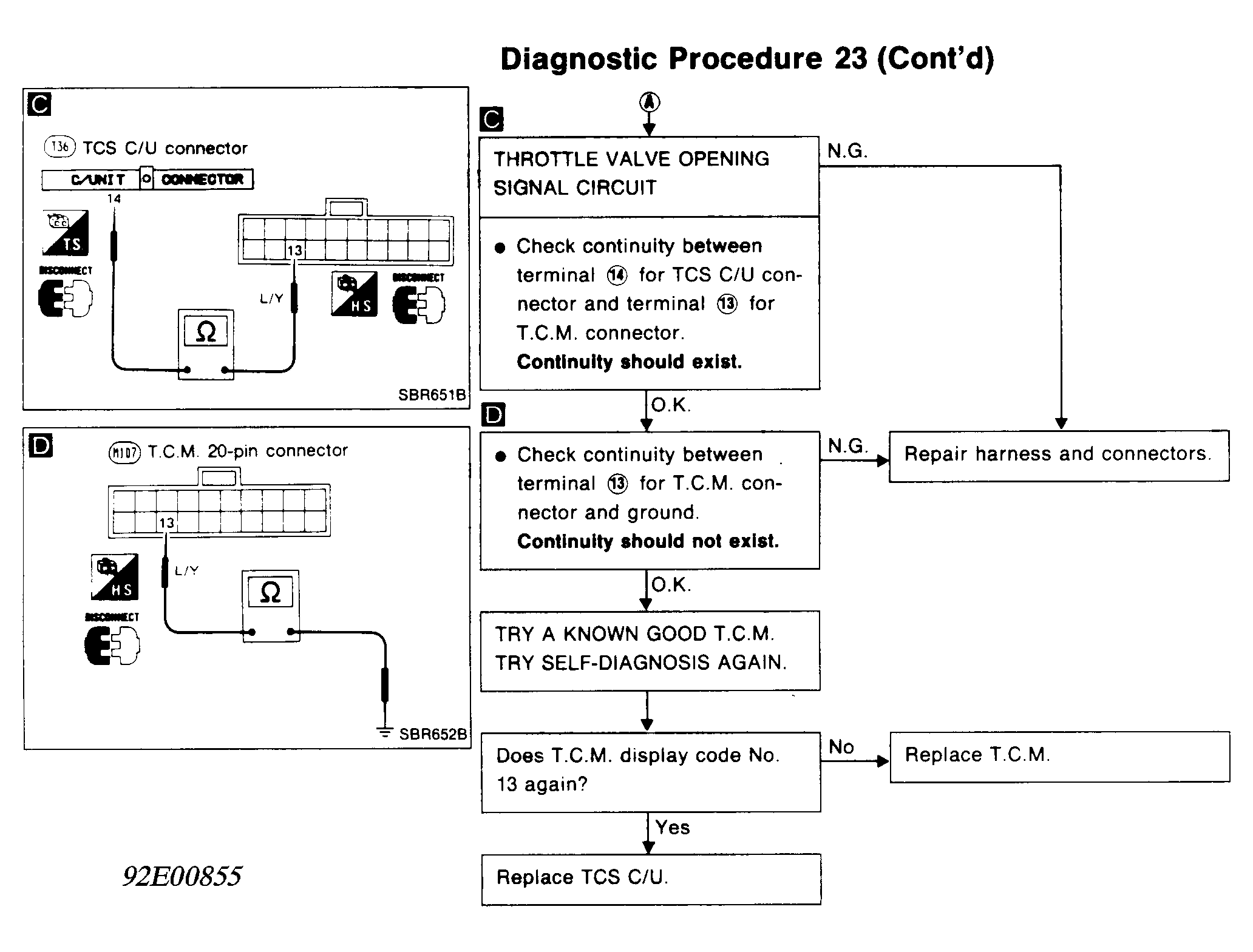

Fig 32: TCS Diagnostic Procedures No. 23 (2 Of 2)

G92E00855

Courtesy of NISSAN MOTOR CO., U.S.A.

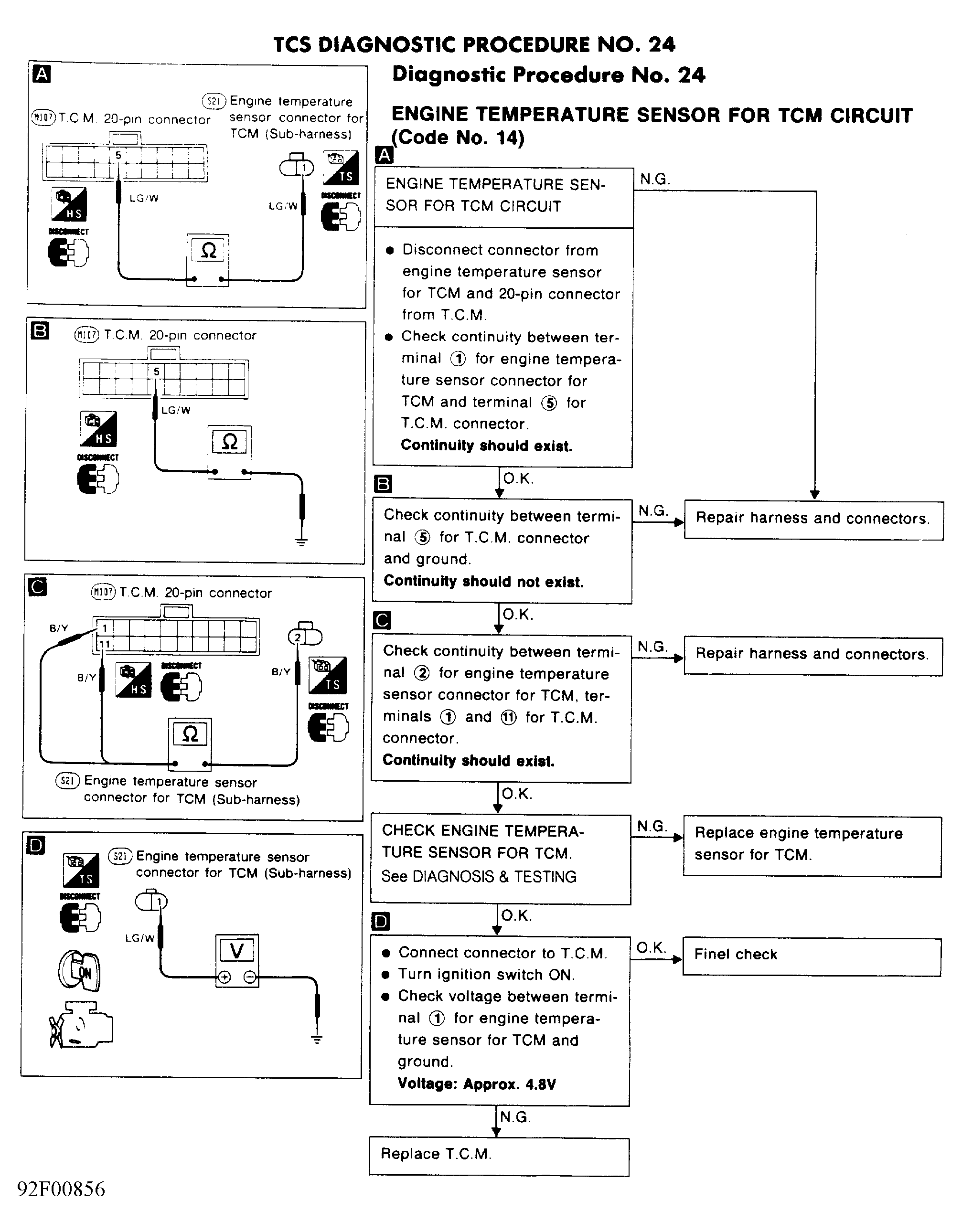

Fig 33: TCS Diagnostic Procedures No. 24

G92F00856

Courtesy of NISSAN MOTOR CO., U.S.A.

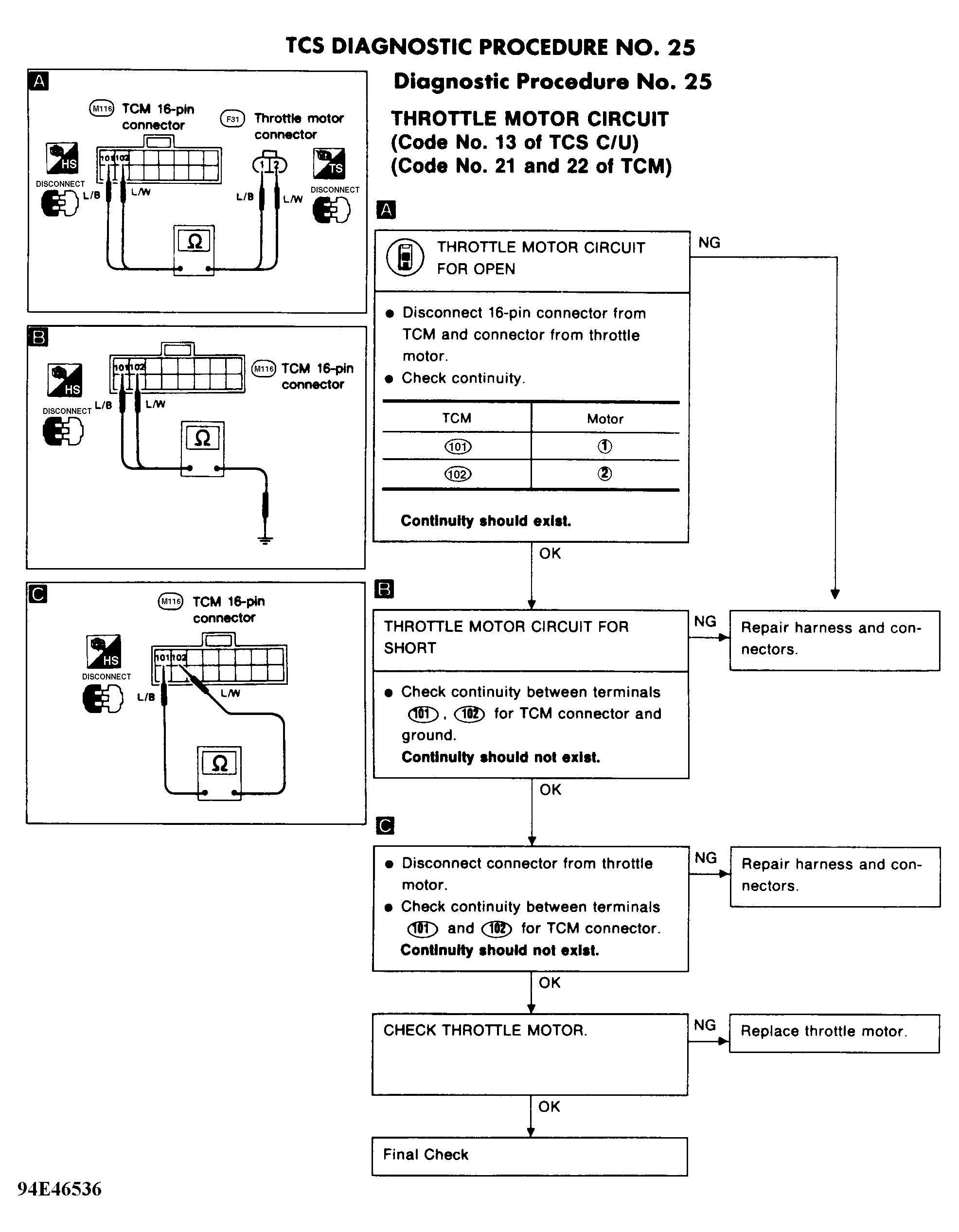

Fig 34: TCS Diagnostic Procedures No. 25

G94E46536

Courtesy of NISSAN MOTOR CO., U.S.A.

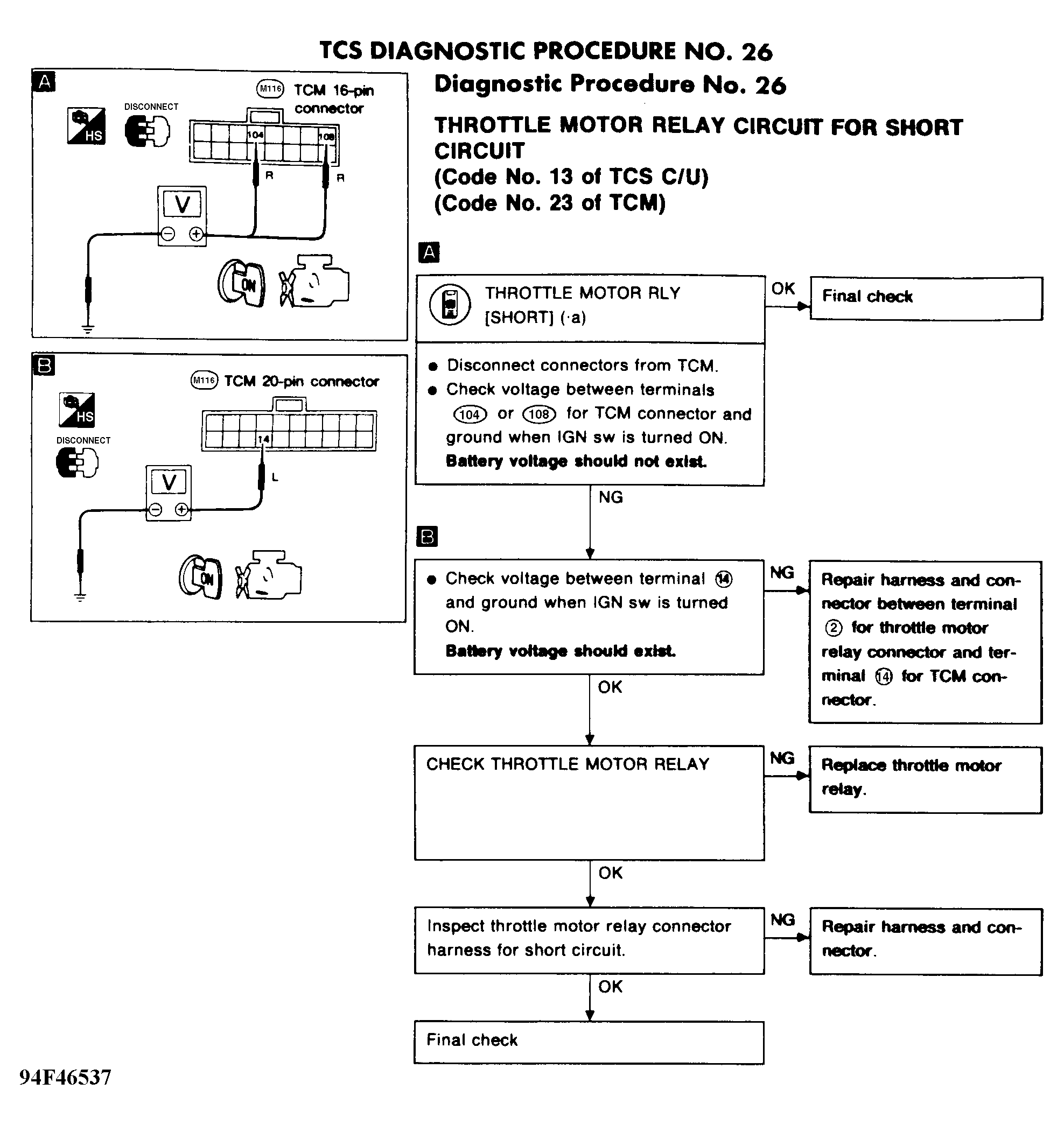

Fig 35: TCS Diagnostic Procedures No. 26

G94F46537

Courtesy of NISSAN MOTOR CO., U.S.A.

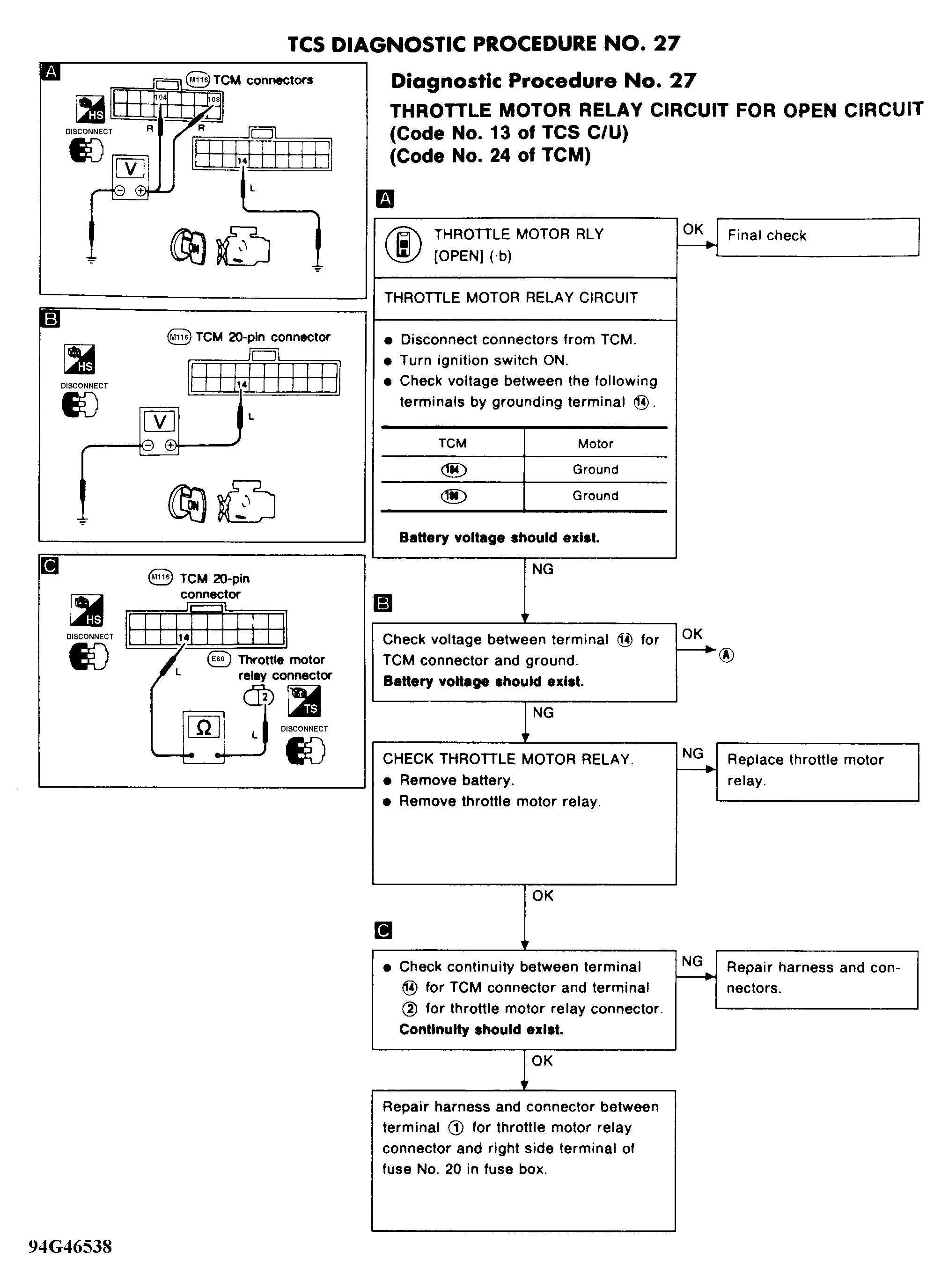

Fig 36: TCS Diagnostic Procedures No. 27 (1 Of 2)

G94G46538

Courtesy of NISSAN MOTOR CO., U.S.A.

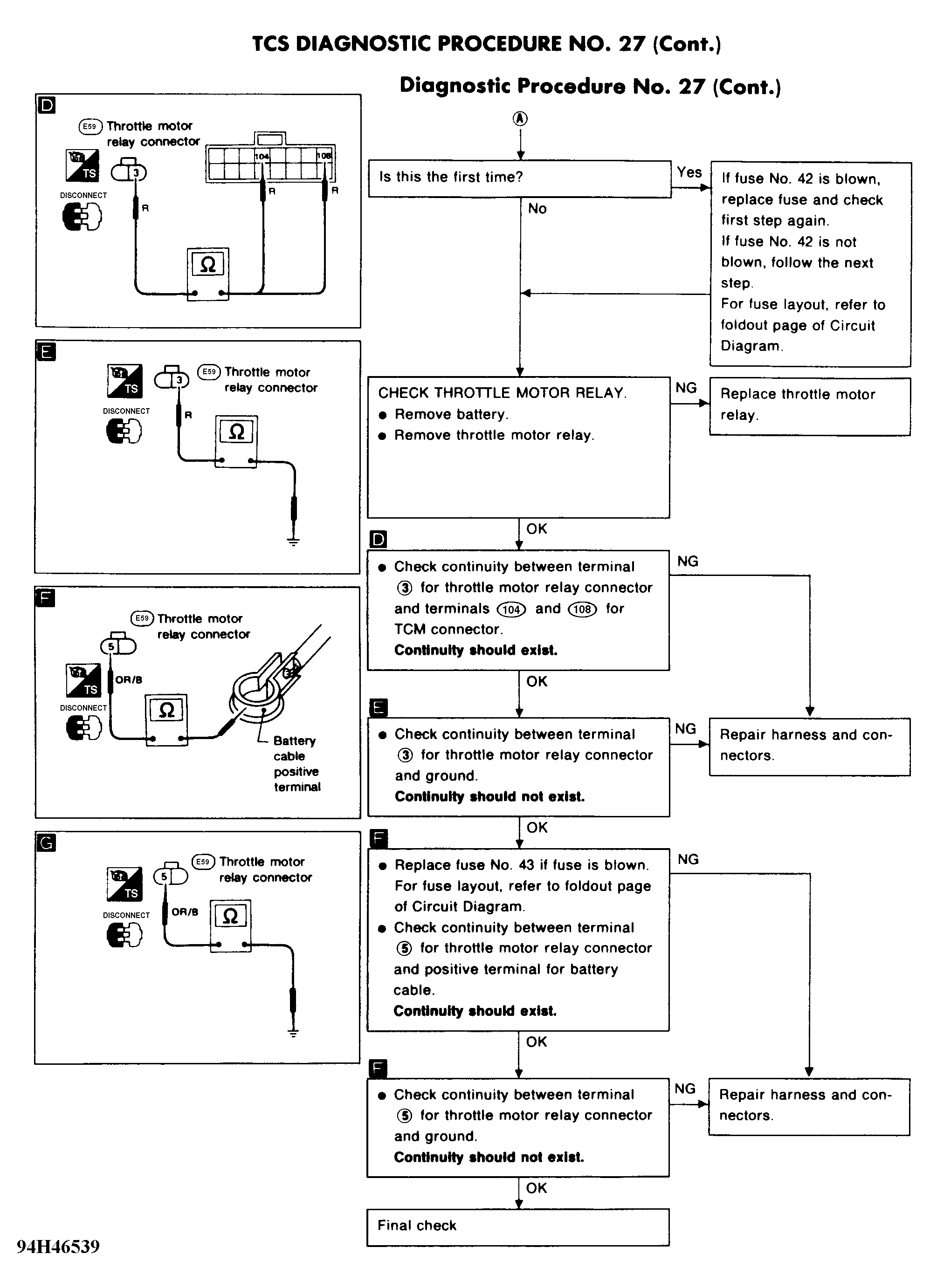

Fig 37: TCS Diagnostic Procedures No. 27 (2 Of 2)

G94H46539

Courtesy of NISSAN MOTOR CO., U.S.A.

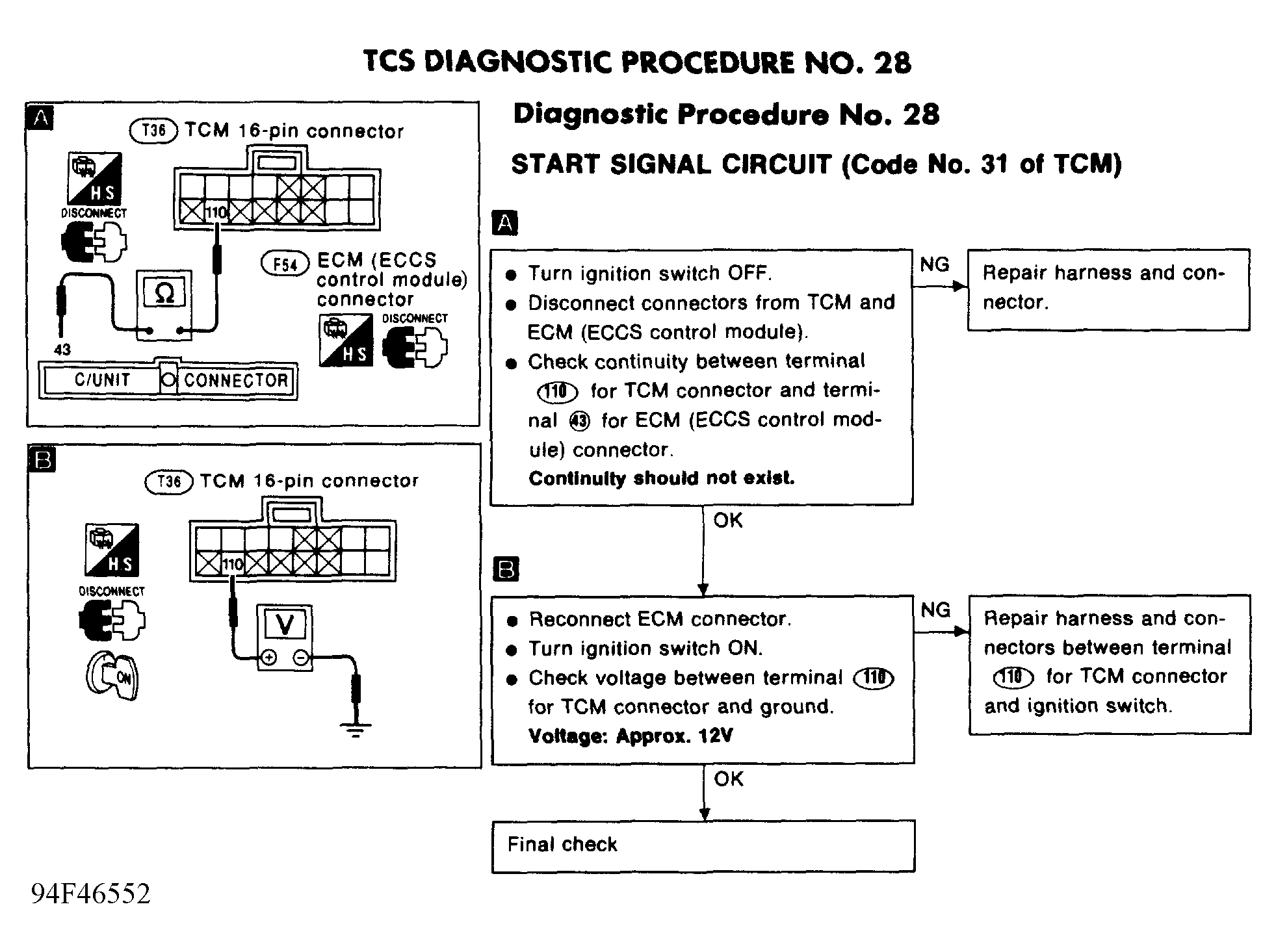

Fig 38: TCS Diagnostic Procedures No. 28

G94F46552

Courtesy of NISSAN MOTOR CO., U.S.A.

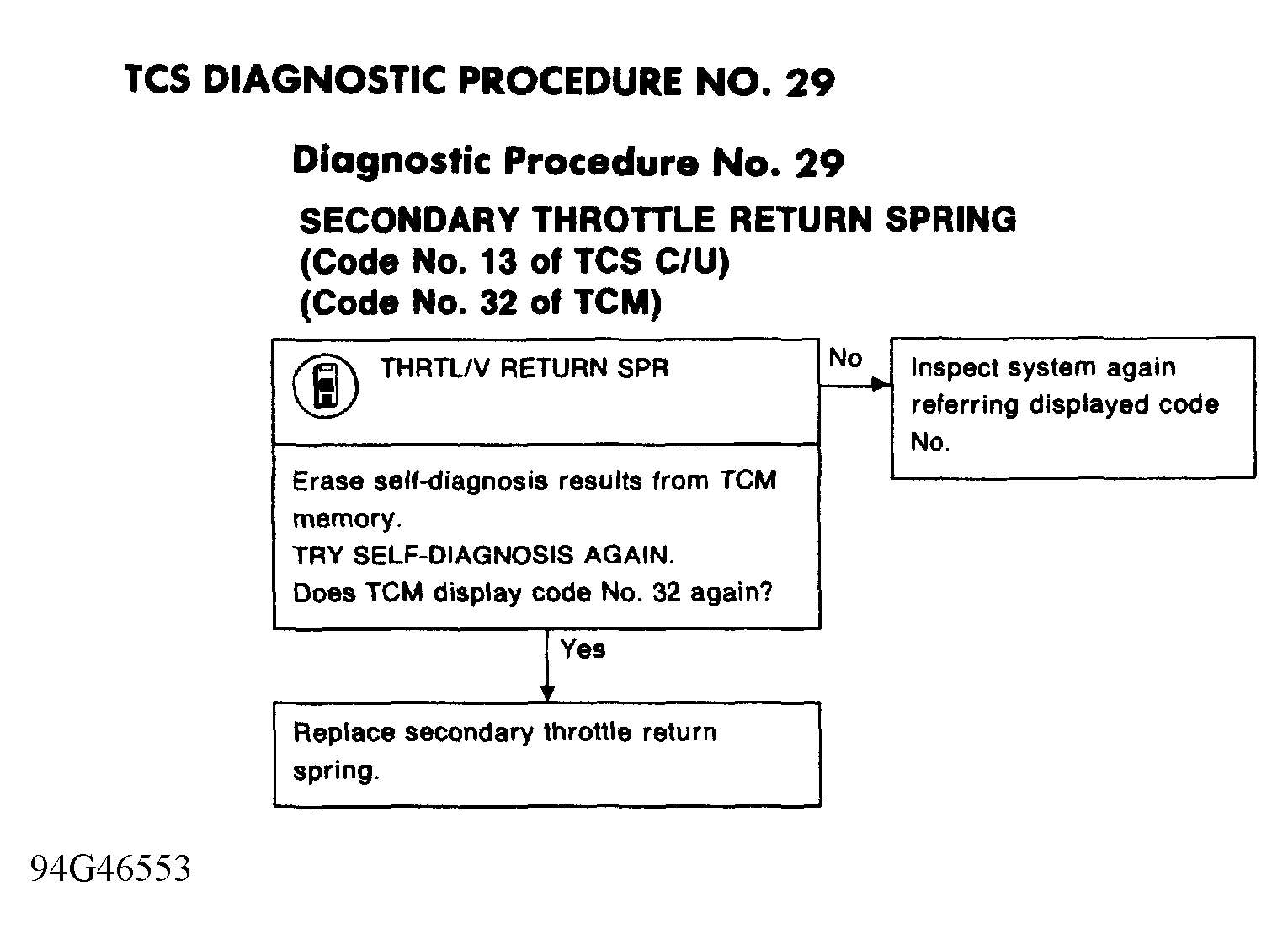

Fig 39: TCS Diagnostic Procedures No. 29

G94G46553

Courtesy of NISSAN MOTOR CO., U.S.A.

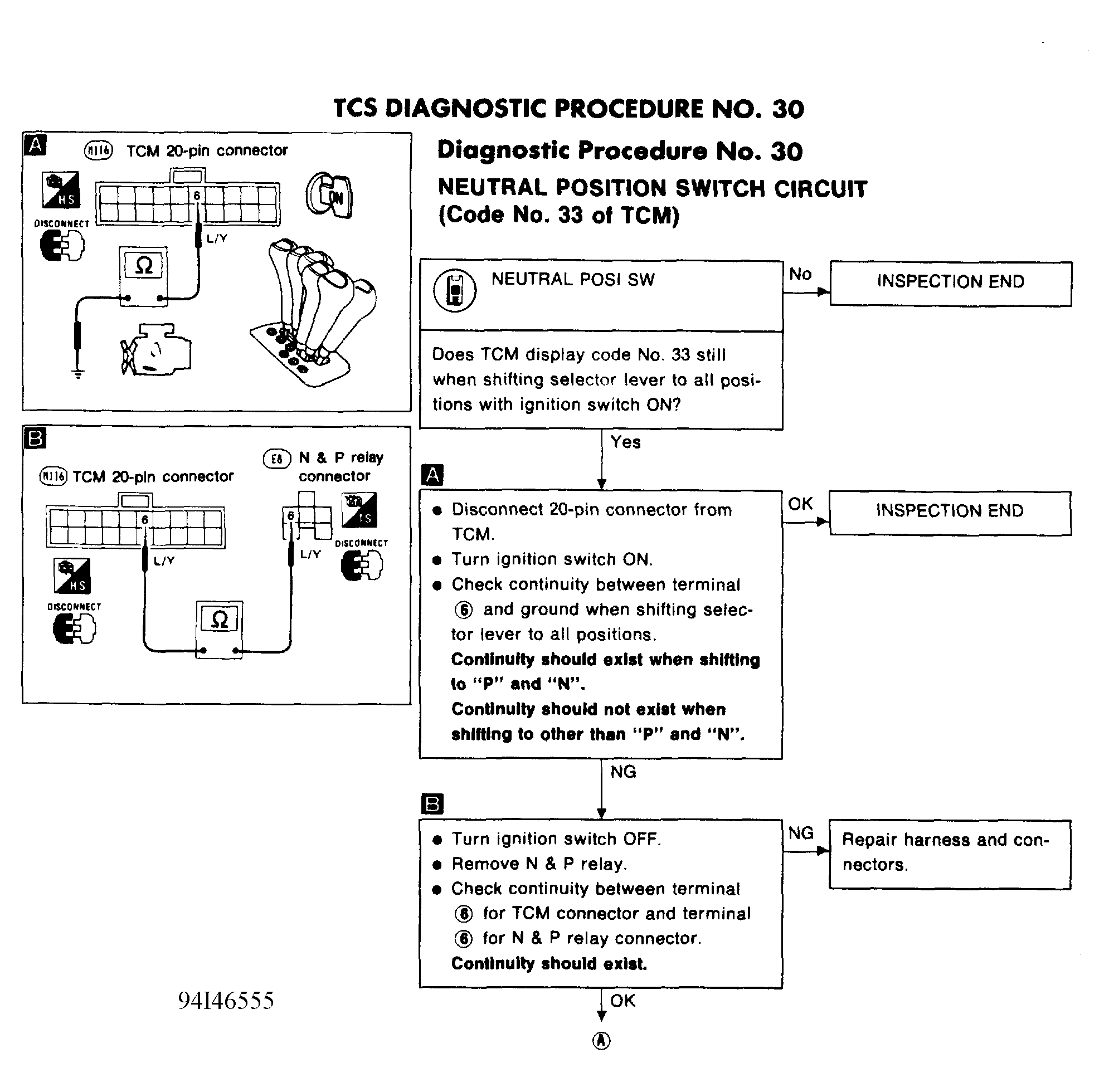

Fig 40: TCS Diagnostic Procedures No. 30 (1 Of 2)

G94I46555

Courtesy of NISSAN MOTOR CO., U.S.A.

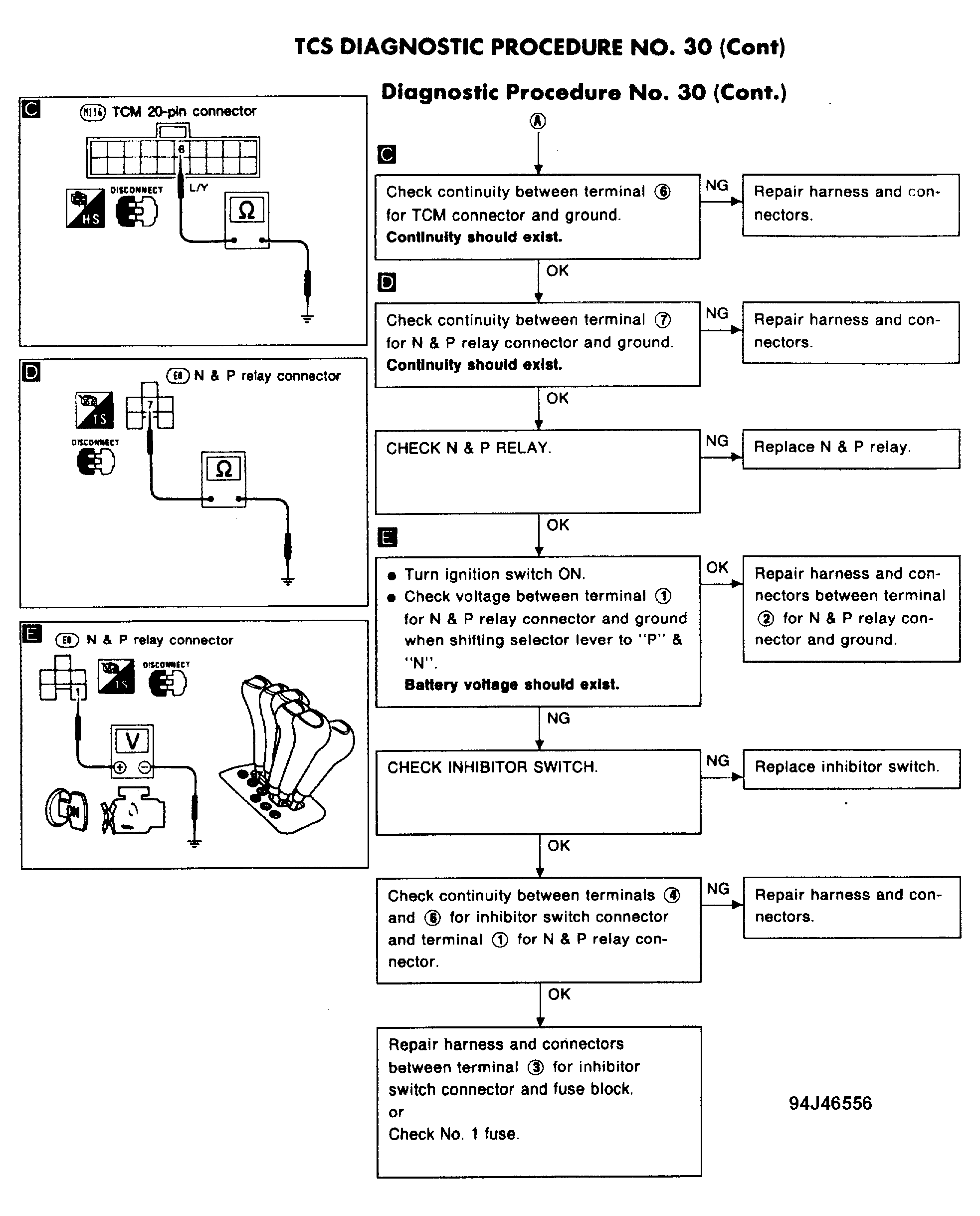

Fig 41: TCS Diagnostic Procedures No. 30 (2 Of 2)

G94J46556

Courtesy of NISSAN MOTOR CO., U.S.A.

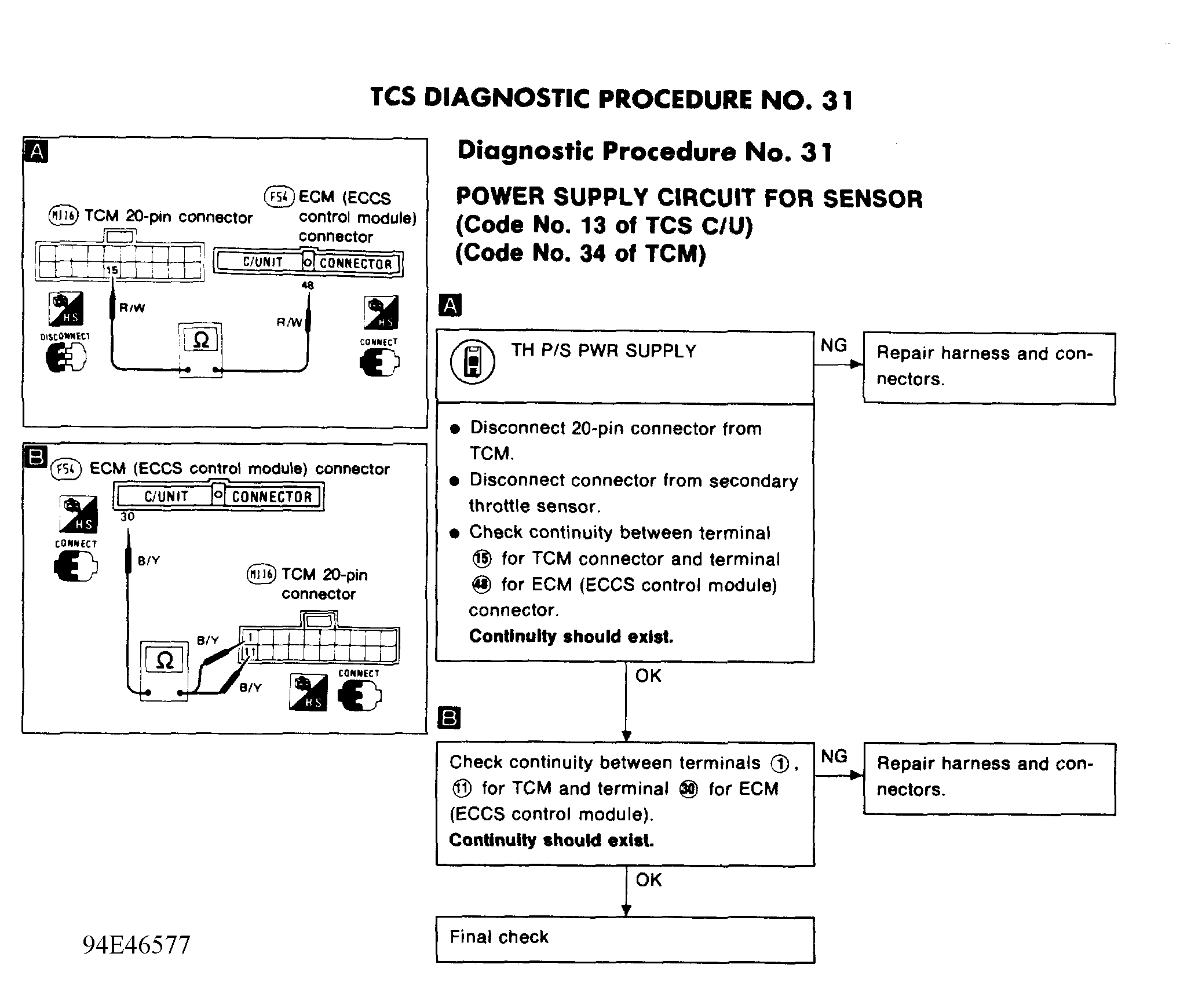

Fig 42: TCS Diagnostic Procedures No. 31

G94E46577

Courtesy of NISSAN MOTOR CO., U.S.A.
