Repair and Diagnosis: Electrical: Starter: Overhaul

1. Use illustration for exploded view of starter. See Fig 1 or 5 . When assembling starter, place high temperature grease on rear cover, gear case, frictional pinion surface, moving portion of shift lever and solenoid plunger.
2. Q45 has no end play requirements.

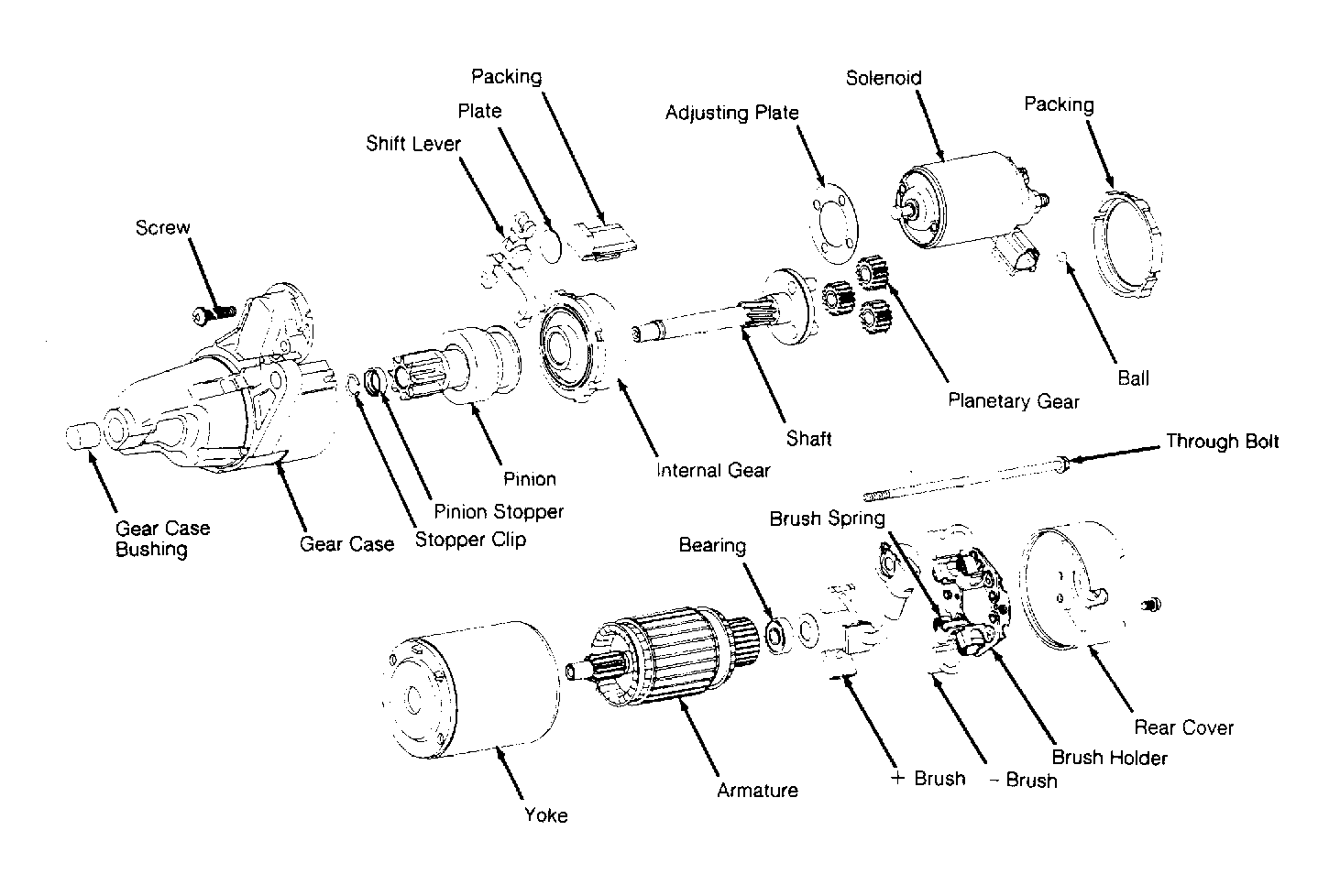

Fig 1: Exploded View Of Mitsubishi Starter (Q45)

Courtesy of NISSAN MOTOR CO., U.S.A.
